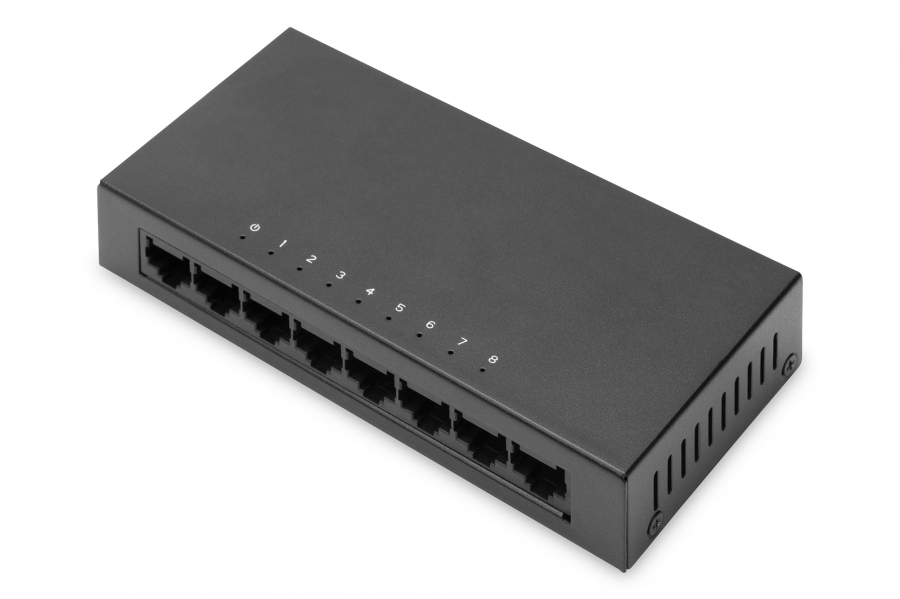

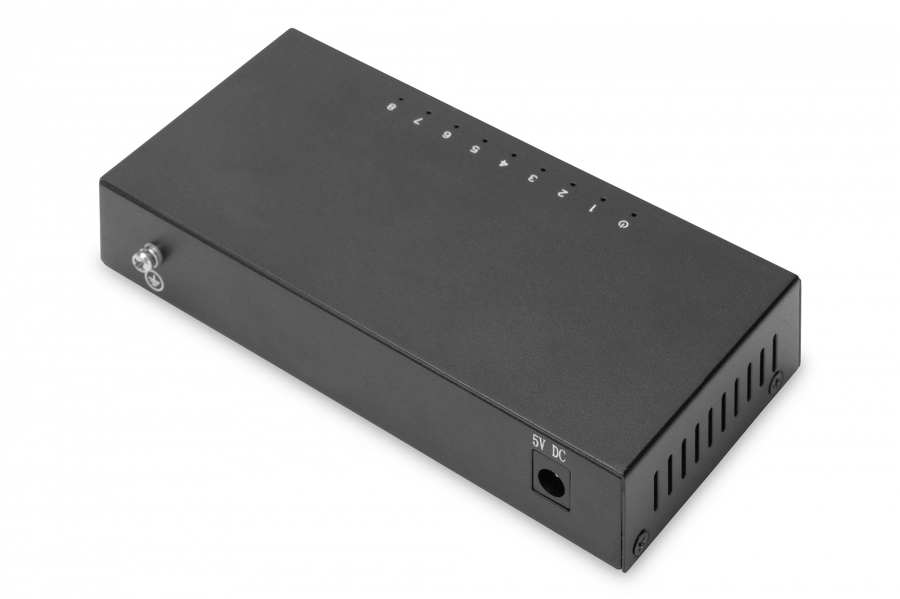

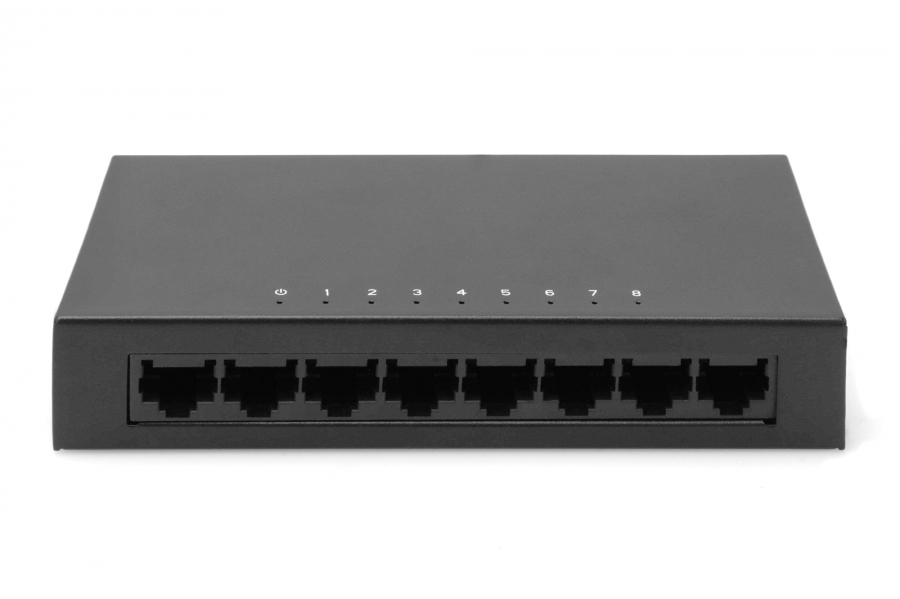

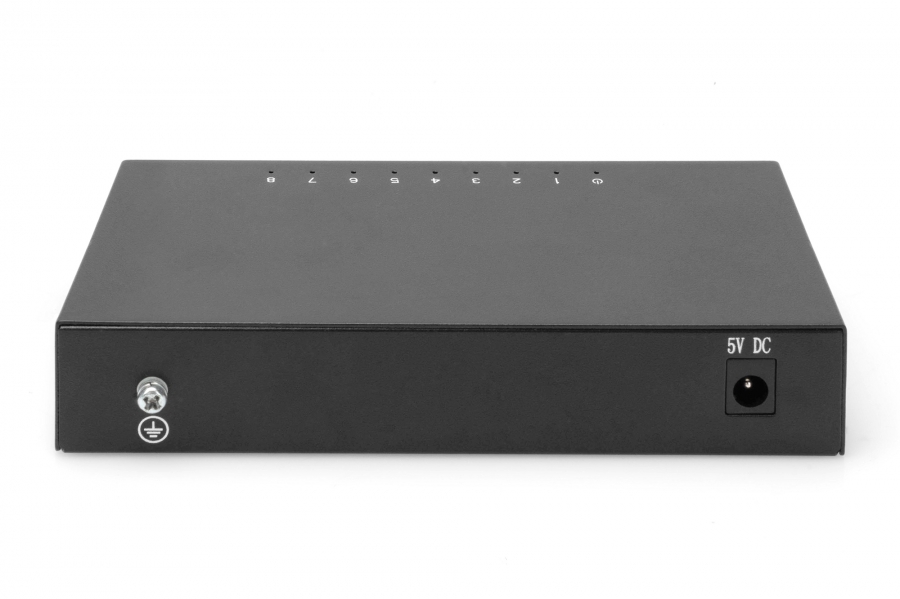

Digitus 8-Port Switch, 10/100 Mbps Fast Ethernet, Unmanaged, Metall Housing

Digitus

DN-80069

New

Digitus 8 Port RJ 45 FE Switch 8 x 10/ 100 Mbit/s

8-port 10/100Mbps unmanage Fast Ethernet Switch, Auto-Negotiation RJ45 ports, All ports support Auto MDI/MDIX function

8 x RJ45 ports 10/100 Mbps
All ports support 10/100 Mbps bandwidth
Network standards: IEEE 802.3i, IEEE 802.3u, IEEE802.3x, IEEE802.3az
Full-duplex flow control IEEE802.3x
Store and forward mode operates
Auto-negotiation / Auto-MDI/MDI-X
No configuration necessary
LED indicators for monitoring power, link/activity

The 8-Port 10/100 Mbps Networkswitch from DIGITUS® provides 5 x RJ45 ports with 10/100Mbps bandwidth each. Easily expand the existing network. No configuration is required on the switch itself; thanks to auto-negotiation and Auto MDI/MDI-X, cables and speeds are also automatically detected. The switch can be used as a desktop variant or mounted on a wall. Thanks to the external power supply, the switch does not need a fan at all. Ideal for expanding / setting up small home or company network.

Number of ports: 8
Ethernet speed: Fast Ethernet
Industrial usage: false
Managed: false
Outdoorsuitable: false
PoE (Power over Ethernet): false
Protection against vanadlism: false
VLAN: false
Number of ports: 8 x 10/100 Mbps
Network standards: IEEE 802.3i, IEEE 802.3u, IEEE802.3x, IEEE802.3az
Auto-negotiation: Auto MDI/MDIX
IEEE802.3x full-duplex flow control
Transfer method: Store-and-forward
Forwarding capacity: 745 Kpps
LED indicators: 10/100Mbps link
Jumbo frames: 1552 Byte
Buffer memory: 448 kbit
MAC addresses: 1K
Fanless design
Operating voltage: 5 V DC / 500 mA
Power consumption: 1,4 W max.
Power supply Power supply: 100 - 240 V AC, 50/60 Hz,
Plug type power supply: safety plug type-C
Plug type device side: DC plug 5.5 mm/2.1 mm
Operating temperature: 0°C to 40°C
Operating humidity: 10% - 90% RH (non-condensing)
Storage temperature: -40°C to 70°C
Fanless design (air flow cooling)
Dimensions: W 140 x D 67 x H 26 mm
Weight: 635 g

Package content:
1 x 8-port Fast Ethernet Network Switch
1 x power supply
1 x Quick Start Guide

Platums(cm)15.6
Grums(cm)7.9
Augstums(cm)6.7
Svars(kg)0.393333
Tilpums(cm3)825.708
Izcelsmes valstsCN
