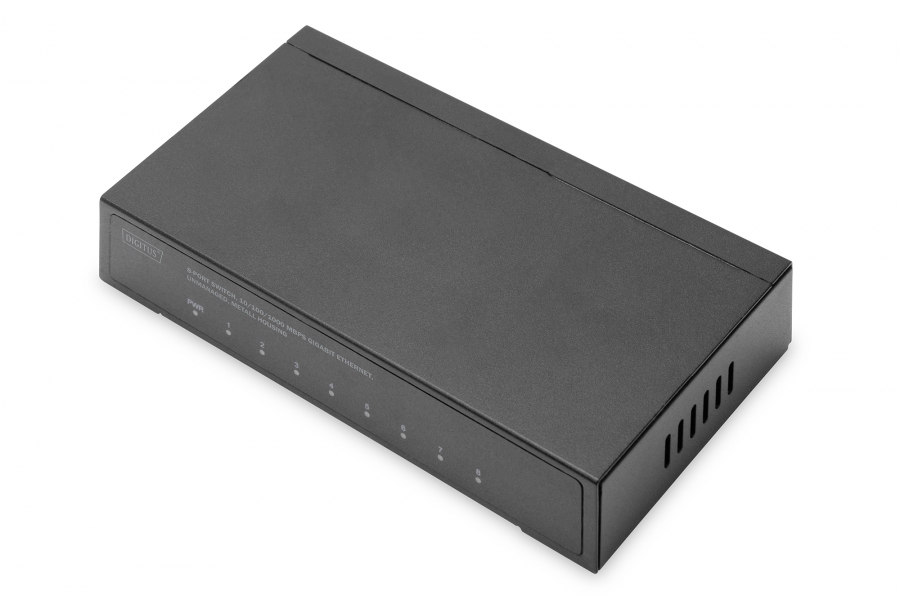

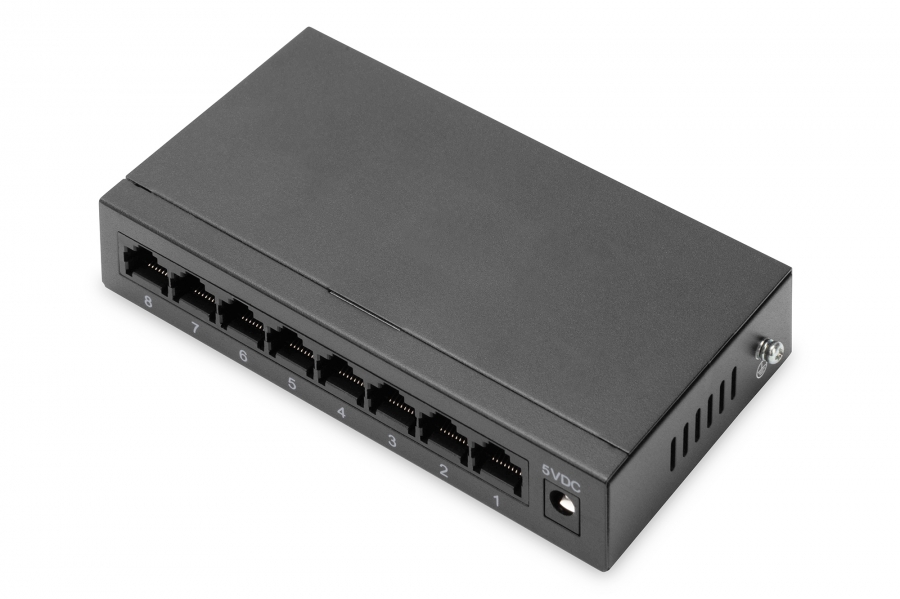

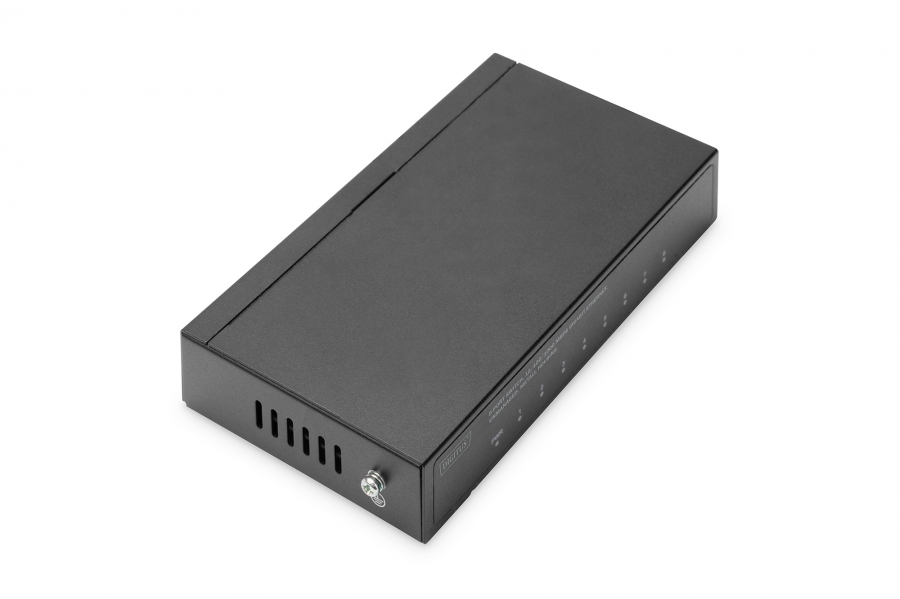

Digitus 8-Port Switch, 10/100/1000 Mbps Gigabit Ethernet, Unmanaged, Metall Housing

Digitus

DN-80066

New

Digitus 8 Port RJ 45 GE Switch 8 x 10/ 100 /1000 Mbit/s

8-port 10/100/1000Mbps unmanage Gigabit Ethernet Switch, Auto-Negotiation RJ45 ports, All ports support Auto MDI/MDIX function

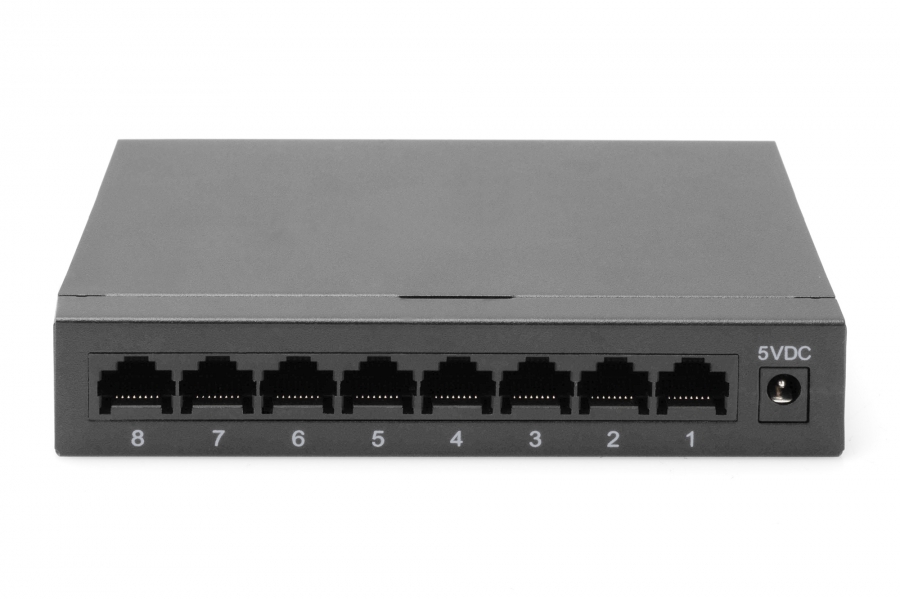

8 x RJ45 ports 10/100/1000 Mbps
All ports support 10/100/1000 Mbps bandwidth
Support desktop and Wall mount installation
Switching Capacity: 16Gbps
Network standards: IEEE 802.3i, IEEE 802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3az standards
Auto-negotiation / Auto-MDI/MDI-X
MAC address auto-learning and auto-aging

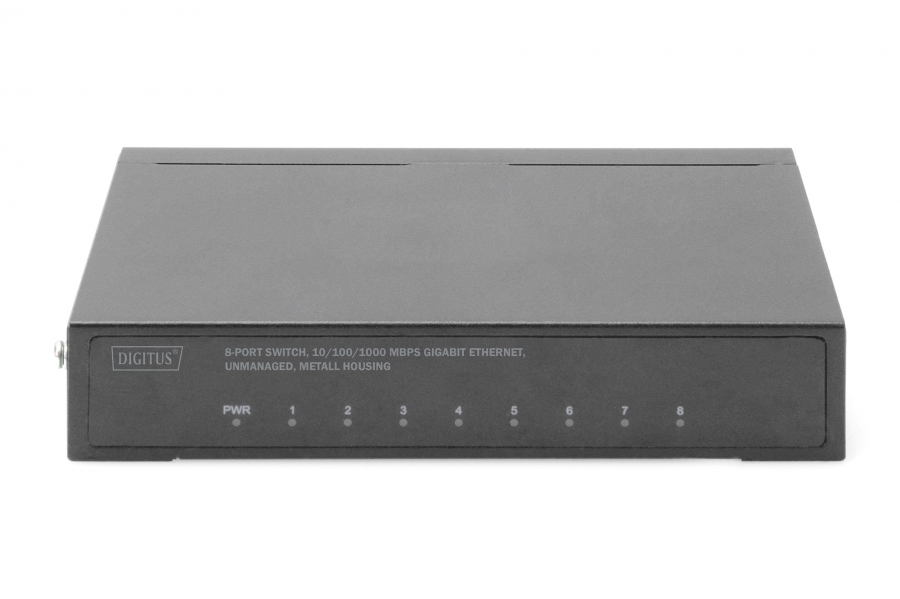

LED indicators for monitoring power, link/activity
Durable metal enclosure

This is a 8 port 10/100/1000Mbps Ethernet Switch, provides the seamless network connection. All ports support Auto MDI/MDIX function ,with 8 10/100/1000Mbps Auto-Negotiation RJ45 ports. The Switch with a low-cost, easy-to-use, high performance upgrade your old network to a 1000Mbps network.
The switch is easy to install and use. It is suitable for expanding your home or office network. The LED on the front panel can dynamically display the operation status of the network.

Number of ports: 8
Ethernet speed: Gigabit
Industrial usage: false
Installation type: Desktop
Managed: false
Outdoorsuitable: false
PoE (Power over Ethernet): false
Protection against vanadlism: false
VLAN: false
Number of ports: 8 x 10/100/1000 Mbps
Network standards: IEEE802.3i, IEEE802.3u, IEEE802.3ab
Auto-negotiation: Auto MDI/MDIX
IEEE802.3x full-duplex flow control
Switching Capacity: 16Gbps
Mac address Table: 4K
Packet Forwarding Rate: 11.9Mpps
Packet Buffer: 1.5Mbit
Jumbo Frame 9216Byte
Transfer Method: Store and Forward
LED indicators: link, active , power on
Operating voltage: 5V DC / 1A
Power consumption: 3.1W max.
Power supply Power supply: 100 - 240 V AC, 50/60 Hz, 5 W
Plug type device side: DC plug 5.5 mm/2.1 mm
Operating temperature: 0°C to 40°C
Operating humidity: 10% - 90% RH (non-condensing)
Storage temperature: -10°C to 70°C
Fanless design (air flow cooling)
Dimensions: 140x76x28 mm
Weight: 435 g
Chipset: RTL8370N-VB

Package content:
1 x 8-port gigabit switch, unmanaged
1 x power supply
1 x Quick Start Guide

Platums(cm)16.3
Grums(cm)12.2
Augstums(cm)9.4
Svars(kg)0.51
Tilpums(cm3)1869.28
Izcelsmes valstsCN
