Delock KVM 4 in 1 Multiview Switch 4 x HDMI with USB 2.0

Reference 11488

Condition: New

More info

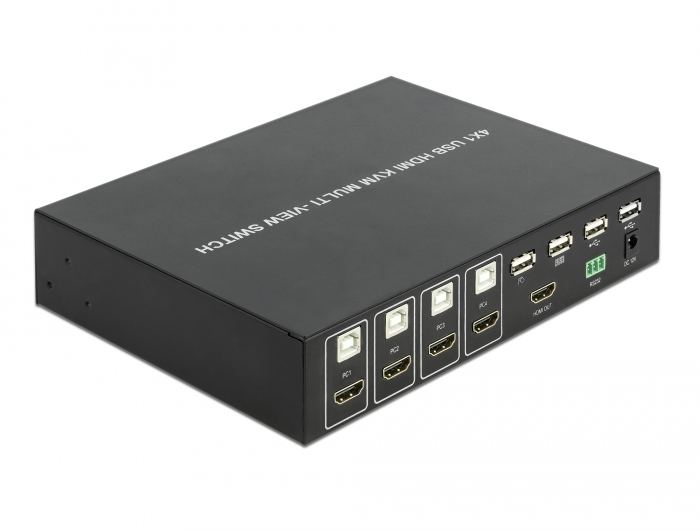

This KVM switch by Delock is a convenient solution for connecting four computers with HDMI output to one HDMI monitor. Furthermore, four USB 2.0 Type-A ports can be used to connect a mouse, keyboard, printer or USB drive.

4 in 1 Multiview Mode

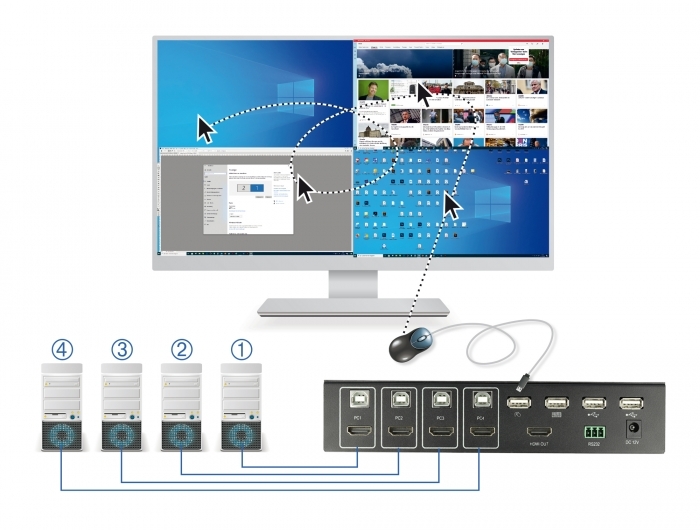

In Multiview Mode, all 4 PCs are displayed on one monitor simultaneously. Operating the keyboard and mouse is possible without switching. When the mouse is moved over one of the desktops, it is activated for input. Alternatively, the Sync Mode can be turned on, where all connected PCs receive the same signals from the input devices.

Flexible Control
The active computer can be selected by mouse button, keyboard hotkey, button on the device or infrared remote control.

System requirements:
• PC with HDMI female + USB Type-A female
• Monitor or TV with HDMI connector

Specification:

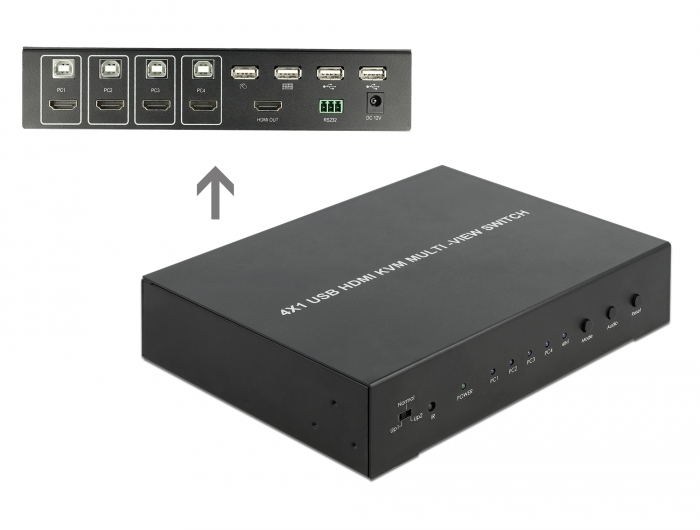

• Connectors:
  Input:
  4 x HDMI-A female
  4 x USB 2.0 Type-B female
  1 x 12 V DC jack
  Output:
  1 x HDMI-A female
  4 x USB 2.0 Type-A female
• 2 switch buttons with LED indicator for source (PC1 - PC4) and audio
• Switching via button, mouse button, hotkey or infrared remote control
• High Speed HDMI specification
• Supports HDCP 1.2
• Resolution (HDMI input) up to 1920 x 1080 @ 60 Hz
(depending on the system and the connected hardware)
• Resolution (HDMI output) 1280 x 720 or 1920 x 1080 @ 50 or 60 Hz
• Video bandwidth up to 225 MHz / 2.25 Gbps
• USB 2.0 up to 480 Mbps
• Robust metal housing
• Colour: black
• Dimensions (LxWxH): ca. 210 x 160 x 44 mm

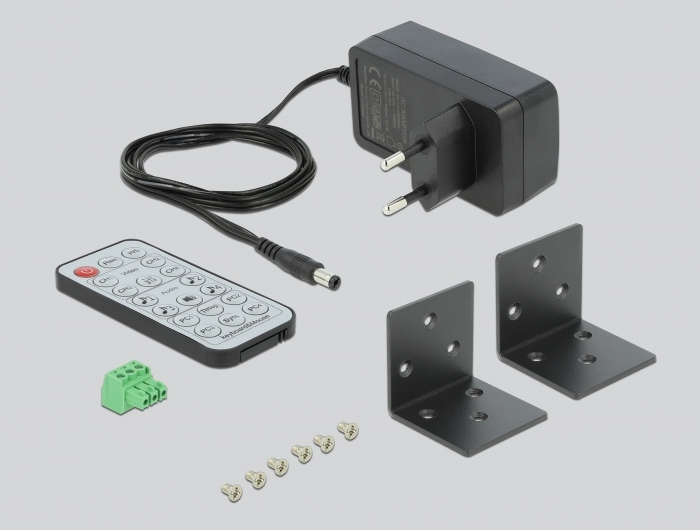

Package content:
• KVM switch
• Remote control
• External power supply
• Mounting brackets and screws
• User manual
