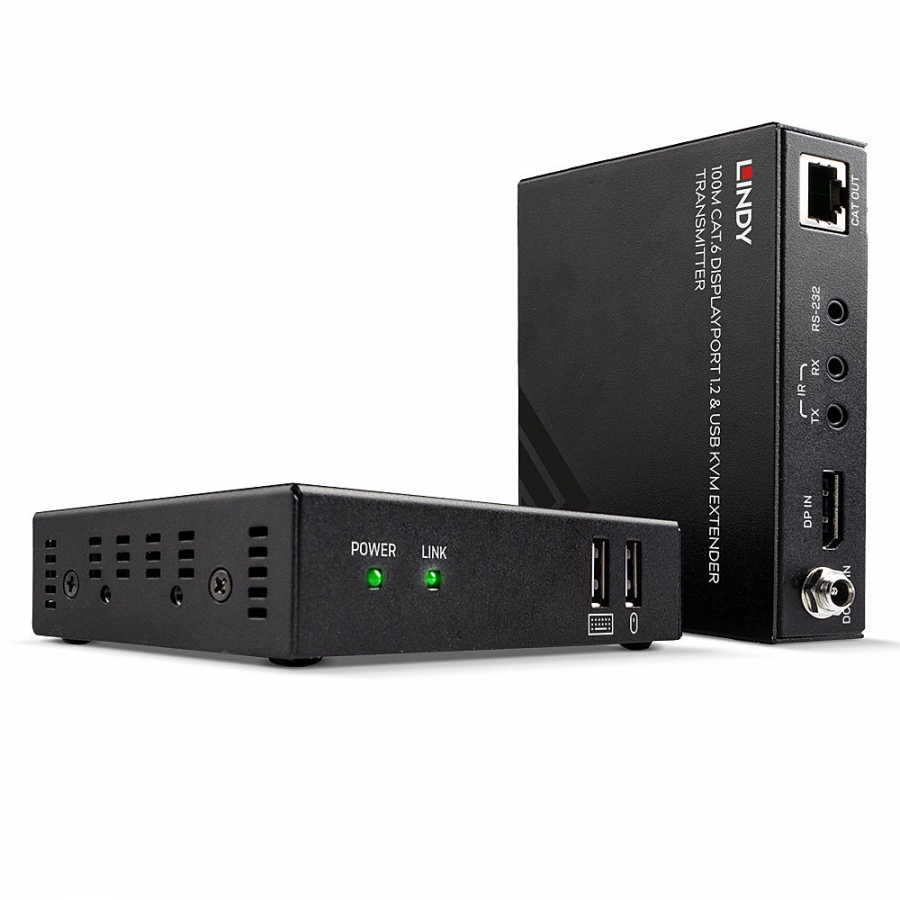

Lindy 100m Cat.6 DisplayPort 1.2 & USB KVM Extender

Lindy

LIN39375

New

Specifications

  • AV Interface: DisplayPort
  • Console Interface: USB
  • Interfaces Standard: DisplayPort 1.2

USB 2.0

  • Supported Bandwidth: 21.6Gbps
  • Maximum Distance: 100m (328.08ft)
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • HDCP Support: 1.3
  • Supported Audio: Digital audio pass-through
  • Separate Audio Ports: -
  • Transmission Protocol: -
  • Transmission Medium: 1 x Cat.5e / 6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Special Features: PoC (Power over Cat.6 Cable)

Bi-directional IR

Bi-directional RS-232



Connectors

  • Transmitter KVM Interfaces: DisplayPort (Female)

USB Type B (Female)

  • Transmitter Extension Port: RJ-45 (Female)
  • Receiver Console Interface: DisplayPort (Female)

2 x USB Type A (Female)

  • Receiver Extension Port: RJ-45 (Female)
  • Bi-directional Ports: 3.5mm IR Emitter (Female)

3.5mm IR Receiver (Female)

3.5mm RS-232 (Female)

  • Other Interfaces: -
  • Power : 5.5/2.1mm



Physical Properties

  • Dimensions (approx.) WxDxH: 110x26x75mm (4.33x1.02x2.95in)
  • Housing Material: Metal
  • Net Weight: 0.555kg (1.22lb)
  • Operating Temperature : 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 10 - 85% RH (non-condensing)
  • Power Requirements: 48VDC 0.5A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 255x96x195mm (10.04x3.78x7.68in)
  • Gross Weight: 1.282kg (2.83lb)
  • Warranty (Years): 2
  • Certification: CE, FCC, RoHS, REACH & California Proposition 65



Package Content

  • DisplayPort Transmitter
  • DisplayPort Receiver
  • Multi-country Power Supply (UK, EU, US & AUS)
  • IR Emitter Cable, 1.5m
  • IR Receiver Cable, 1.8m
  • 2 x 3.5mm to RS-232 Cable, 0.5m
  • Lindy Manual



Purchasing Information

  • No.: 39375
  • EAN: 4002888393751
