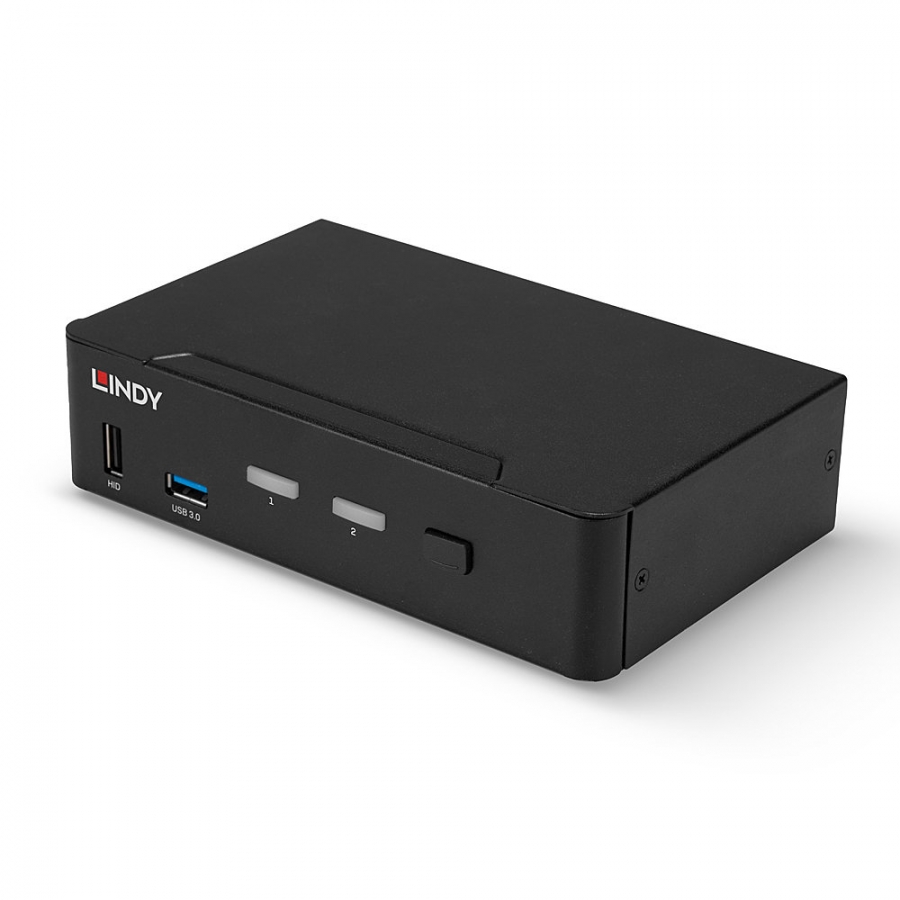

Lindy 2 Port DisplayPort 1.4, USB 3.0 & Audio KVM Switch

Lindy

LIN39312

New

Specifications

  • AV Interface: DisplayPort
  • Console Interfaces: USB
  • Interface Standard: DisplayPort 1.4, USB 3.0
  • Maximum Resolution: 7680x4320@60Hz 4:2:0 8Bit
  • HDCP Support: 2.2
  • Supported Audio: Analogue Stereo
  • Separate Audio Ports: 3.5mm (Female)
  • Serial Interface: -
  • Console Number: 1
  • Max Number PC/Server: 2
  • Cascadable: -
  • Switching Method: Push Button & Hotkey Switching
  • 19" Rack Mountable: -
  • Special Features: USB 3.0 Hub, Independent audio and Hub switching, Active LED Indicators



Connectors

  • Console Interfaces: DisplayPort (Female), 3 x USB HID Type A (Female), 2 x USB 3.0 Type A (Female), 3.5mm (Female)
  • PC/Server Interfaces: 2 x DisplayPort (Female), 2 x USB 3.0 Type B (Female), 2 x 3.5mm (Female)
  • Other Interfaces: -
  • Power: 5.5/2.1mm DC socket



Physical Properties

  • Dimensions (approx.) WxDxH: 160x100x40mm (6.3x3.94x1.57in)
  • Housing Material: Metal
  • Net Weight: 0.617kg (1.36lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 0 - 80% RH (non-condensing)
  • Power Requirements: 12VDC 1.5A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 240x185x90mm (9.45x7.28x3.54in)
  • Gross Weight: 1.057kg (2.33lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, REACH & California Proposition 65



Package Content

  • DP 1.4 KVM Switch
  • 4 x rubber feet
  • Multi-country PSU (UK, EU, US & AUS)
  • Lindy Manual



Purchasing Information

  • No.: 39312
  • EAN: 4002888393126
