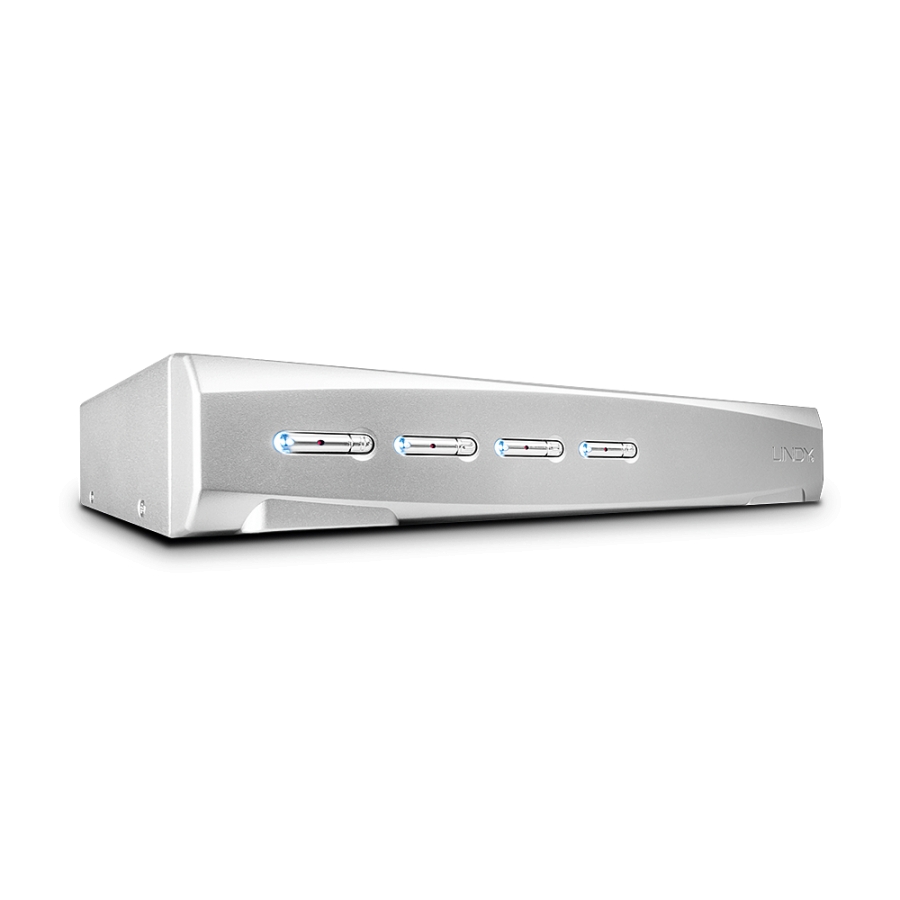

Lindy 4 Port DVI-I Dual Link, USB 2.0 & Audio KVM Switch

Lindy

LIN39339

New

Specifications

  • AV Interface: DVI-I
  • Console Interfaces: USB
  • Interface Standard: DVI-I Dual Link, USB 2.0
  • Maximum Resolution: DVI: 2560x1600@60Hz; VGA: 2048x1536@30Hz
  • HDCP Support: -
  • Supported Audio: Analogue Stereo
  • Separate Audio Ports: 2 x 3.5mm (Female)
  • Serial Interface: -
  • Console Number: 1
  • Max Number PC/Server: 4
  • Cascadable: No
  • Switching Method: Push Buttons & Hotkey Switching
  • 19" Rack Mountable: -
  • Special Features: USB 2.0 Hub, Independent audio and Hub switching, Active LED Indicators



Connectors

  • Console Interfaces: DVI-I (Female), USB 2.0 Type A (Female), 2 x 3.5mm (Female)
  • PC/Server Interfaces: 4 x DVI-I (Female), USB 2.0 Type B (Female), 2 x 3.5mm (Female)
  • Other Interfaces: 2 x USB 2.0 Type A (Female) Shared Ports
  • Power: 5.5/2.1mm DC socket



Physical Properties

  • Dimensions WxDxH: 255x45x120mm (10.04x1.77x4.72in)
  • Housing Material: Metal
  • Net Weight: 1kg (2.2lb)
  • Operating Temperature: 0°C - 50°C (32°F - 122°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 0~90% RH (non-condensing)
  • Power Requirements: 9VDC 1.1A
  • Colour: Silver



Miscellaneous

  • Packaging Type: Carton box
  • Packaging Dimensions: 315x215x65mm (12.4x8.46x2.56in)
  • Gross Weight: 1.5kg (3.31lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH



Package Contents

  • KVM Switch
  • Multi-country PSU (UK, EU, US & AUS)
  • Lindy Manual



Purchasing Information

  • No.: 39339
  • EAN: 4002888393393
