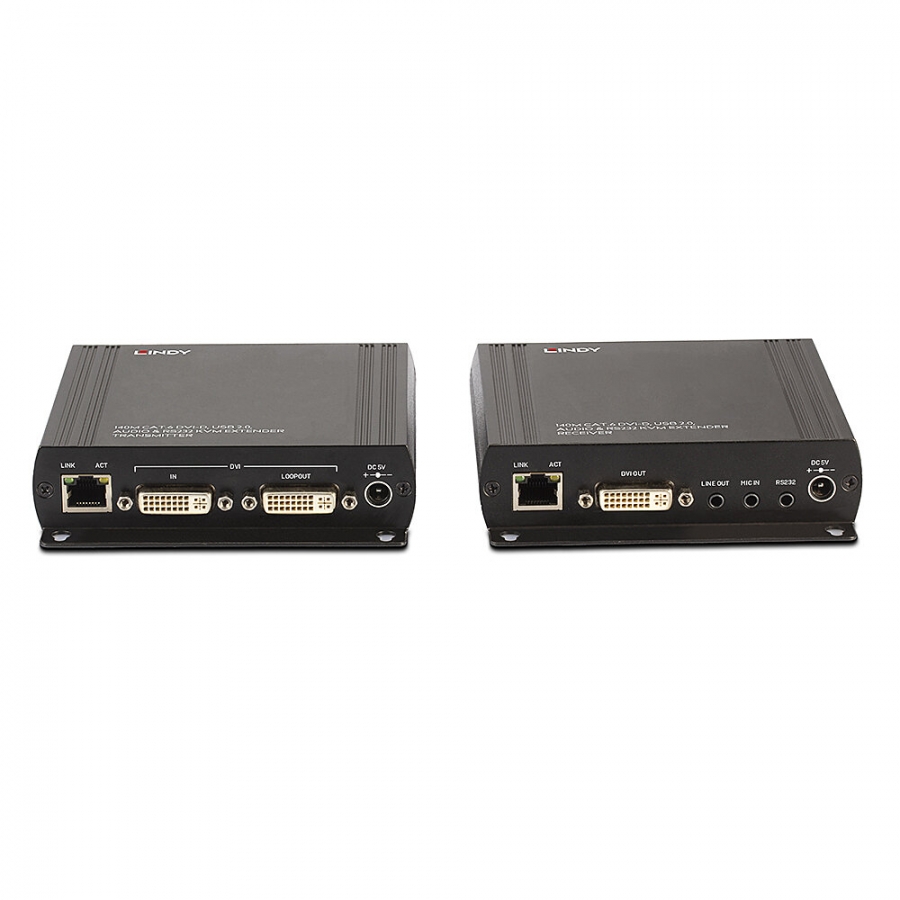

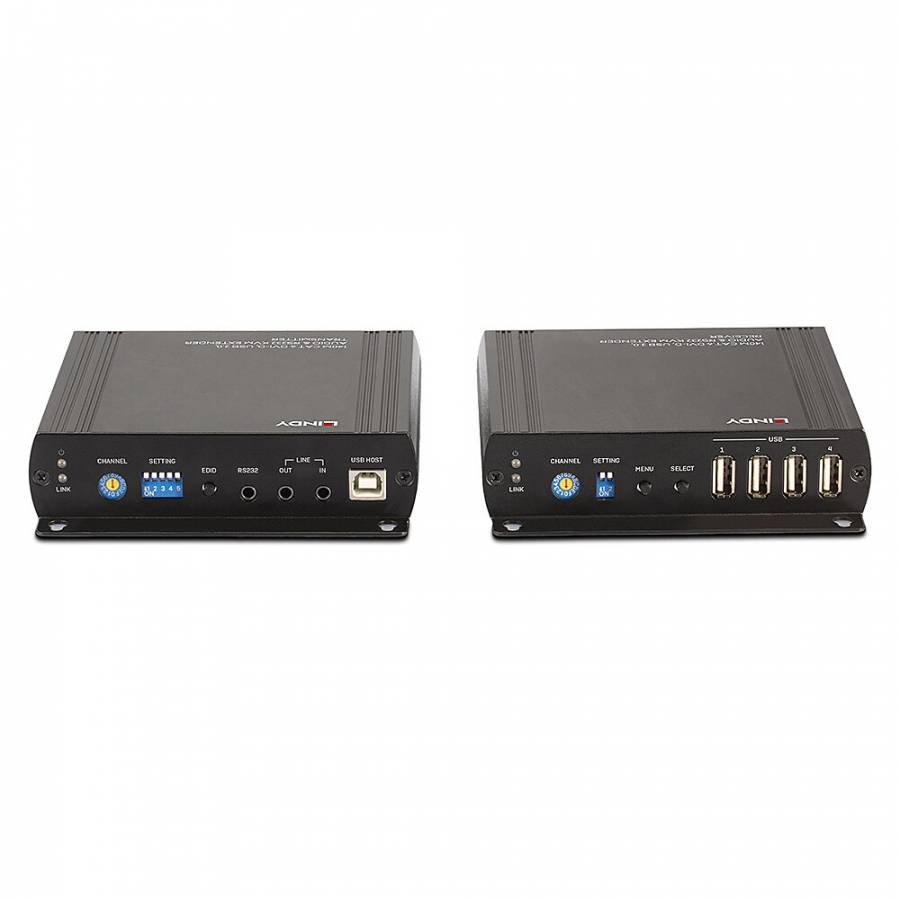

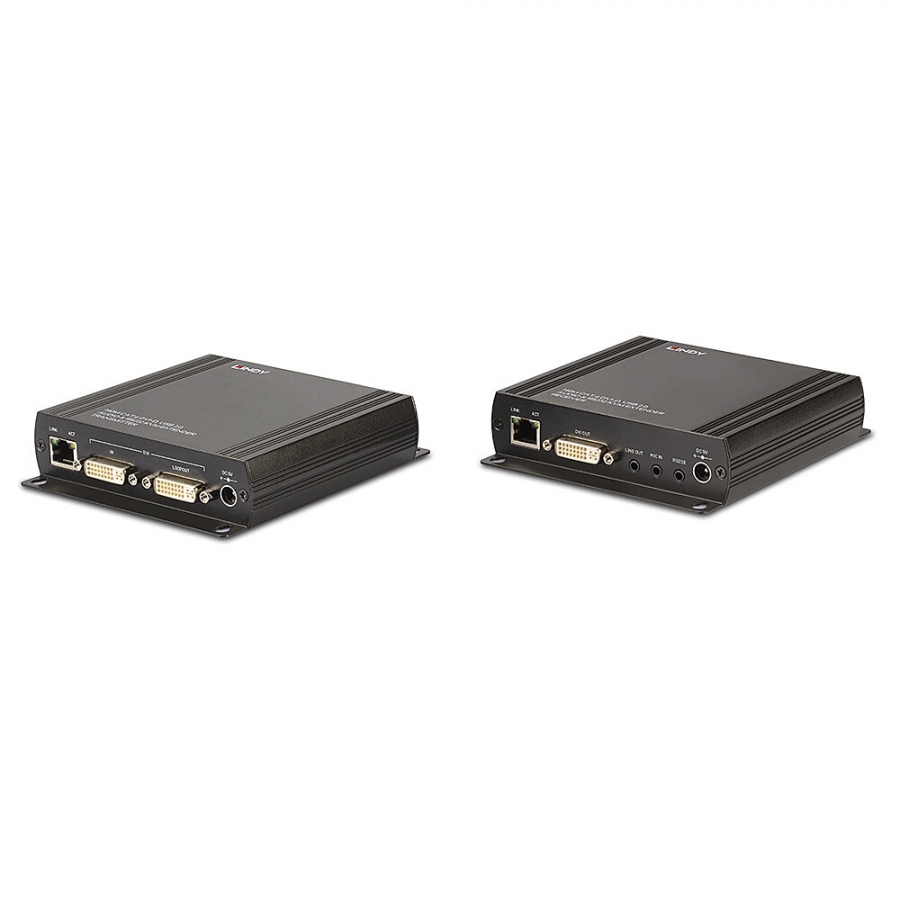

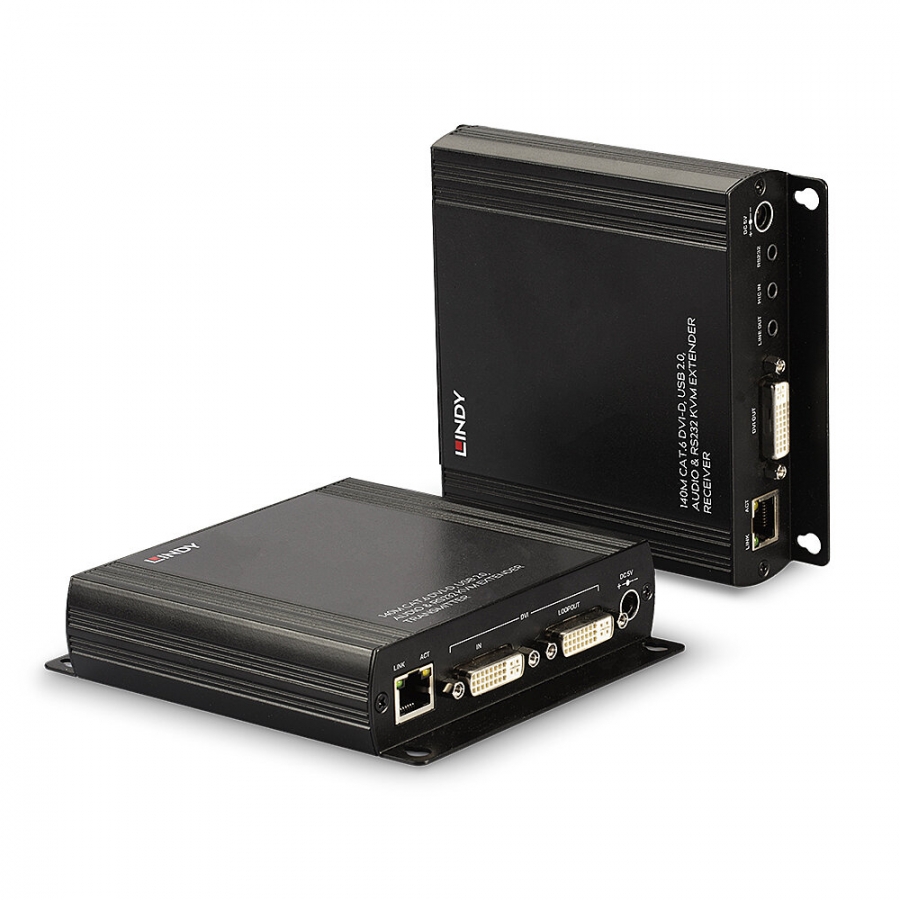

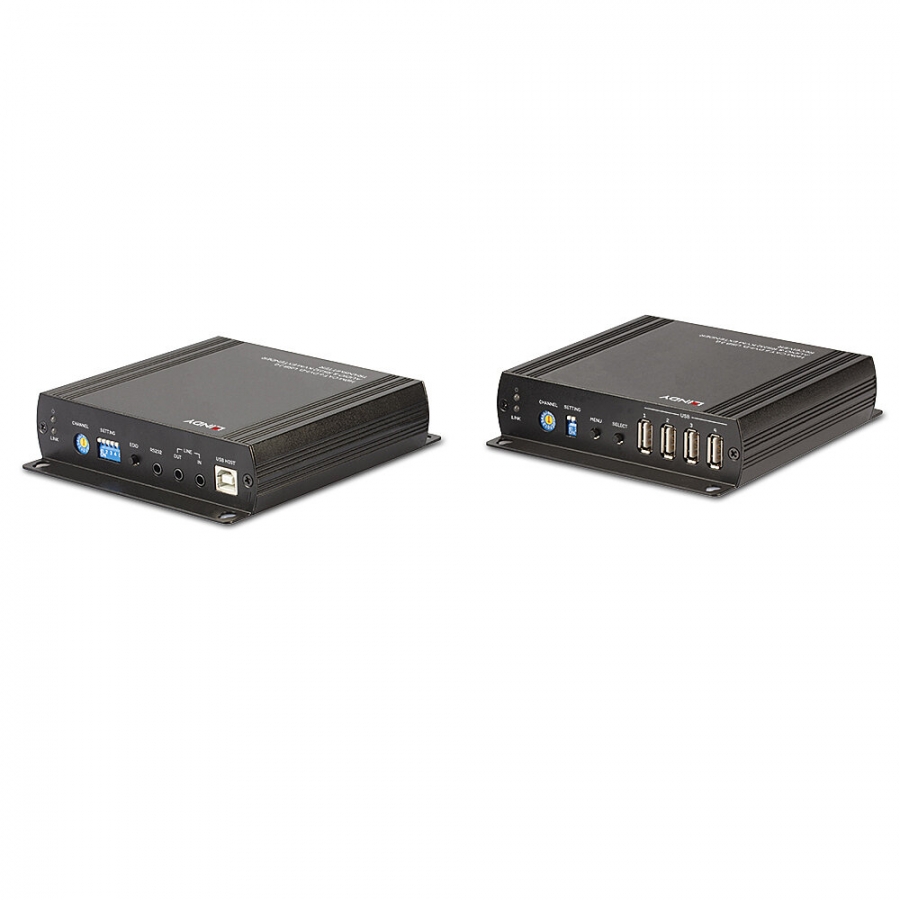

LINDY 140m Cat.6 DVI-D, USB, Audio & RS232 KVM Extender

Lindy

39245

New

Extends DVI-D, USB 2.0, Audio and RS-232 up to 140m using only one Cat.6 cable Supports DVI Single Link resolutions up to 1920x1200 4 USB 2.0 Type A ports to connect keyboard, mouse and mass storage devices Easy, user friendly installation - no software required 2 year warrantyThe Lindy Cat.6 DVI-D Single Link, USB, Audio & RS-232 KVM Extender allows users to control a source device such as a PC from a single keyboard, mouse and display up to 140m using a Cat.6 RJ-45 cable. Supports single link resolutions up to 1920x1200 and HDMI signals including Full HD 1080p, 3D and HDCP 1.4. Ideal for KVM applications, the Extender consists of a transmitter and a receiver unit. The transmitter must be connected to a source such as a PC or KVM Switch, while the console with display, keyboard and mouse must be connected to the receiver. It's also possible to connect additional USB 2.0 devices such as storage and hard drives (webcams are not supported).The extenders built-in EDID function ensures maximum compatibility with the display or projector at the receiver or even at the loop out DVI port on the transmitter, while analogue audio 3.5mm inputs and outputs allow users to connect speakers, microphones and a line-in interface.RS-232 connections also allow for integration into pre-installed control systems.This extender provides a simple plug & play installation, with no additional drivers required, great for both professional and first time users. In addition to point-to-point applications, it can be used also via a gigabit network, a rotary switch on both units can pair transmitters with receivers.Please note: to reach distances longer that 140m, it is possible to add a gigabit network switch or the repeater 42709 inbetween transmitter and receiver (with 42709 the total length supported is up to 280m).

TypeTransmitter & receiver
Connectivity technologyWired
Maximum transfer distance140 m
Cable types supportedCat6
Maximum refresh rate60 Hz
Product colourBlack
MaterialMetal
USB 2.0 ports quantity4
CertificationCE, UKCA, FCC, RoHS, REACH & California Proposition 65
Transmitter video port typeDVI-I
RJ-45 ports quantity (transmitter)1
Receiver local video port typeDVI-I
RJ-45 ports quantity (receiver)1
Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-20 - 85 °C
Operating relative humidity (H-H)0 - 95%
Transmitter width12.5 cm
Transmitter depth14 cm
Transmitter height3 cm
Receiver width12.5 cm
Receiver depth14 cm
Receiver height3 cm
Package width355 mm
Package depth195 mm
Package height60 mm
Package weight1.52 kg
Maximum resolution1920 x 1200 pixels
Power requirements5VDC 2.6A
Weight1.27 kg
AC adapter includedY
Screwdriver includedY
Cables includedAudio (3.5mm), RS-232, USB Type-A to USB Type-B
ManualY
USB port typeUSB Type-A/USB Type-B
RJ-45 ports quantity2
PC Audio inY
Harmonized System (HS) code84733080
