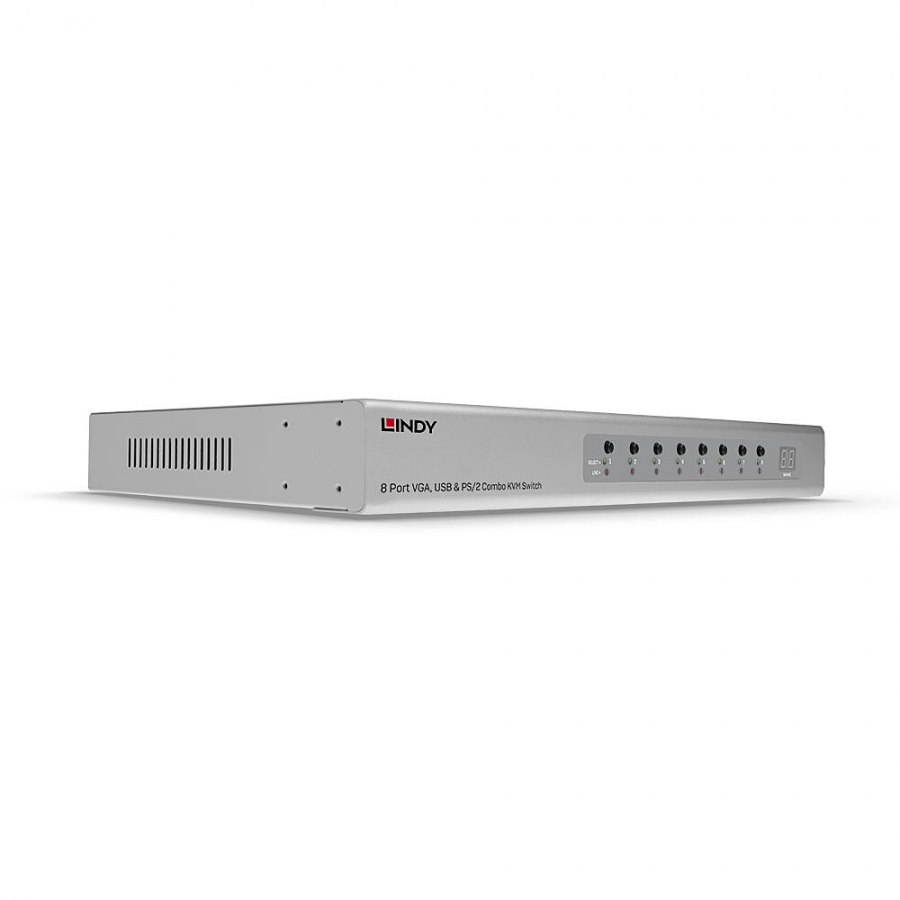

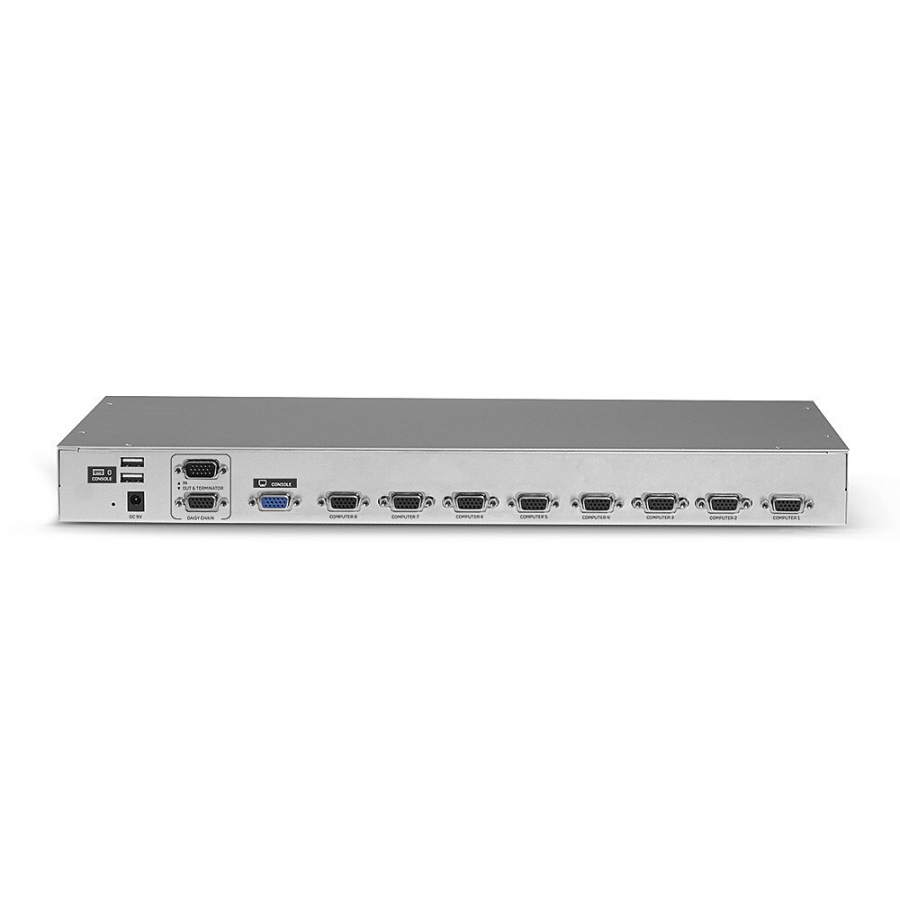

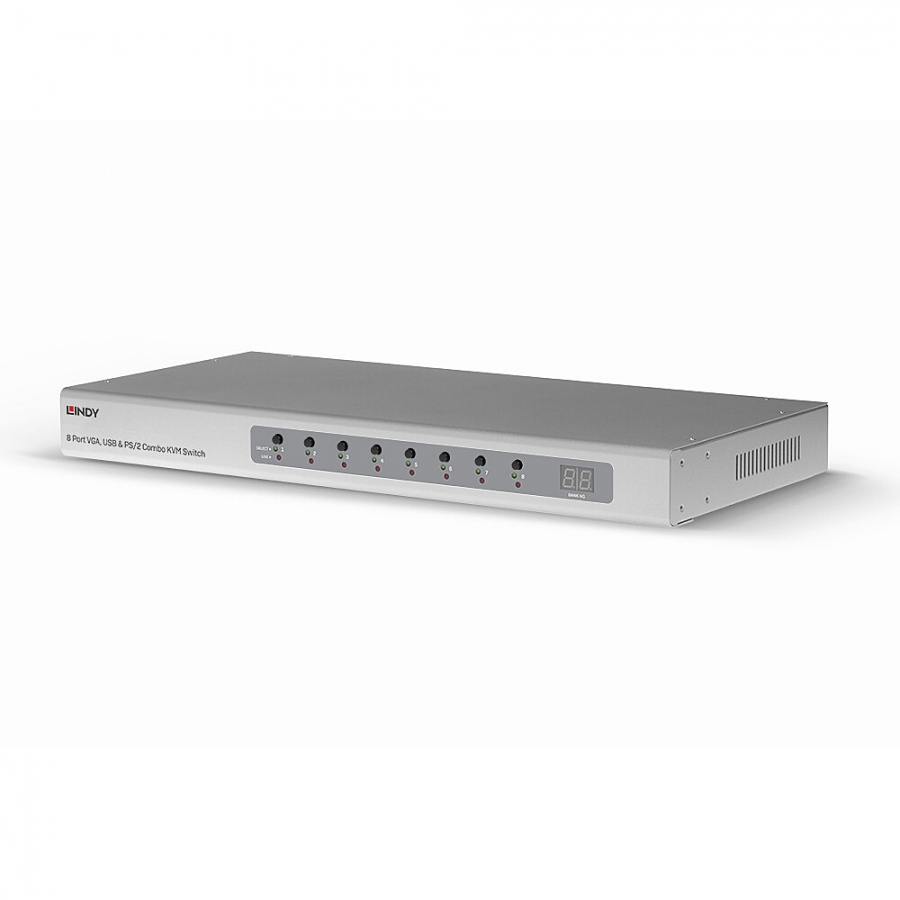

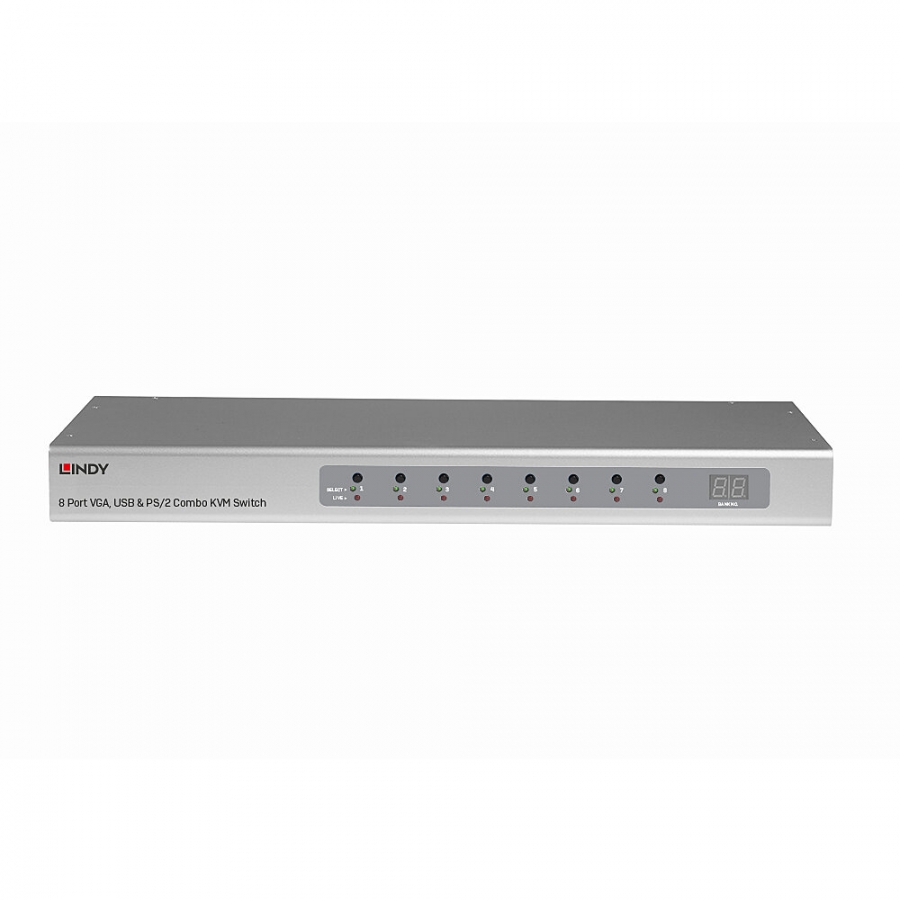

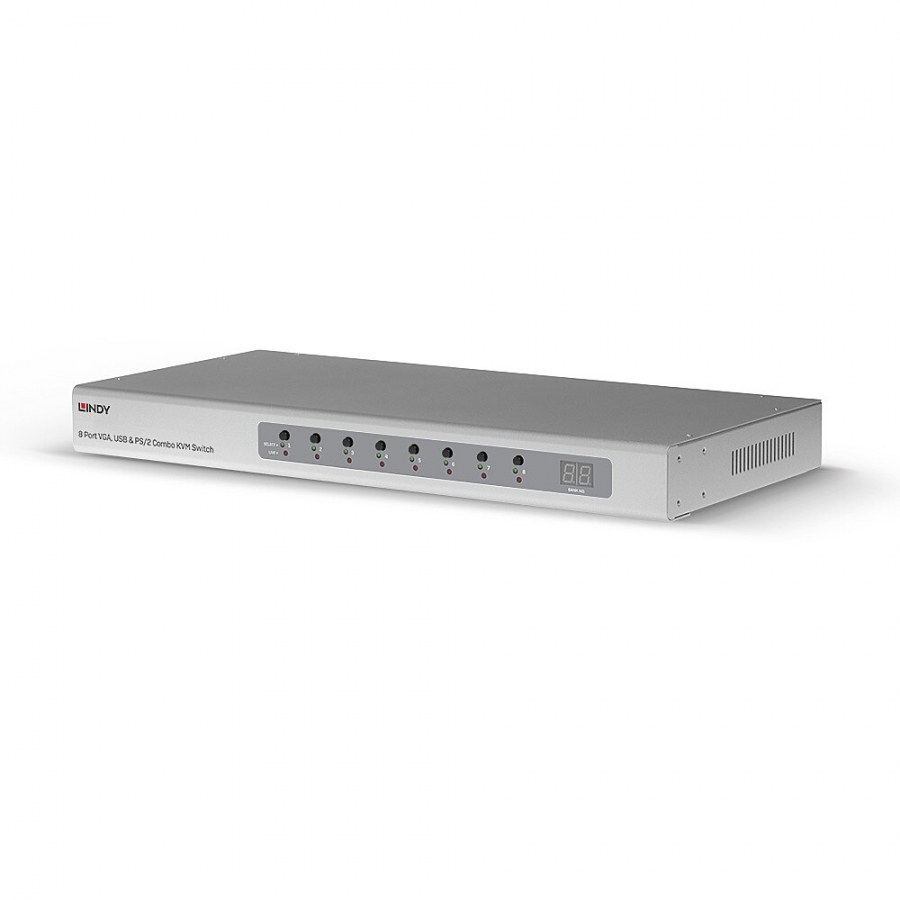

LINDY KVM Switch 8 Port VGA, USB & PS/2 Combo

Lindy

39526

New

Supports up to 8 USB & VGA and PS/2 & VGA equipped computers Supports VGA resolutions up to 2048x1536@60Hz Port switching via hotkey, On-Screen Display or front panel buttons PCs are connected via dedicated KVM cables (not included) at distances of up to 5m 2 year warrantyA KVM switch allows an operator to conveniently control and manage multiple devices, such as PCs and servers, from a single keyboard, mouse and display console.The Lindy Combo KVM Switch is a hardware solution that allows direct control of multiple computers using a single keyboard, mouse and VGA monitor. It's ideal for system administrators who want to control multiple computers or servers from a single, centralised location.The switch occupies only a single 1U space in a 19” rack and supports screen resolutions of up to 12048x1536@60Hz, great for ensuring optimum clarity if used in digital media or graphic design scenarios. It provides 3 simple switching modes, via keyboard hotkeys, front panel buttons and On-Screen Display; setup and management options can be access only via the OSD.A local console can be connected to the 2 USB and VGA ports on the rear panel while Daisy Chain VGA ports can be used to connect up to 8 Lindy Combo series switches in order to manage to up to 128 multi platform computers with security features and password access, perfect for large-scale control systems in transport hubs or surveillance centres. All the functions are accessible from the administrator through a simple to use On-Screen Display while LEDs on the front panel show the online and selected PC to ensure continuous control & monitoring.PCs & connected KVM switches can be remove easily with hot plug support, allowing for maintenance to take place without the need for powering down all connected devices, essential within "always on" environments such as data centres or traffic management setups.Computers or servers can be connected to the 8 host ports on the rear panel via dedicated KVM cables (not included).These are available in different lengths and connections:VGA    & USB     & USB - PS/21m       33770       2m       33771       337743m       33772       5m       33773

Number of computers controlled8
Video port typeVGA
Console portsVGA (D-Sub)
VGA (D-Sub) ports quantity8
Console USB ports quantity2
DC-in jackY
HD typeFull HD
Maximum resolution2048 x 1536 pixels
Video bandwidth60 Hz
Daisy chainY
Rack mountingY
Product colourSilver
Rack capacity1U
Housing materialMetal
CascadableY
CertificationCE, FCC, California Proposition 65
Built-in displayY
DC input voltage9 V
Input current2 A
External power adapterY
Sustainability certificatesREACH, RoHS
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 90%
Width440 mm
Depth220 mm
Height44 mm
Weight1.5 kg
Package width570 mm
Package depth250 mm
Package height110 mm
Package weight3.3 kg
Cables includedDaisy chain cable
ManualY
AC adapter includedY
Rack mount kitY
Harmonized System (HS) code85176200
