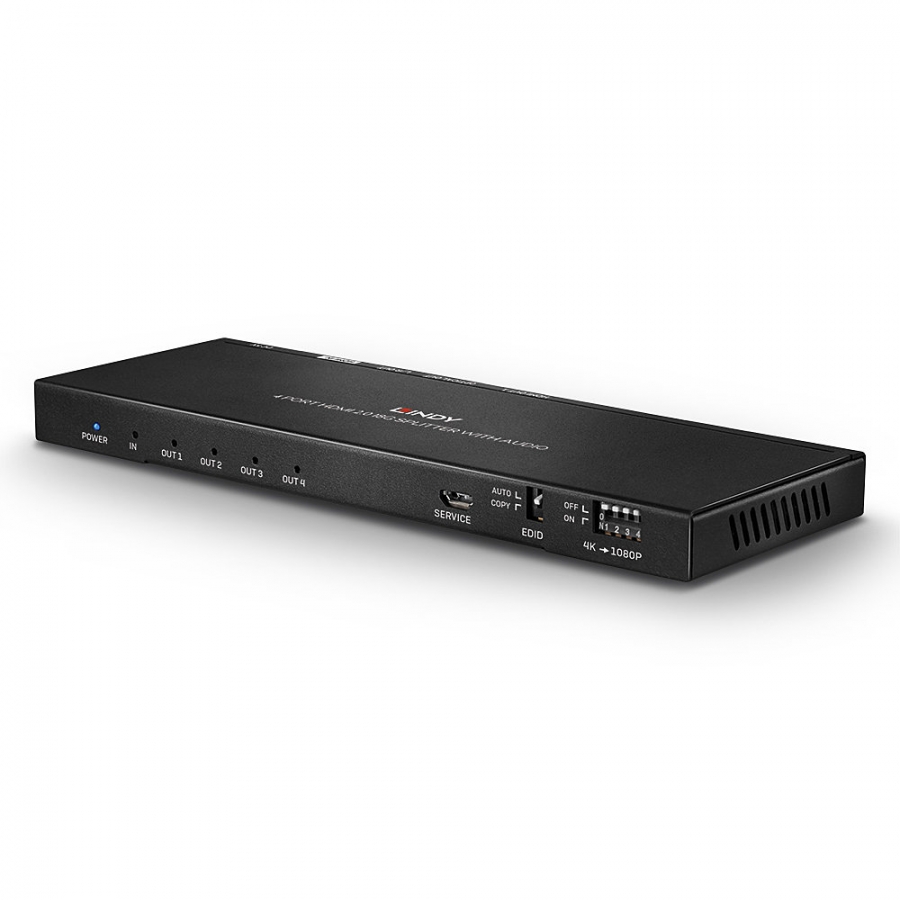

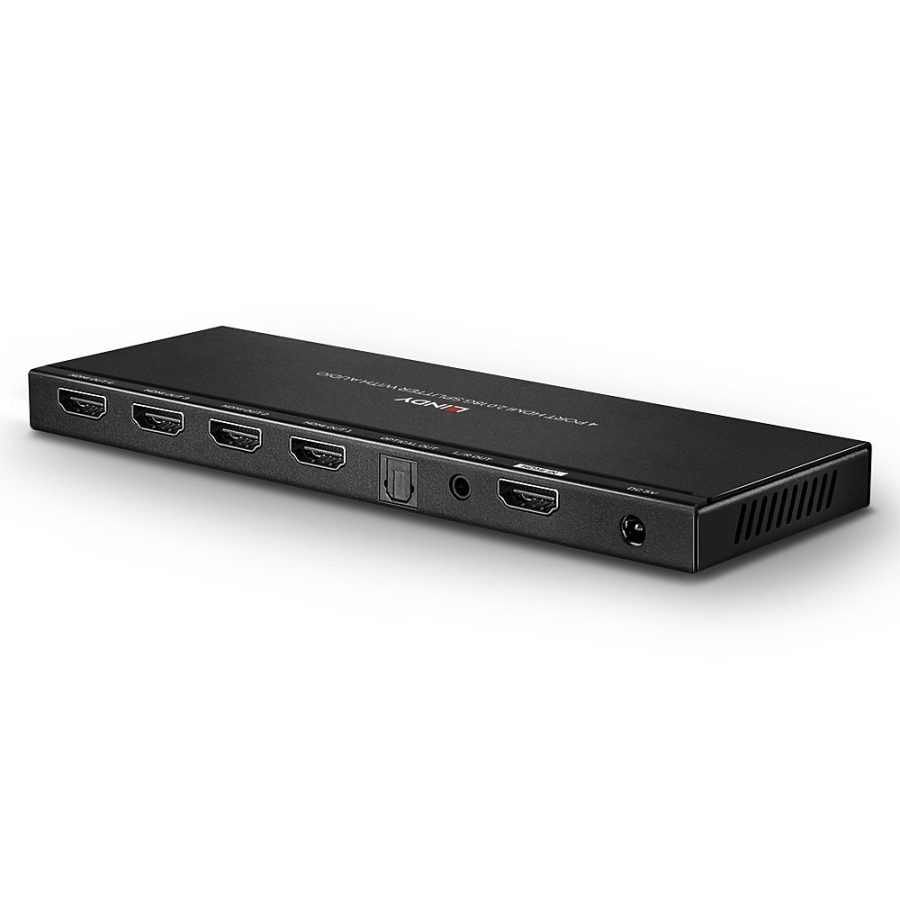

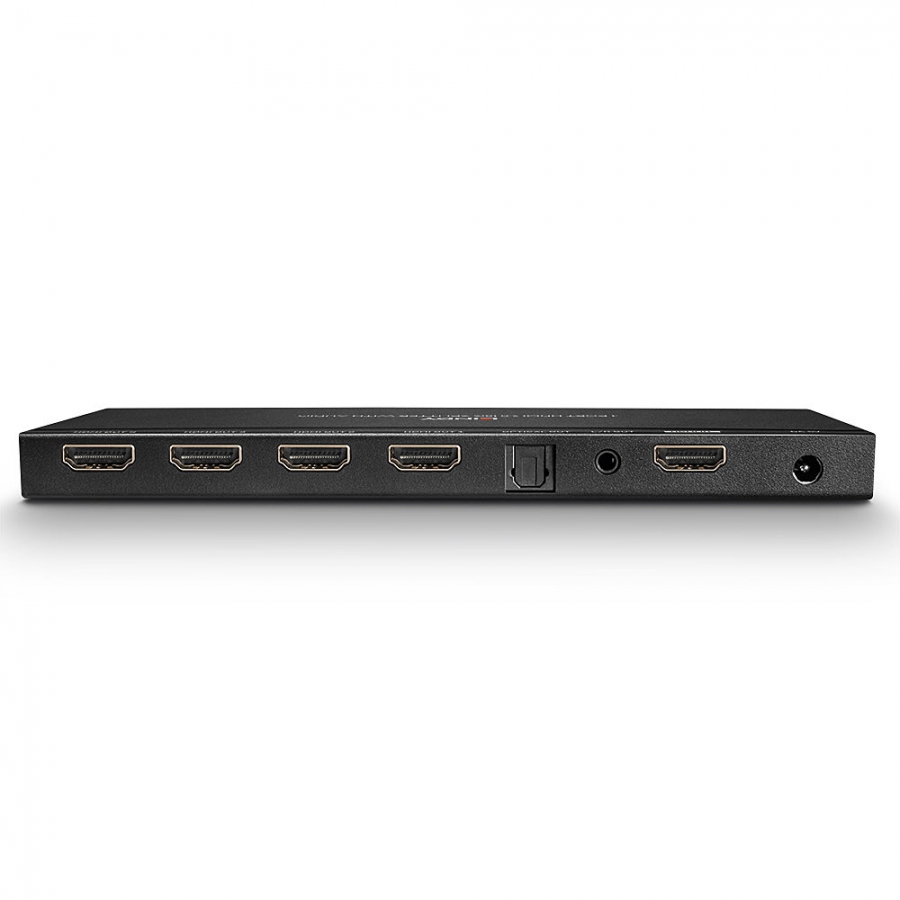

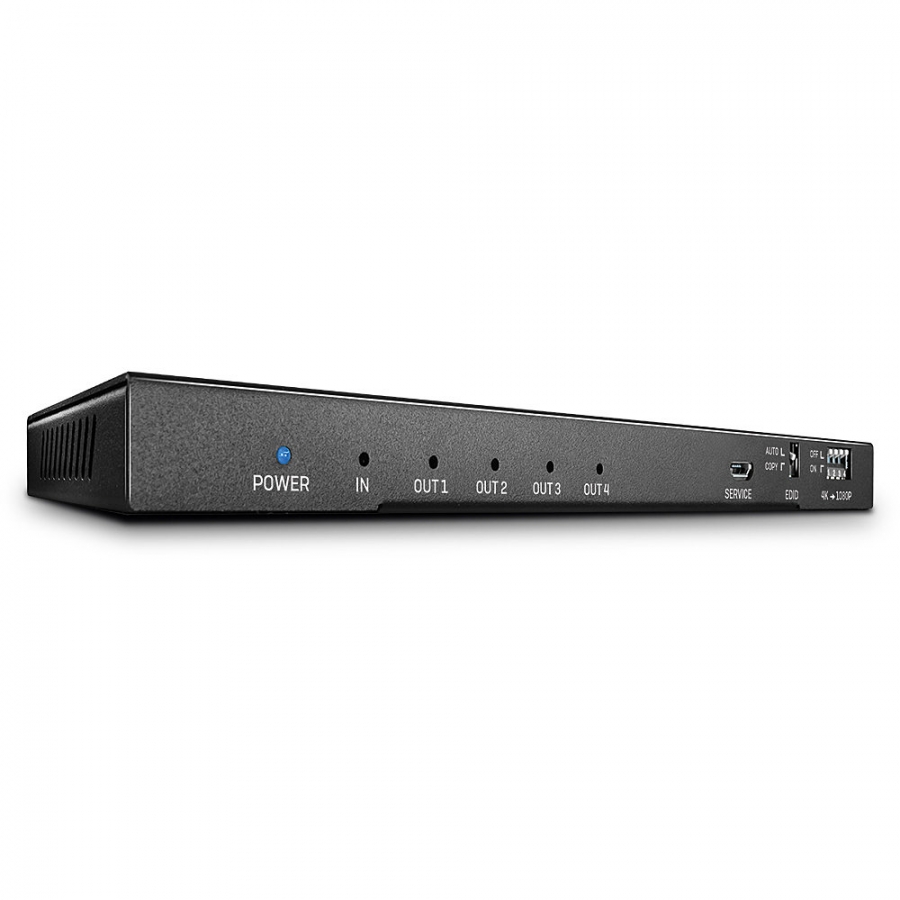

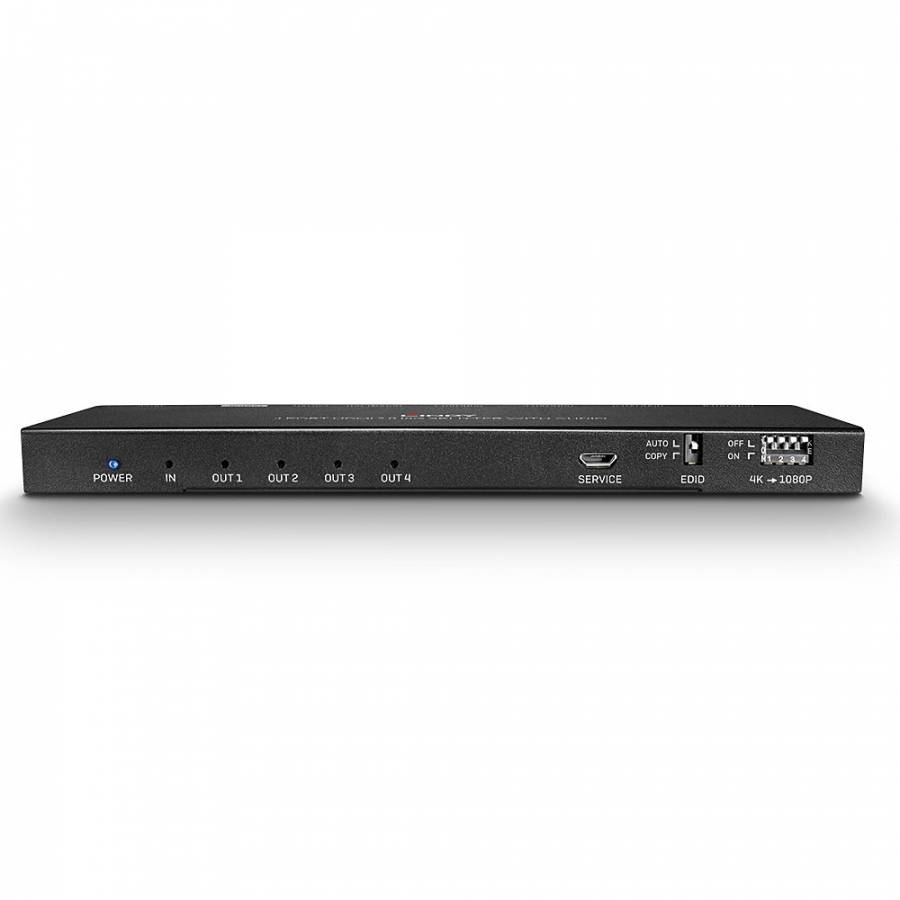

LINDY 4 Port HDMI 2.0 18G Splitter mit Audio

Lindy

38231

New

Displays HDMI signals across 4 displays simultaneously from one source device Supports resolutions up to 4K 60Hz 4:4:4, with additional support for HDR Extract digital and analogue audio from HDMI for non-HDMI amplifiers Features a neat switch for downscaling from 4K to 1080p 2 year warrantyThe Lindy 4 Port HDMI 18G Splitter with Audio is a multi-function solution for distributing high quality HDMI signals across 4 displays simultaneously from one source device, while extracting digital or analogue audio separately.With support for resolutions up to 4K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching quad display digital signage in retail scenarios, displaying sports across multiple screens in sports bars or distributing engaging multiscreen educational presentations at tradeshows.The splitter also has separate optical and 3.5mm audio ports to easily extract audio from HDMI to connect non-HDMI amplifiers or soundbars, ideal for supporting video with immersive multichannel audio.The additional ability to cascade this splitter up to three further levels allows for an extended HDMI splitting experience, ideal for multi-screen situations such as informational broadcasting in airports, train stations or stock exchange offices.The splitters also feature an integrated switch to downscale the input signal to Full HD, making installations with older displays hassle free while always ensuring the viewer receives the optimum picture from their display.

Video ports quantity5
Video port typeHDMI
Video out4x HDMI
HDMI version2.0
Audio ports quantity2
DC-in jackY
Maximum resolution4096 x 2160 pixels
Product colourBlack
Housing materialMetal
HD type4K Ultra HD
Maximum refresh rate60 Hz
HDCPY
LED indicatorsPower
Output voltage5 V
Output current1 A
Width180 mm
Depth14.4 mm
Height63 mm
Package width212 mm
Package depth55 mm
Package height148 mm
Package weight228 g
Package typeBox
ManualY
AC adapter includedY
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 90%
Harmonized System (HS) code85176990
