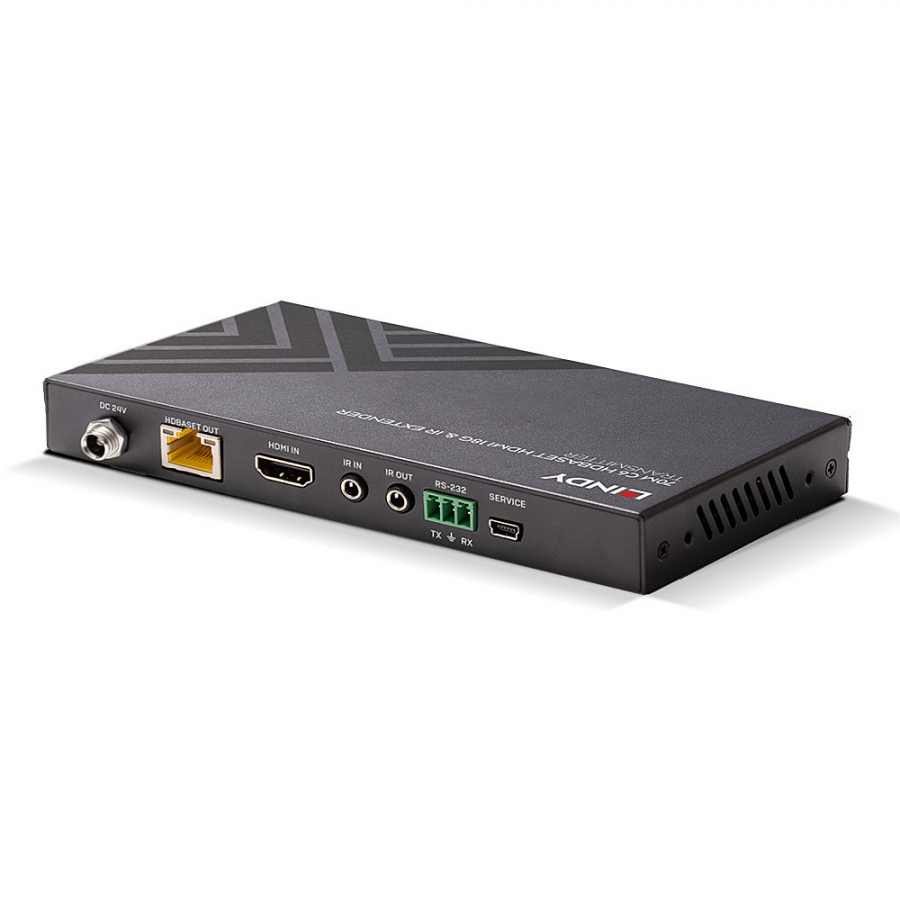

LINDY 70m C6 HDBaseT HDMI 18G & IR Extender Transmitter

Lindy

38213

New

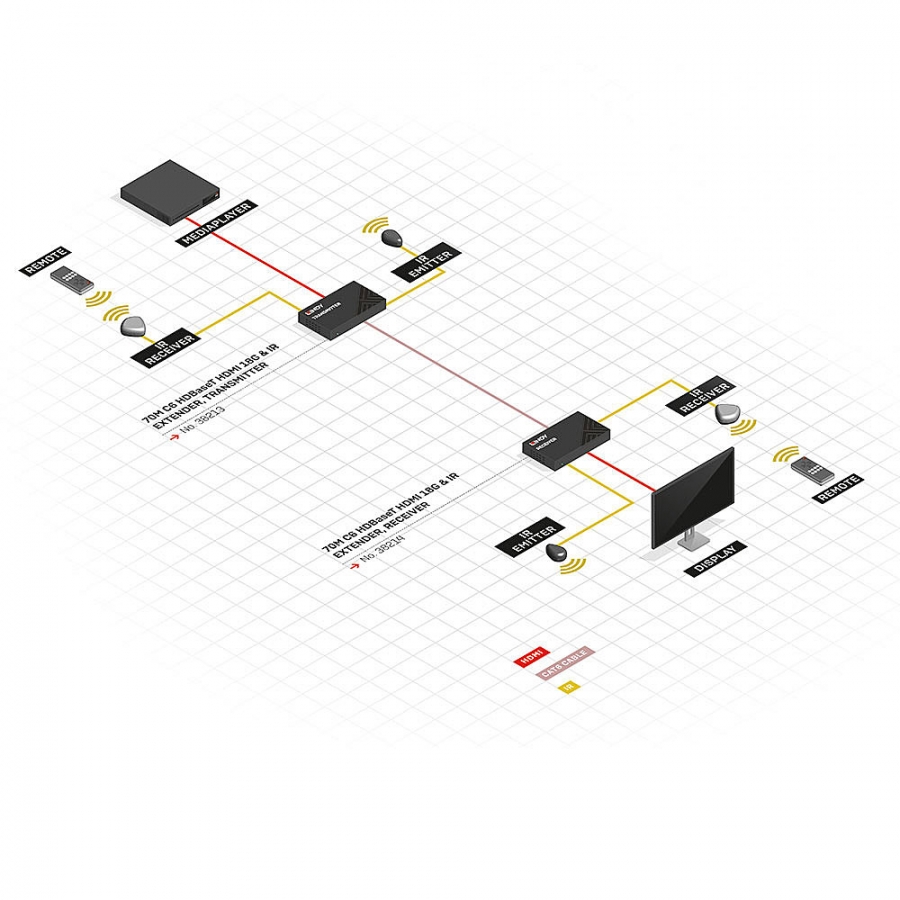

Distributes HDMI resolutions up to 70m over Cat.6 network cable via HDBaseT technology Supports HDMI 18G resolutions up to 4K@60Hz 4:4:4, with additional support for HDR RS-232 and CEC pass-through and bi-directional IR for simple control Supports PoC (Power over Cable), requiring a power supply connection from only one side of the installation 2 year warrantyThe Lindy C6 HDBaseT HDMI 4K60 & IR Extender, Transmitter is one part of a high performance, reliable solution for extending HDMI signals over long distances via Cat.6 network cable.By combining this transmitter unit with a compatible Lindy HDBaseT receiver, this solution ensures reliable transmission up to 70m.The following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or F/UTP cable:70m: 1920x1080@60Hz 4:4:4 8bit40m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bitSupporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point to point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation.Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. Combined with CEC control, which allows commands from one main remote, this extension system allows for complete and simple control for the user.HDBaset is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

TypeAV transmitter & receiver
Maximum resolution3840 x 2160 pixels
Cable types supportedCat6
Maximum transfer distance70 m
ChipsetVS010
Maximum refresh rate60 Hz
Extended display identification data (EDID)Y
CEC pass-throughY

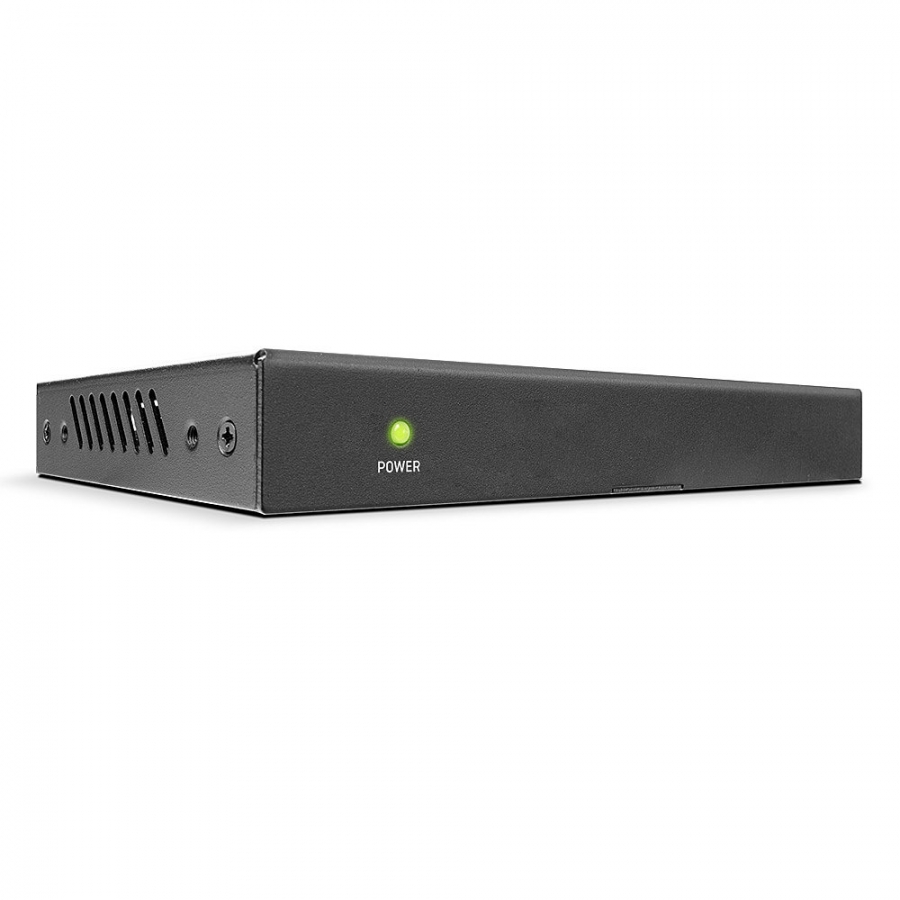

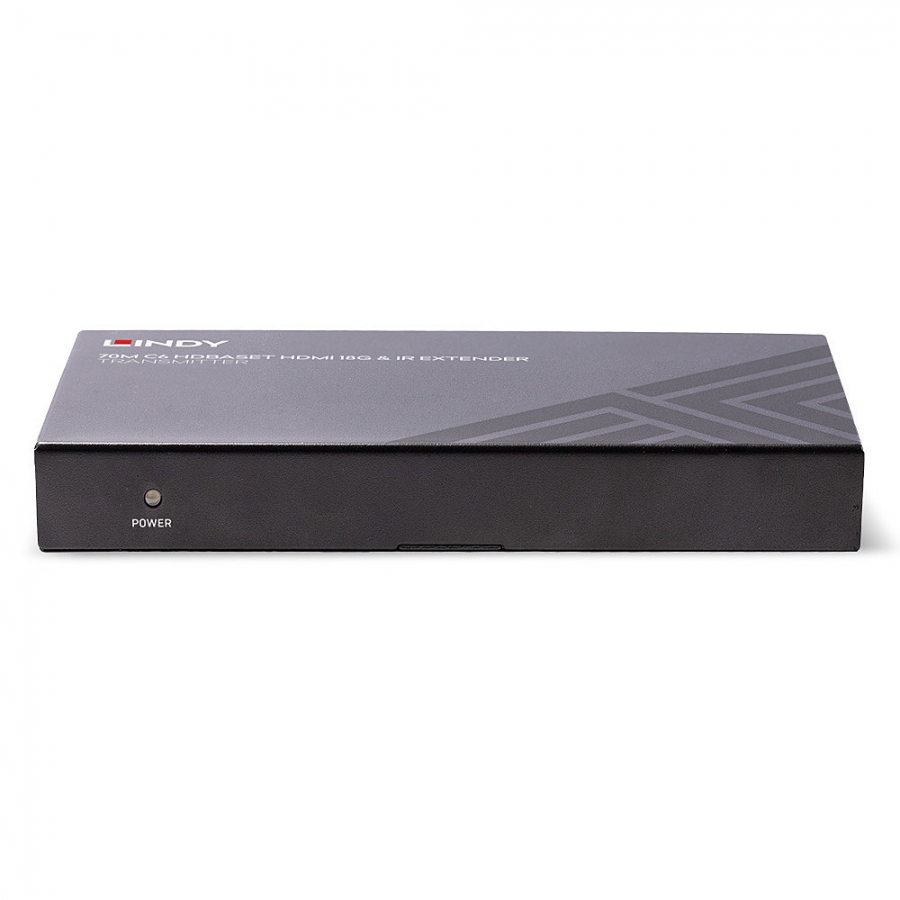

LED indicatorsY
Bandwidth18 Gbit/s
HDCPY
MaterialMetal
HDCP version2.2
Product colourBlack
CertificationCE, FCC, REACH & California Proposition 65
Connectivity technologyWired

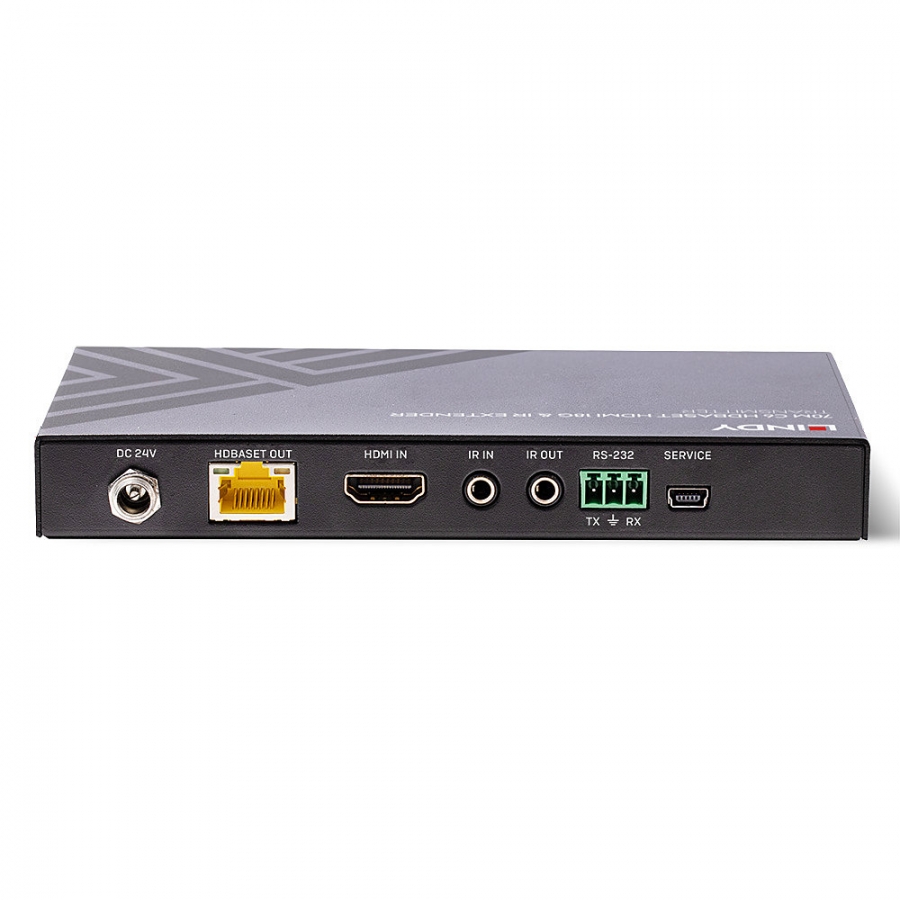

RJ-45 output ports1
HDBaseT portY
HDMI in1
HDMI version2.0
RS-232 input ports1
Remote (IR) input1
Remote (IR) output1
DC-in jackY
Operating voltage24 V
Input current1 A
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 90%
Width157 mm
Depth90 mm
Height20 mm
Weight345 g
Package width220 mm
Package depth130 mm
Package height70 mm
Package weight847 g
Package typeBox
AC adapter includedY
Cables includedIR
ManualY
Sustainability certificatesRoHS
