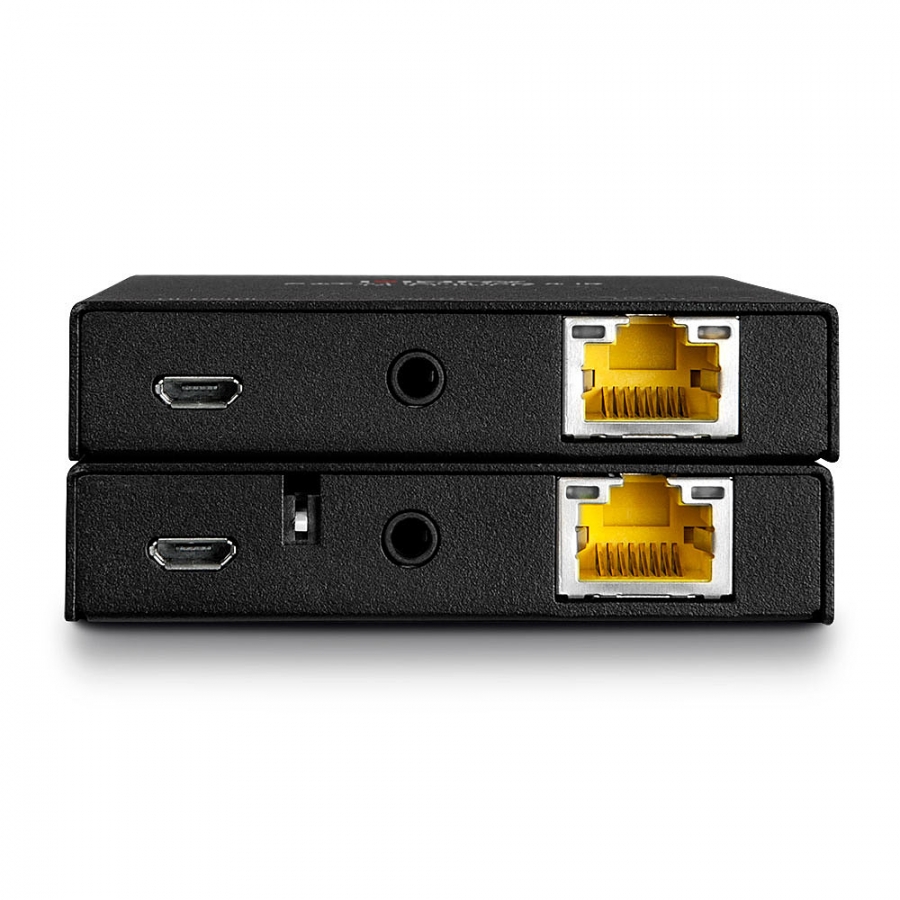

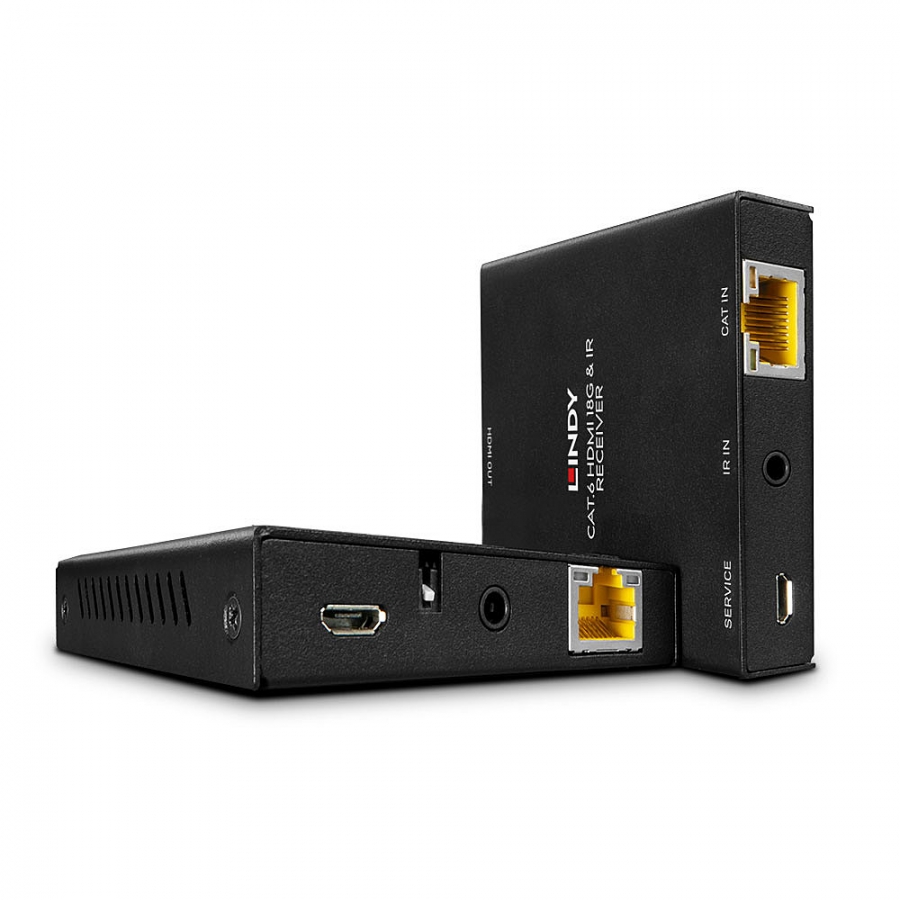

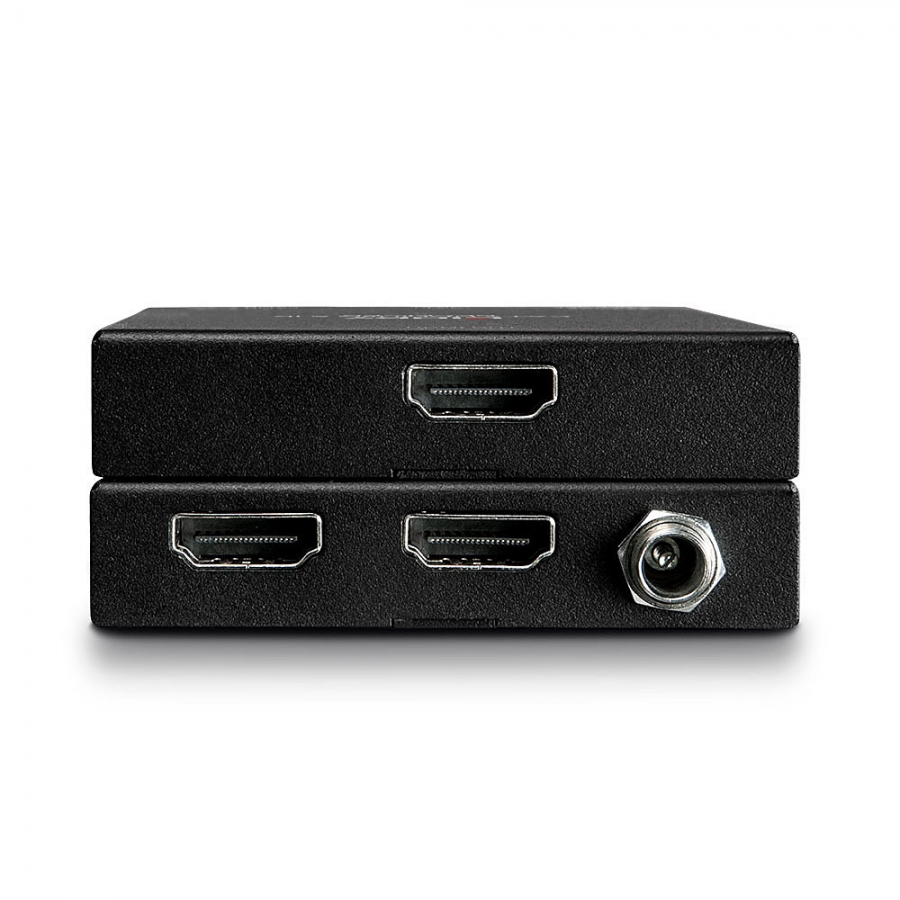

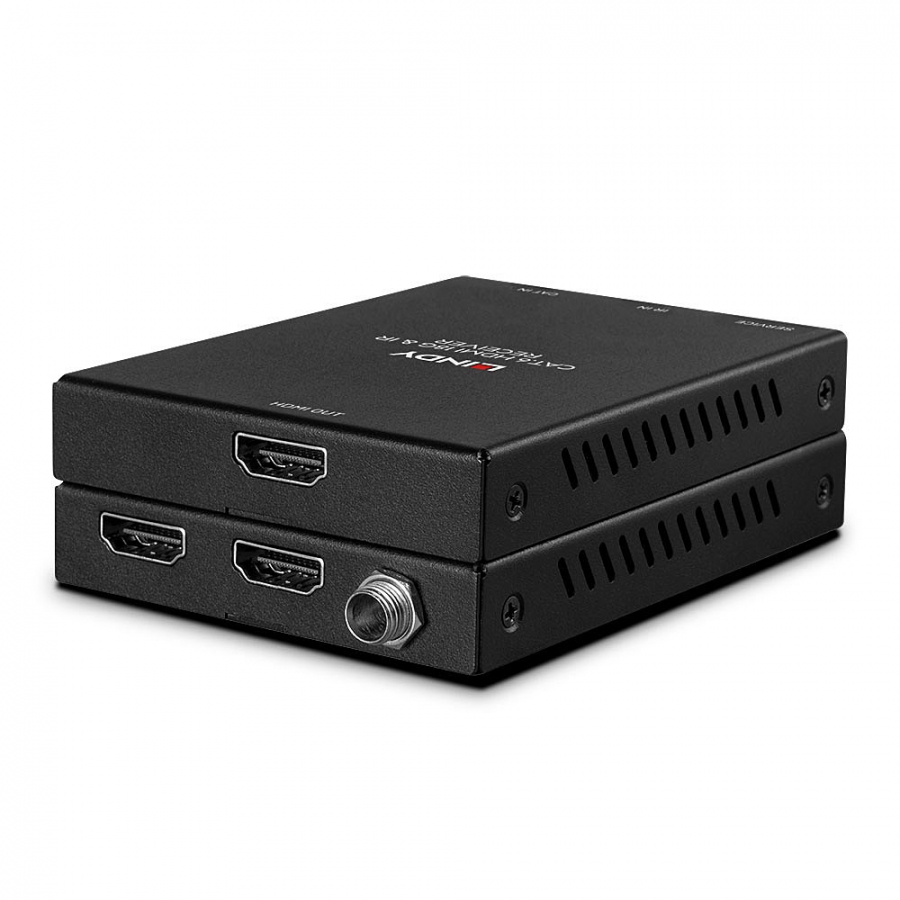

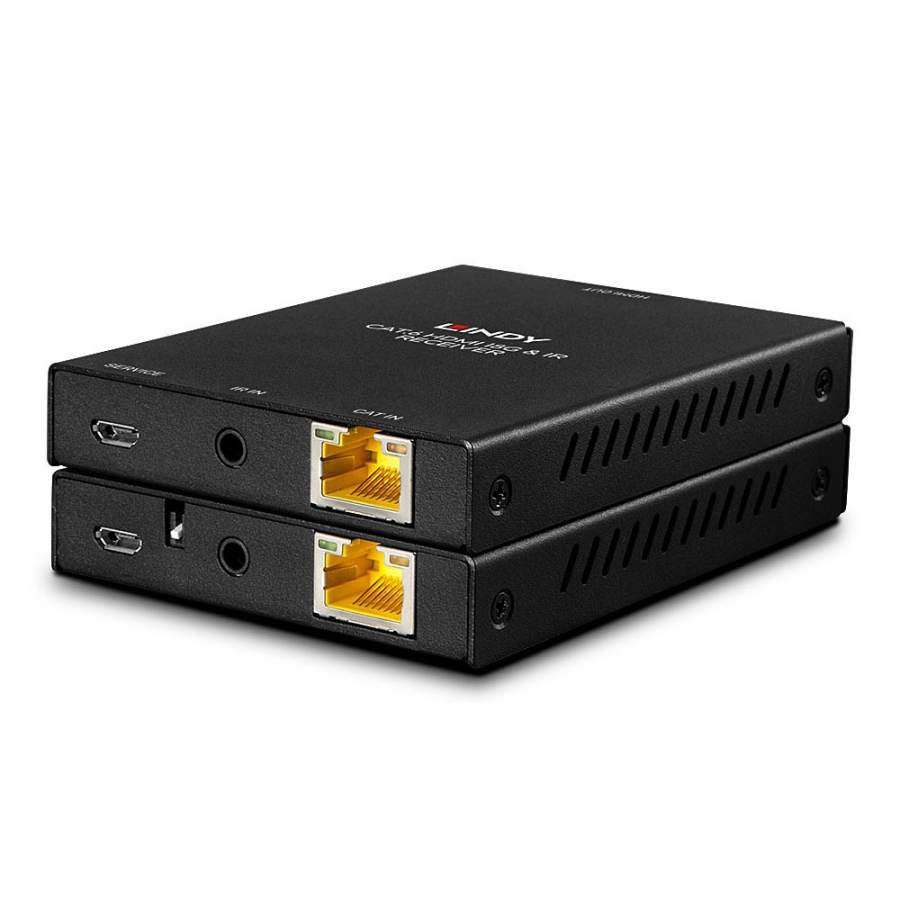

LINDY 50m Cat.6 18G HDMI & IR Extender

Lindy

38205

New

Extends 4K HDMI 18G signals over 50m distances with standard network cable Supports resolutions up to 3840x2160@60Hz 4:4:4 8bit, with support for HDR An HDMI loop-through output creates an additional viewing zone with a local display PoC (Power over Cable) functionality for power from a single power supply 2 year warrantyThe Lindy Cat.6 HDMI 4K60 & IR Extender with PoC is an effective, reliable solution for extending high quality 4K HDMI signals over distances up to 50m (164.04ft) with standard Cat.5e/6 network cable. Support for the HDMI 2.0 18G specification allows the transmission of highly detailed 4K Ultra HD resolutions. With support for High-Dynamic Range, video content can be seen with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut, perfect for a true home cinema experience or eye-catching digital signage in retail settings. HDCP 2.2 compliance allows 4K video content from copy protected sources such as Blu-Ray movies, media players and streaming services to be viewed without compatibility issues. Support for lossless audio formats including DolbyTrueHD and DTS-HD adds powerful multi-channel sound to video content, providing an enhanced experience and sense of realism for the viewer.The extender features an HDMI loop-through output on the transmitter which allows for simultaneous viewing using local and remote displays. This versatility provides a suitable solution for use in various scenarios such as educational presentation systems, home cinema, entertainment systems, or trade shows. The built in EDID dip switch enables the user to control which EDID is taken from either display, making installation and configuration simple ensuring maximum compatibility with HDMI displays and projectors. PoC allows both power and data signals over a Cat.6 cable in a point to point configuration, adding flexibility as only one power supply is required for both the transmitter and receiver units. Ideal when power outlets are limited.Featuring IR Pass-through, the source equipment can be seamlessly controlled from the remote displays side of the installation using compatible infrared remote controls. This provides simple and complete control for the user.Please note: This product is not designed to be used in conjunction with active network equipment and must only be used in a point to point connection.

TypeAV transmitter & receiver
Maximum resolution3840 x 2160 pixels
Cable types supportedCat5e, Cat6
Maximum transfer distance50 m
ChipsetSIL9396, SIL9630
Maximum refresh rate60 Hz
Extended display identification data (EDID)Y
IR pass-throughY
HDCP pass-throughY
Bandwidth18 Gbit/s
HDCPY
MaterialMetal
Product colourBlack
CertificationCE, FCC, REACH & California Proposition 65
Connectivity technologyWired
RJ-45 input ports1
RJ-45 output ports1
HDMI in1
Number of HDMI outputs2
HDMI version2.0
USB ports quantity2
USB connector typeMicro-USB
Remote (IR) input1
Remote (IR) output1
DC-in jackY
Operating voltage24 V
Input current1 A
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 90%
Receiver dimensions (WxDxH)70 x 15 x 97 mm
Receiver weight151 g
Transmitter dimensions (WxDxH)70 x 15 x 97 mm
Transmitter weight156 g
Package width220 mm
Package depth70 mm
Package height130 mm
Package weight605 g
Package typeBox
Cables includedIR
ManualY
Sustainability certificatesRoHS
