LINDY KVM Switch Pro 4Port HDMI 4K Quad View 4k-Konsole

Lindy

32329

New

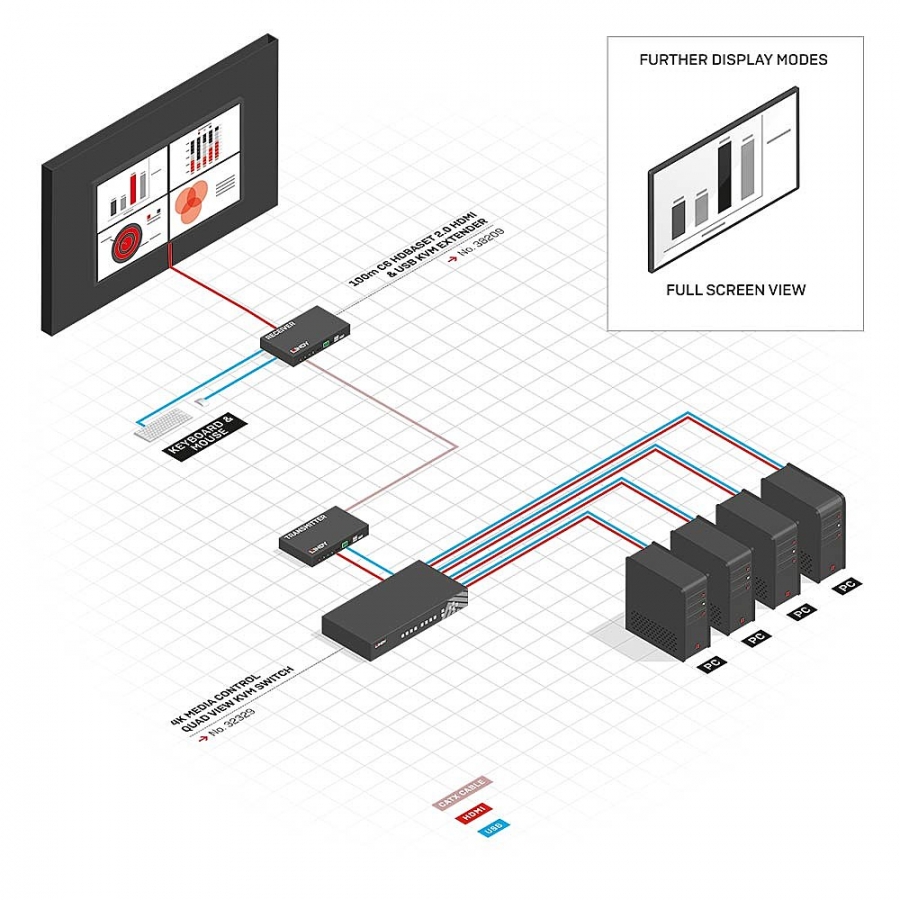

Allows you to connect up to 4 Full HD & USB HID source devices and be displayed and controlled at the same time from a 4K console Supports HDMI 2.0 4K@60Hz 4:4:4 8bit video resolutions & HDCP 1.4 on the output port Supports full screen mode with realtime 4K upscaling and seamless switching between the sources 2 Year WarrantyThis 4K HDMI KVM switch with Quad View feature is able to display 4 FullHD sources like PC, servers or DVR at the same time on a 4K display or projector and switch to a full screen mode with source video signal upscaling in realtime. The user is able to interact with each attached device by simply moving the mouse pointer from one quadrant to another and switch to a full screen view as needed by double clicking the mouse’s scroll wheel.It's also possible to increase the number of the controlled sourced installing one additional switch in a cascade configuration. Thanks to seamless switching capabilities switching from one source to another is completed instantly without any black screen or screen freezing, making it perfect for professional and mission critical applications such as a control room installation.

Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeHDMI
Console portsHDMI, USB A
HDMI ports quantity6
HDMI version2.0
USB 2.0 Type-B ports quantity4
Console USB ports quantity2
USB 2.0 Type-A hub ports quantity2
HD type4K Ultra HD
Maximum resolution3840 x 2160 pixels
HDCPY
Rack mountingY
Product colourBlack
Rack capacity1U
Housing materialMetal
CascadableY
CertificationCE, FCC, REACH
Power sourceDC
DC input voltage12 V
Input current5 A
Sustainability certificatesRoHS
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 90%
Width438 mm
Depth200 mm
Height44 mm
Weight2.7 kg
Package width570 mm
Package depth245 mm
Package height105 mm
Package weight3.64 kg
Package typeBox
ManualY
AC adapter includedY
Rack mount kitY
Harmonized System (HS) code85176200

KVM switches
