LINDY DVI-I Single Link USB 2.0 Audio KVM Switch Pro 8 Port

Lindy

39317

New

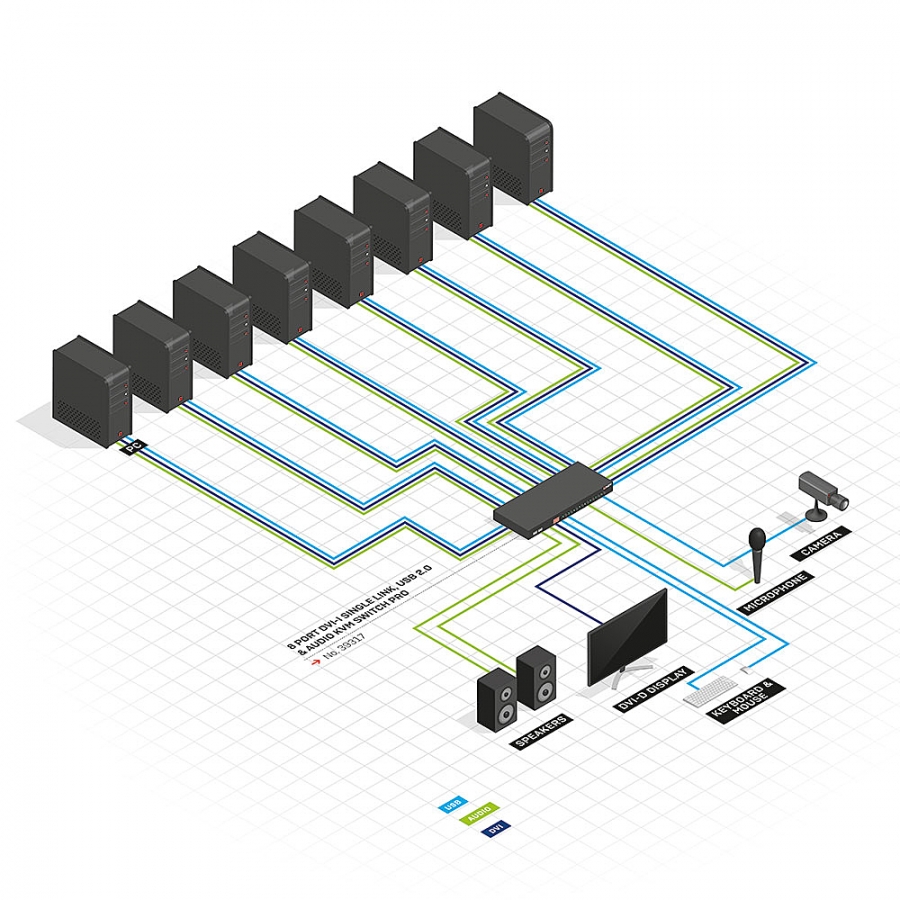

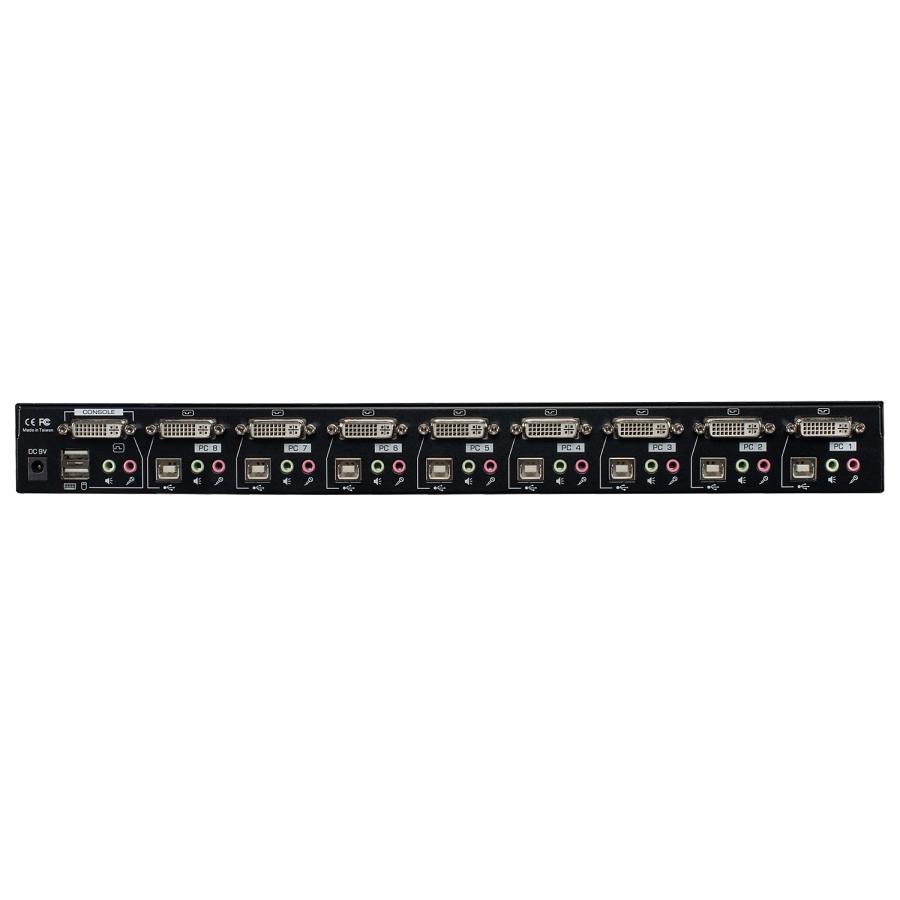

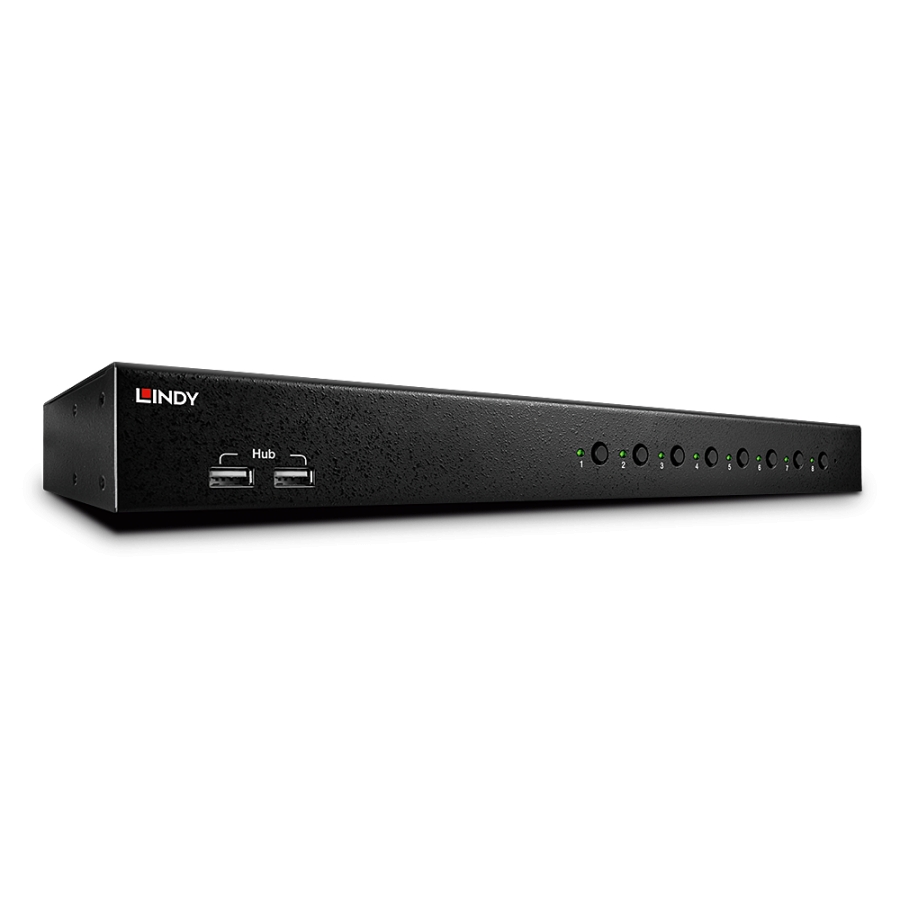

Supports up to 8 USB, DVI & Audio equipped computers Supports DVI-D resolutions up to 1920x1200 Built in 2 ports USB 2.0 Hub for sharing additional peripherals Port switching via hotkey or front panel buttons 2 year warrantyA KVM switch allows an operator to conveniently control and manage multiple devices, such as PCs and servers, from a single keyboard, mouse and display console.This advanced KVM Switch has been designed for use with PCs and Macs. It features DVI single link video ports and a two port USB 2.0 hub for connecting and sharing your peripherals. With full audio support, you can also connect your speakers and microphone.The switch occupies only a single 1U space in a 19” rack and supports screen resolutions of up to 1920x1200, great for ensuring optimum clarity if used in digital media or graphic design scenarios. It provides 2 simple switching modes, via keyboard hotkeys and front panel buttons.A local console can be connected to the 2 USB and DVI ports on the rear panel while the built-in 2 port USB 2.0 hub allows you to save money on additional devices by sharing peripherals between the connected computers. The unique switching arrangement allows the USB hub and the Audio ports to be switched independently of the PCs for uninterrupted listening, printing, scanning or external drive access. Options can be accessed only via keyboard hotkeys.LED indicators show status of connected computers and selected channel. The switch supports digital and analogue signals via DVI-I ports but it doesn't convert video signals; it only switches between all digital or all analogue signals. If used with analogue signals, the device supports VGA resolutions up to 2048x1536.Please Note: connection cables are not included. DVI, USB A to B, and 3.5mm microphone and speaker cables are required for each connected computer. The maximum supported distance for USB, using standard cables, is 5m. For distances over 5m, use a Lindy USB Active Extension Cable.

Number of computers controlled8
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDVI-I
Console portsDVI-I, USB A
DVI-I ports quantity8
Console USB ports quantity2
USB 2.0 ports quantity8
USB connector typeUSB Type-A, USB Type-B
USB version2.0
Audio connectionsY
Headphone outputs9
Number of microphone inputs9
DC-in jackY
Ethernet LANN
Maximum resolution1920 x 1200 pixels
Product colourBlack
LED indicatorsY
Built-in displayN
AC input voltage100-240 V
AC input frequency50 - 60 Hz
Output voltage9 V
Output current2 A
External power adapterY
Width410 mm
Depth110 mm
Height50 mm
Weight1.5 kg
Package weight2.2 kg
Harmonized System (HS) code85176200
