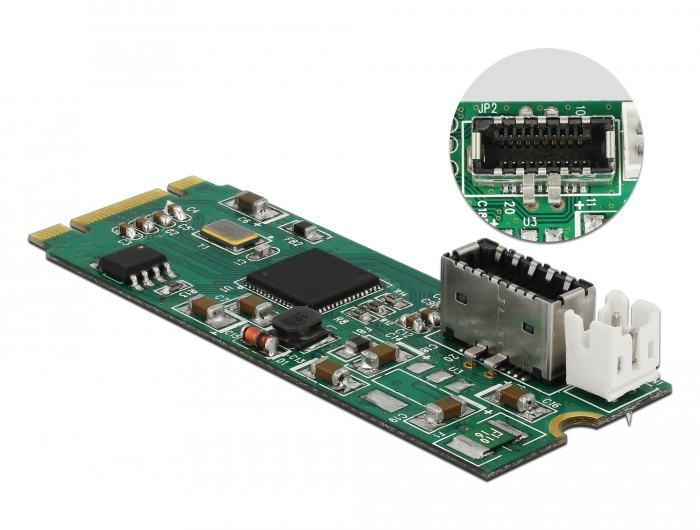

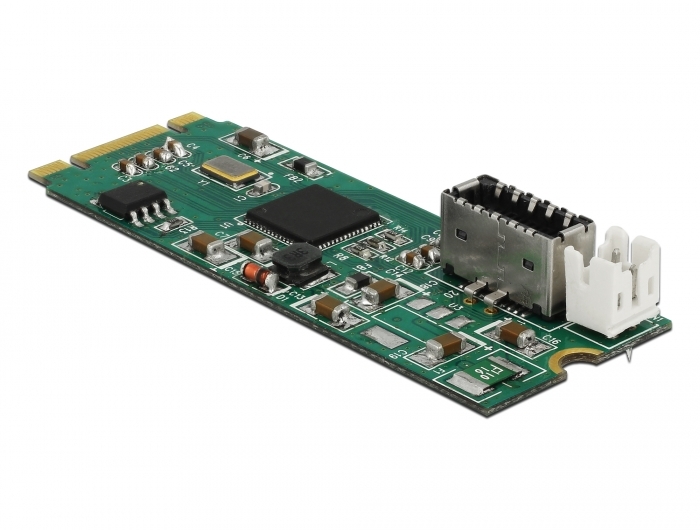

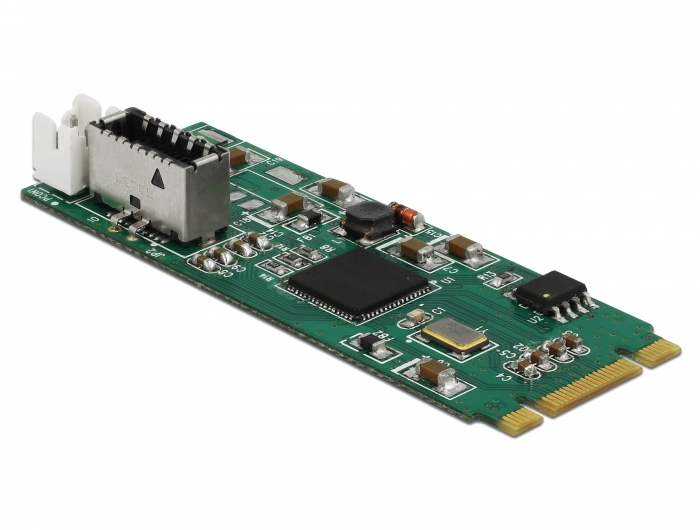

Delock Converter M.2 Key B+M male to 1 x internal USB 3.1 Gen 2 key A 20 pin female

DELOCK

63998

New

This converter by Delock expands the system by one USB 3.1 key A 20 pin female port. Various cables can be connected to the converter, to provide either one USB Type-C™ or one USB Type-A interface.
System requirements:
• Linux Kernel 4.9.4 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• One free M.2 key M or key B slot
Specification:
• Connectors:
  1 x 59 pin M.2 key B+M male >
  1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) key A 20 pin female
  1 x 4 pin power connector (optional)
• Chipset: Asmedia ASM2142
• Interface: PCIe
• Form factor: M.2 2260
• Suitable for M.2 slot with key M or B based on PCIe
• Data transfer rate up to 10 Gbps
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1
• Electrical power per port: max. 15 watt (5 V / 3 A)
• Dimensions (LxWxH): ca. 60 x 22 x 10 mm
Package content:
• Converter

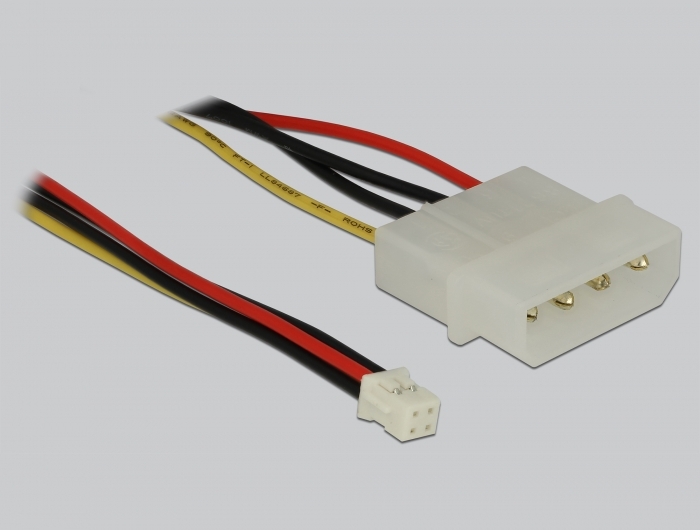

• Power cable 4 pin to Molex, length ca. 30 cm
• Mounting material
• Driver CD
• User manual
Data sheet:
http://www.delock.de/produkt/63998/pdf.html?sprache=en
