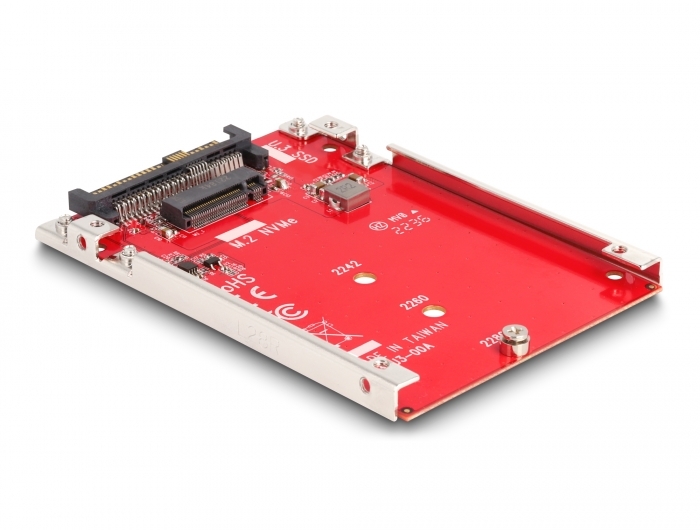

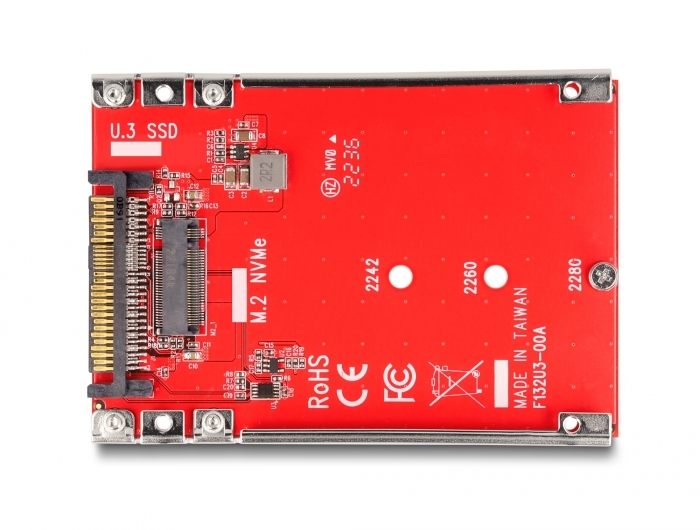

Delock 2.5″ Converter U.3 SFF-8639 to M.2 NVMe Key M - 7 mm

Reference 64228

Condition: New

More info

This Delock converter enables the connection of a M.2 SSD in 2280, 2260 and 2242 format. The converter can be installed into your system internally through the U.3 interface.

System requirements:
• Linux Kernel 5.15 or above
• Windows 8.1/8.1-64/10/10-64/11
• Windows Server 2019
• A free U.3 SFF-8639 interface

Specification:
• Connectors:
1 x U.3 SFF-8639 male
1 x M.2 key M slot
• Interface: PCIe x4 Rev. 4.0
• Supports M.2 modules in format 2280, 2260 and 2242 with key M or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• Supports NVM Express (NVMe)
• Bootable, ex UEFI version 2.3.1
• Maximum output power: 16.5 watt (3.3 V / 5 A)

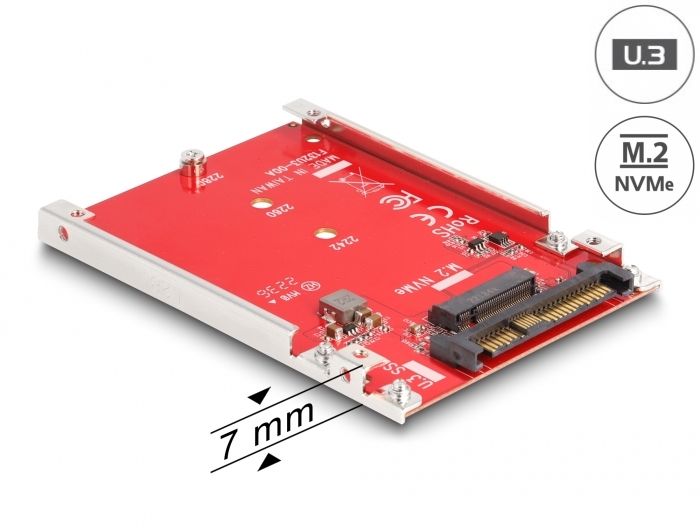

• Dimensions (LxWxH): ca. 100 x 70 x 7 mm

Package content:
• Converter

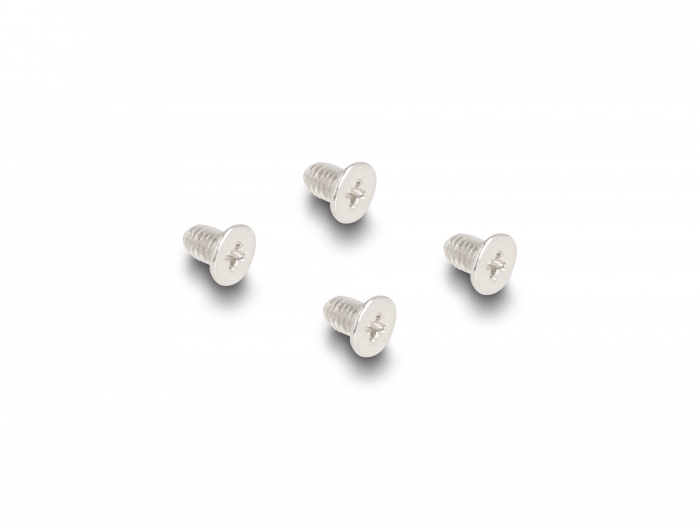

• 4 x screws for frame
• User manual

Data sheet:
http://www.delock.de/produkt/64228/pdf.html?sprache=en
