Delock Converter M.2 Key B+M male to 1 x Mini PCIe Slot half size / full size with flexible cable

Reference 64221

Condition: New

More info

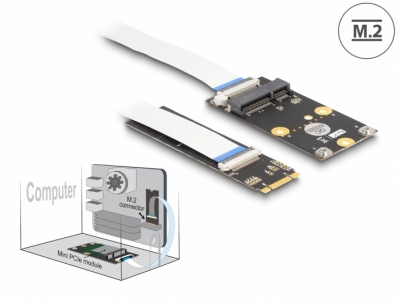

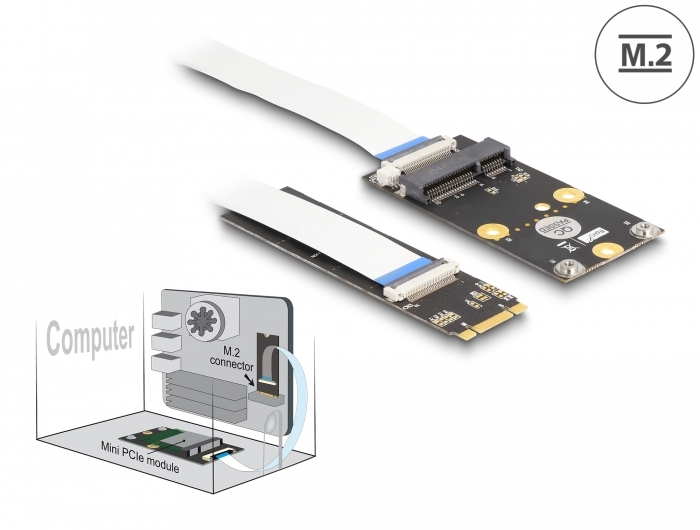

This converter by Delock changes the M.2 key B or key M interface into a Mini PCIe interface. Different Mini PCIe modules with USB and PCIe signals can be inserted in the converter. On the M.2 key B or key M interface can be used e.g. WLAN, Bluetooth, GNSS, 4G, 5G, HSPA and NFC modules. Further it is possible to use both functions of a module which has e.g. WLAN and Bluetooth.

System requirements:
• A free M.2 key B or key M slot

Specification:
• Connectors:
  1 x M.2 key B+M male
  1 x Mini PCIe slot
  1 x 2 pin pin header male for USB connection
• PCI Express Rev. 2.0
• Interface: PCIe + USB
• Form factor M.2: 2280
• Form factor Mini PCIe: half size and full size
• Suitable for M.2 slot with key M or B based on PCIe
• Dimensions (LxWxH):
  M.2 board: ca. 80 x 22 x 3 mm
  Mini PCIe board: ca. 66 x 32 x 5 mm

Package content:

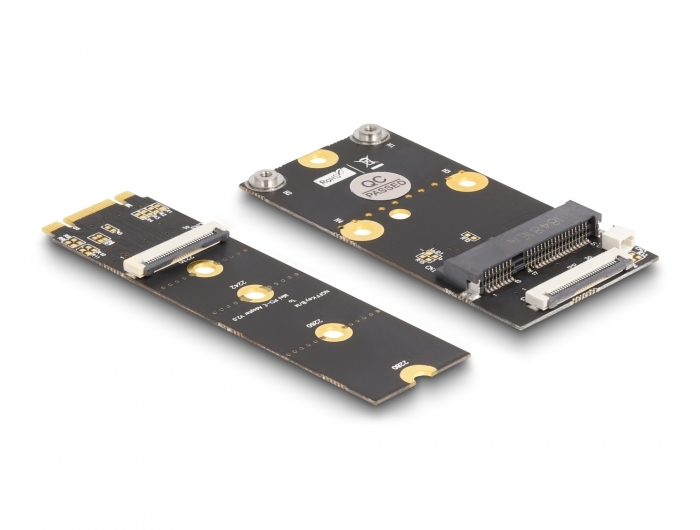

• Converter board M.2
• Mini PCIe board

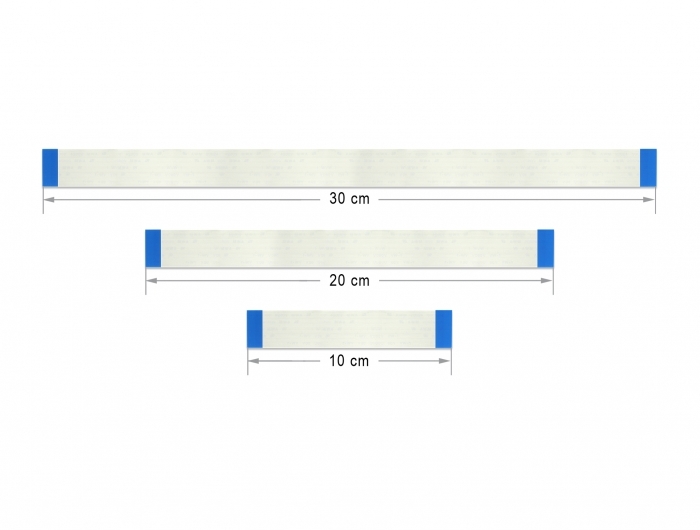

• 3 x flat cable, length ca.: 1 x 10 cm, 1 x 20 cm, 1 x 30 cm

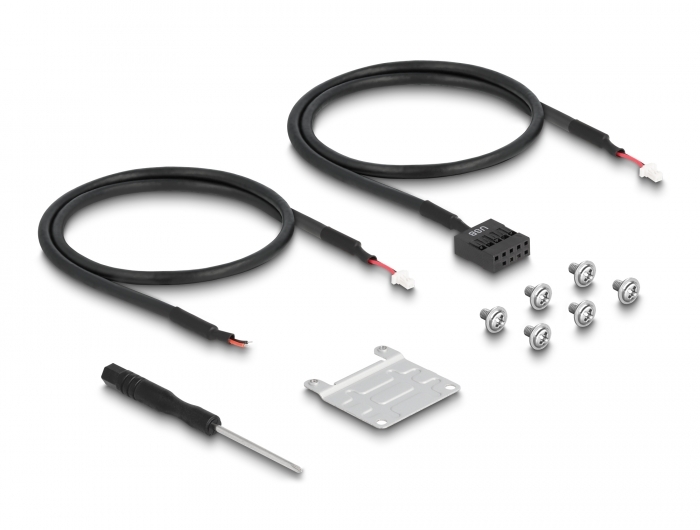

• Cable 2 pin to USB 2.0 pin header female, length ca. 40 cm
• Cable 2 pin to open ends, length ca. 40 cm
• Mini PCIe Extension
• Screws
• Screwdriver
• User manual
