Delock PCI Card 2 x Serial + 1 x Parallel

DELOCK

89004

New

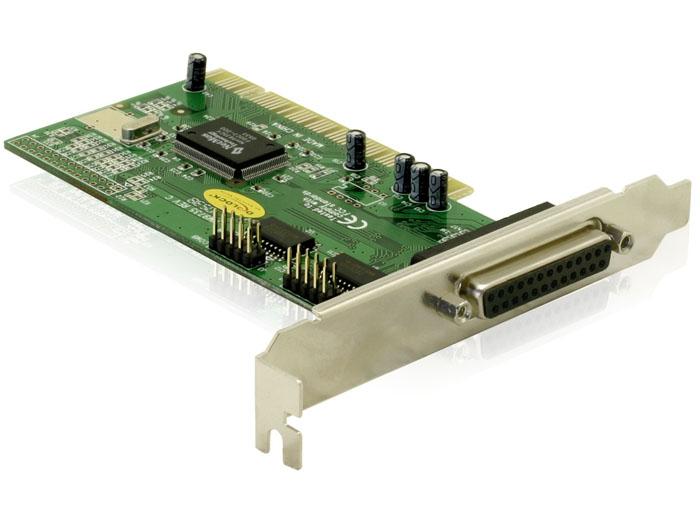

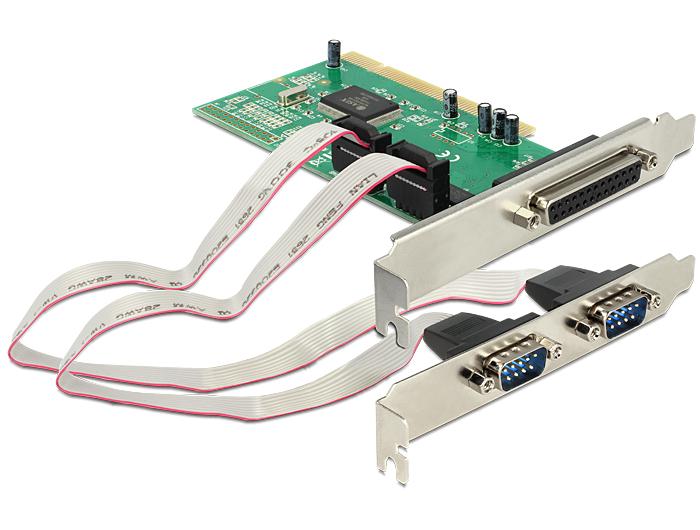

The Delock PCI card expands your PC by two external serial, also one external parallel ports. You can connect devices like scanner, printer, mouse etc. to the card.

More details

Description:
The Delock PCI card expands your PC by two external serial, also one external parallel ports. You can connect devices like scanner, printer, mouse etc. to the card.

Specification:
• Connector:
external:

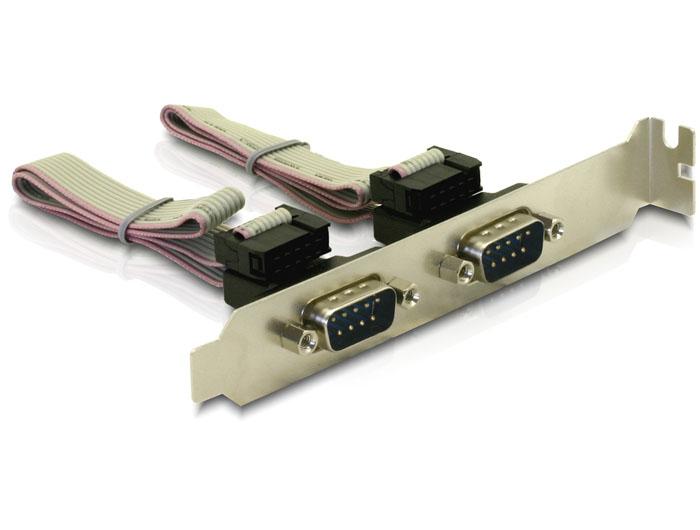

2 x serial RS-232 DB9 male (separate rear bracket)
1 x Parallel DB25 female
internal:
2 x 9 pin COM port pin header male
1 x 32-Bit PCI standard 2.1
• Chipset: ASIX MCS9835
• Data transfer rate:
serial up to 115.2 Kb/s
parallel up to 1.5 Mb/s
• FIFO: 16 byte
• Automatically selects IRQ and I/O
• SPP, PS2, EPP, ECP compatible to IEEE 1284
• Compatible with 16C550 UART
• Supports PCI IQR sharing

System requirements:
• Windows XP/XP-64/Server-2003/Vista/Vista-64/7/7-64/8/8.1,
Linux Kernel 2.6
• PC with one free PCI slot and one rear slot

Package content:
• PCI card
• Rear bracket
• Driver CD
• User manual

PCI card
