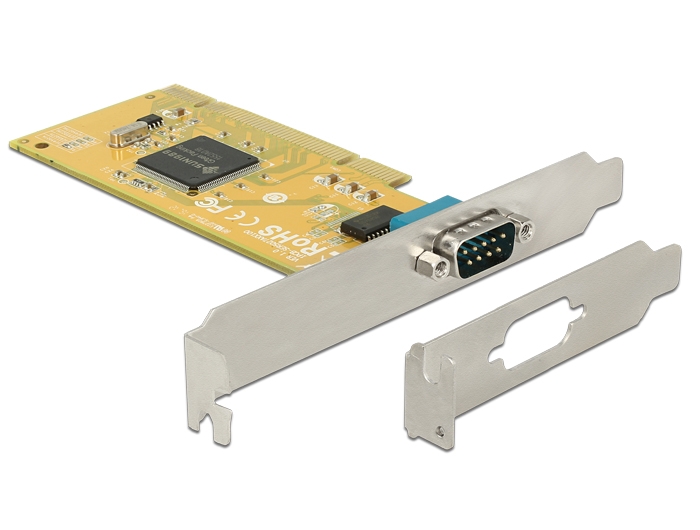

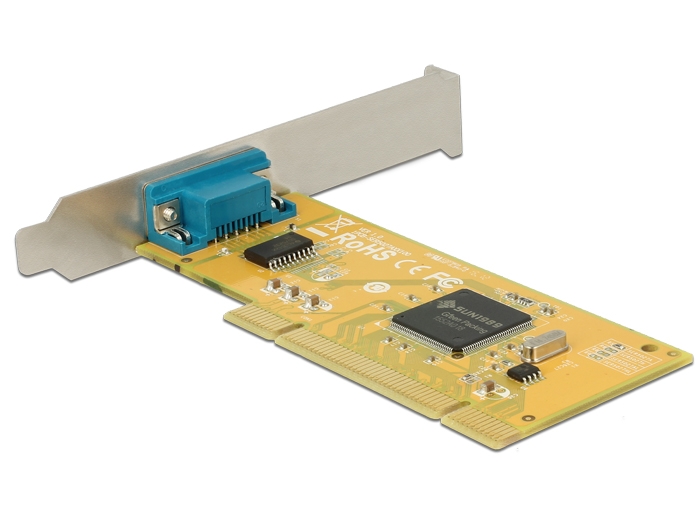

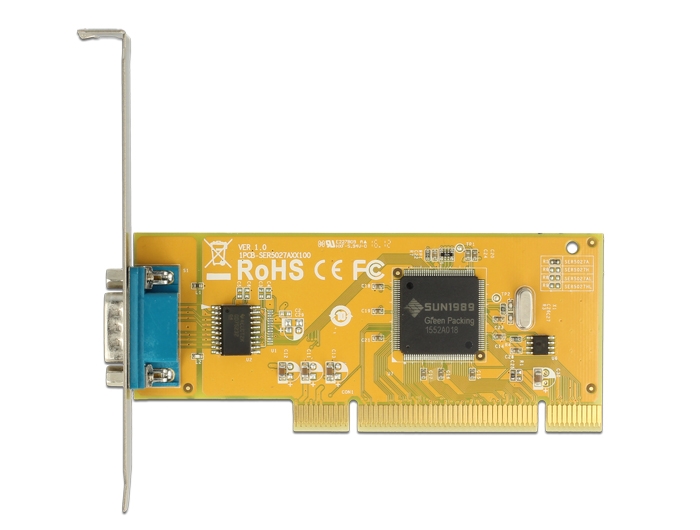

Delock PCI Card > 1 x Serial RS-232

Reference 89592

Condition: New

More info

• Anschlüsse: extern: 1 x Seriell RS-232 DB9 Stecker intern: 1 x PCI 33MHz, V3.0/2.3/2.2/2.1 • Chipsatz: SUNIX • ESD 2 kV • Serielle Spezifikation: • Datentransferrate bis zu 115,2 Kb/s • FIFO: 128 byte • Kompatibel mit 16C950 UART • Windows 7/7-64/8.1/8.1-64/10/10-64

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 2.6.38
• PC with one free PCI slot

Specification:
• Connectors:
external: 1 x serial RS-232 DB9 male
internal: 1 x 32-bit PCI Standard 3.0
• Chipset: SUN1989
• Compliance with PCI 33 MHz Ver. 3.0/2.3/2.2./2.1 specification
• Supports both 64-bit & 32-bit PCI bus slots and 3.3 V & 5 V power
• Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
• ±2 kV ESD protection for all serial signals
• Data transfer rate up to 115.2 Kb/s
• FIFO: 128 byte
• Compatible with 16C950 UART
• Operating temperature: 0 °C ~ 60 °C
• Humidity: 5 % ~ 95 %

Package content:
• PCI card
• 1 x low profile bracket
• Driver CD
• User manual
