Delock Converter M.2 Key B+M male > 2 x Gigabit LAN – Low Profile Form Factor

DELOCK

63425

New

This converter by Delock expands the system by two RJ45 Gigabit LAN ports.
System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, ex Linux Kernel 4.9.4
• One free M.2 key B or key M slot
Specification:

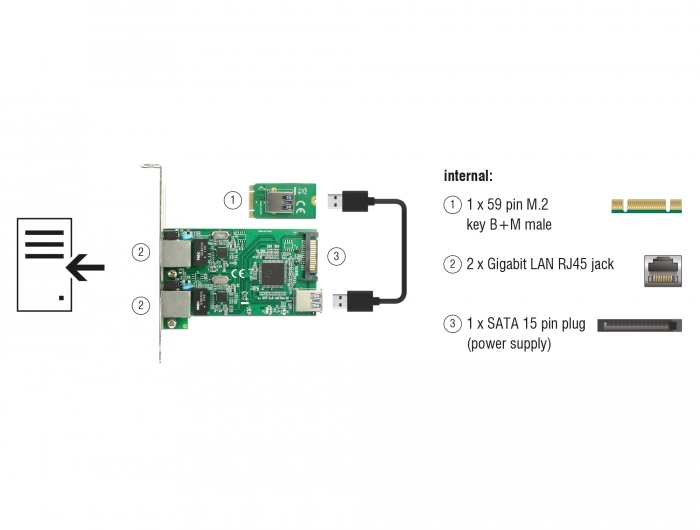

• Connectors:
  1 x 59 pin M.2 key B+M male >
  2 x Gigabit LAN RJ45 jack
  1 x SATA 15 pin plug (power supply)
• Chipset: Realtek RTL8111, Pericom PI17C9X2G304
• Interface: PCIe 2.0
• Form factor: M.2 2242
• Suitable for M.2 slot with key M or B based on PCIe
• Data transfer rate:
  Ethernet up to 10 Mbps (Half/Full Duplex)
  Fast Ethernet up to 100 Mbps (Half/Full Duplex)
  Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
• Network specification:
  - Compatible with:
    IEEE 802.3: 10BASE-T
    IEEE 802.3u: 100BASE-TX
    IEEE 802.3ab: 1000BASE-T
  - Support Auto MDI-X (automatic detection of standard or crossover network cable)
  - Supports IEEE 802.3az (Energy Efficient Ethernet)
  - Support full duplex operation with IEEE 802.3x flow control
  - Supports IEEE 802.1P layer 2 priority encoding
  - Supports IEEE 802.1Q insertion und removal
• Supports Jumbo Frame up to 9k
• LED indicator for power and Ethernet connection
• Cable length: ca. 1 m
Package content:
• M.2 converter
• LAN card
• Low profile bracket
• Driver CD
• Cable USB Type-A male to Type-A male
• User manual
Data sheet:
http://www.delock.de/produkt/63425/pdf.html?sprache=en
