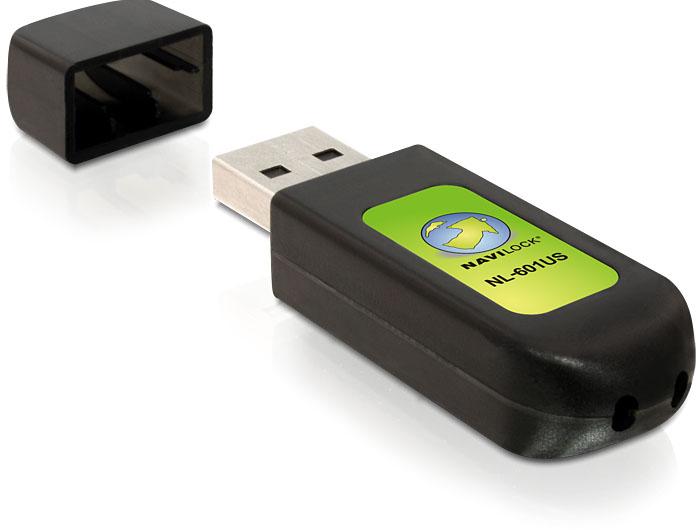

Navilock NL-601US USB 2.0 GPS Receiver

NAVILOCK

60123

New

Description:


Specification:
• u-blox 6 GPS SuperSense® high performance chipset
• Frequency: L1, 1575.42 MHz, C/A Code: 1.023 MHz
• Accepts the signals of up to 50 satellites at the same time
• Supports AGPS, WAAS, EGNOS and MSAS
• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
• USB specification 2.0
• Baud Rate up to 115200
• UP-DATE Rate: up to 5 Hz
• Sensibility max. –162dBm
• LED-indicator for GPS-status
• Operating temperature: -20 °C to +60 °C
• Cold start in about 25 sec.
• Hot start in about 1 sec.
• Positioning accuracy: 2.5 m CEP (Circular Error Probable) and
2 m CEP with SBAS
• Dimension (LxWxH): 65.5 mm x 23 mm x 11 mm

System requirements:
• Linux ex Kernel 2.6, Windows 98SE/ME/2000/XP/Vista/7/8/10,
Windows Mobile 2003/5/6
• PC or Notebook with a free USB Port

Package content:
• USB GPS receiver
• USB extension cable
• Driver CD
• User manual on CD ROM
