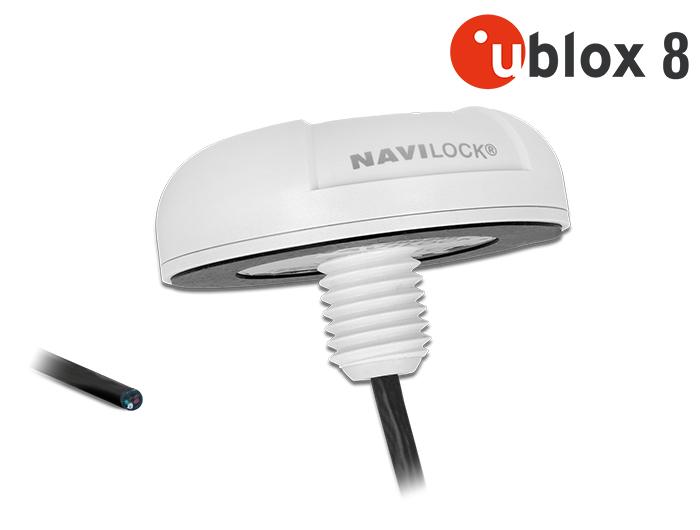

NL-8004P Open Cable Ends serial RS-232 PPS Multi GNSS Receiver u-blox 8 55 cm

NAVILOCK

625272

New

The serial RS-232 multi GNSS receiver based on u-blox 8 chipset has a built-in antenna for high sensitivity. You can use this GNSS receiver with a laptop and a suitable routing software for navigation. The NL-8044P GNSS receiver can be installed onto different vehicle roofs (car, truck, bus etc.) by using the included installation material. Thus it can perfectly fit into the vehicle concept, d...

More details

Description:
The serial RS-232 multi GNSS receiver based on u-blox 8 chipset has a built-in antenna for high sensitivity. You can use this GNSS receiver with a laptop and a suitable routing software for navigation. The NL-8044P GNSS receiver can be installed onto different vehicle roofs (car, truck, bus etc.) by using the included installation material. Thus it can perfectly fit into the vehicle concept, due to its design.

Specification:
• Connector: open cable ends
• Chipset: u-blox 8 UBX-M8030-KT
• Frequency:
GPS: L1, 1575.4200 MHz
GLONASS: L1, 1602.5625 - 1615.5000 MHz
BEIDOU COMPASS: B1, 1561.0980 MHz
GALILEO: E1, 1575.4200 MHz
QZSS: L1, 1575.4200 MHz
• Accepts the signals of up to 72 satellites at the same time
• Supports AssistNow online / offline, SBAS (WAAS, EGNOS, QZSS and MSAS)
• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
• Auto Baud Rate up to 115200 bps
• PPS signal on pin 6
• Update rate:
single GNSS: 18 Hz (e.g. GPS solo)
multi GNSS: 10 Hz (e.g. GPS+GLONASS)
• Sensibility max. -167 dBm
• IPX7 protection class
• Operating temperature: -20 °C ~ 60 °C
• Power supply: 5 V DC
• Current consumption: max. 45 mA
• Cold start: ca. 26 seconds
• Hot start: ca. 1 second
• Positioning accuracy: 2.5 m CEP (Circular Error Probable) and 2 m CEP with SBAS
• Cable length: ca. 55 cm
• Dimensions (Ø x H without screw thread): ca. 62 mm x 21 mm

System requirements:
• Windows Vista/7/8/8.1/10, Linux Kernel 2.6

Package content:
• Serial RS-232 receiver
• Mounting material: stainless steel nut and washer
• Navilock support CD incl. driver and user manual
