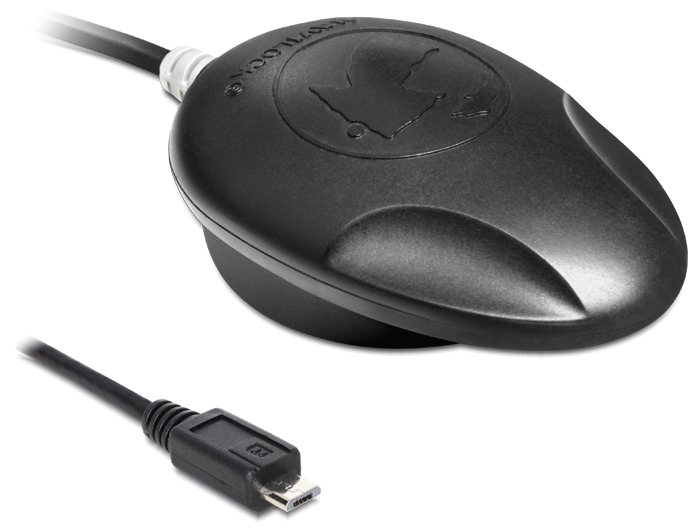

Navilock NL-8001UOTG Micro USB 2.0 OTG Multi GNSS Receiver u-blox 8 1.5 m

NAVILOCK

62872

New

The USB 2.0 Multi GNSS OTG Receiver based on u-blox 8 chipset has a built-in antenna for high sensitivity. It can be used as a GNSS Receiver with a mobile device and a suitable routing software for navigation.
System requirements:
• Windows Vista/7/8/8.1/10, Linux Kernel 2.6
• A free OTG USB Micro-B female port
Specification:
• Connector: USB 2.0 Type Micro-B OTG male
• Chipset: u-blox 8 UBX-M8030-KT
• Frequency:
  GPS: L1, 1575.4200 MHz
  GLONASS: L1, 1602 (k x 0.5625) MHz
  BEIDOU COMPASS: B1, 1561.0980 MHz
  GALILEO: E1, 1575.4200 MHz
  QZSS: L1, 1575.4200 MHz
• Accepts the signals of up to 72 satellites at the same time
• Supports AssistNow online / offline, SBAS (WAAS, EGNOS, QZSS and MSAS)
• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
• Auto Baud Rate up to 115200 bps
• Update rate:
  single GNSS: 18 Hz (e.g. GPS solo)
  multi GNSS: 10 Hz (e.g. GPS+GLONASS)
• Sensibility max. -167 dBm
• IPX6 protection class
• Magnetic, non-slip on the bottom
• LED-indicator for GPS status
• Operating temperature: -20 °C ~ 60 °C
• Power supply: 5 V DC
• Current consumption: max. 45 mA
• Cold start in ca. 26 seconds
• Hot start in ca. 1 second
• Positioning accuracy: 2.5 m CEP (Circular Error Probable) and 2 m CEP with SBAS
• Cable length: ca. 1.5 m
• Dimensions (LxWxH): ca. 65 x 45 x 22 mm

Microsoft Sensor and Location Platform (Website)
• Profit from Windows applications (e.g. weather, maps, etc)
• Supporting the GNSS location platform API (32 bit)
Package content:
• USB 2.0 receiver
• Navilock support CD incl. driver and user manual
Data sheet:
http://www.navilock.de/produkt/62872/pdf.html?sprache=en
