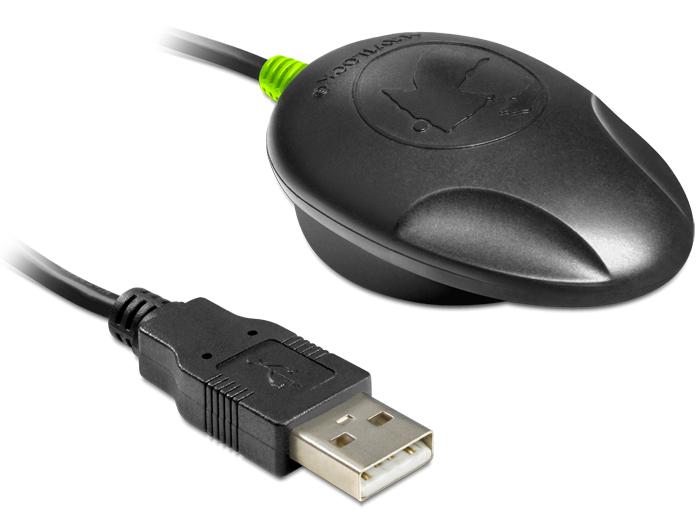

NL-82012U USB 2.0 Multi GNSS UDR Receiver u-blox NEO-M8U 4.5 m

NAVILOCK

62758

New

The USB 2.0 Multi GNSS UDR receiver by Navilock based on u-blox NEO-M8U chipset has a built-in active antenna as well as high-sensitivity sensors such as a 3D accelerometer and a 3D gyroscope. In conjunction with a laptop, a reliable position determination is also possible when the GNSS signal is interrupted.

More details

Description:
The USB 2.0 Multi GNSS UDR receiver by Navilock based on u-blox NEO-M8U chipset has a built-in active antenna as well as high-sensitivity sensors such as a 3D accelerometer and a 3D gyroscope. In conjunction with a laptop, a reliable position determination is also possible when the GNSS signal is interrupted.

Specification:
• Connector: USB 2.0 Type-A male
• Chipset: u-blox NEO-M8U
• Frequency:
GPS: L1, 1575.4200 MHz
GLONASS: L1, 1602 (k x 0.5625) MHz
BEIDOU COMPASS: B1, 1561.0980 MHz
GALILEO: E1, 1575.4200 MHz
QZSS: L1, 1575.4200 MHz
• Accepts the signals of up to 72 satellites at the same time
• Supports AssistNow online / offline, SBAS (WAAS, EGNOS, QZSS and MSAS)
• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
• Supports UDR from NMEA 4.1
• Auto Baud Rate up to 115200 bps
• Update rate: up to 20 Hz
• Sensibility max. -160 dBm
• IPX6 protection class
• Magnetic, non-slip on the bottom
• LED-indicator for GPS status
• Operating temperature: -20 °C ~ 60 °C
• Cold start in ca. 26 seconds
• Hot start in ca. 1 second
• Positioning accuracy: 2.5 m CEP (Circular Error Probable) and 2 m CEP with SBAS
• Cable length: ca. 4.5 m
• Dimensions (LxWxH): ca. 65 x 45 x 22 mm

Microsoft Sensor and Location Platform (Website)
• Profit from Windows applications (e.g. weather, maps, etc)
• Supporting the GNSS location platform API (32 bit)

System requirements:
• Windows Vista/7/8/8.1/10, Linux Kernel 2.6
• PC or laptop with a free USB Type-A port
• For devices with OTG function and optional OTG adapter: Windows 10

Package content:
• USB 2.0 receiver
• Navilock support CD incl. driver and user manual
