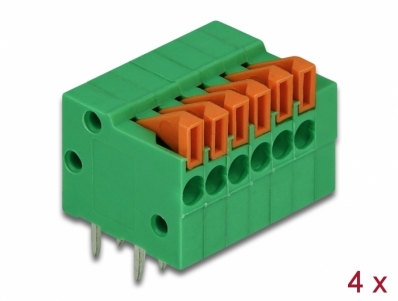

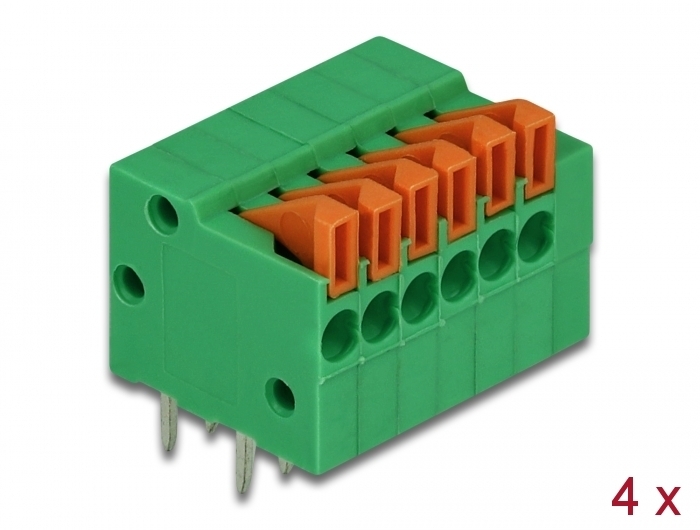

Delock Terminal block with push button for PCB 6 pin 2.54 mm pitch horizontal 4 pieces

DELOCK

66340

New

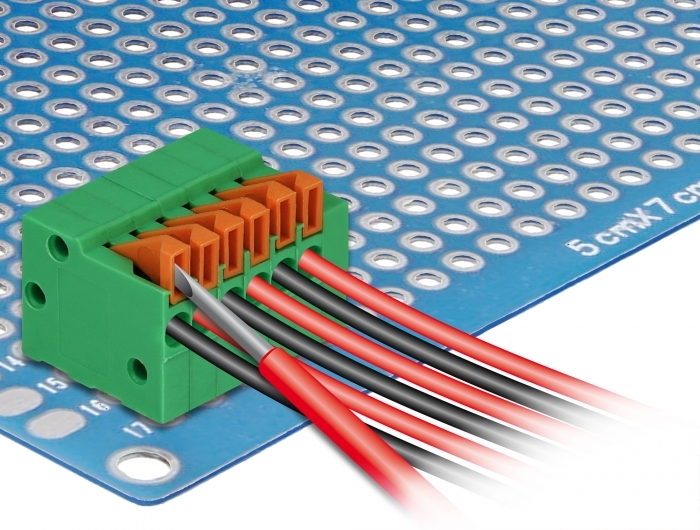

This terminal block by Delock is suitable for the solder mounting on a PCB. Furthermore, data or power cables can be connected via the terminal block.
Specification:
• Connectors:
  1 x 6 pin terminal block with push button
  2 x 6 soldering pin
• Pitch: 2.54 mm
• Environmental temperature: -40 °C ~ 105 °C
• Useable for a cable gauge from 24 to 20 AWG
• Withstanding voltage: AC 1250 V / 1 minute
• Rated voltage according to: UL: 150 V, IEC: 130 V
• Rated current according to: UL: 2 A, IEC: 6 A
• Material: plastic
• Colour: green / orange
• Dimensions (LxWxH): ca. 17.8 x 13.8 x 12.9 mm
Package content:
• 4 x Terminal block
Data sheet:
http://www.delock.de/produkt/66340/pdf.html?sprache=en
