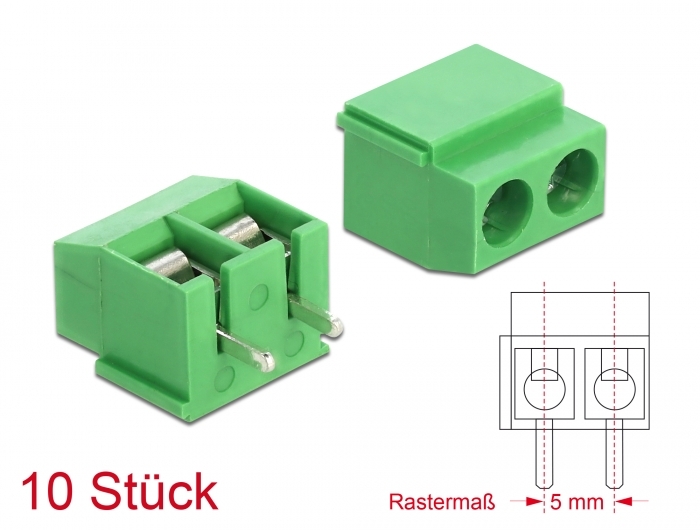

Delock Terminal block for PCB soldering version 2 pin 5.00 mm pitch vertical 10 pieces

DELOCK

65982

New

This terminal block by Delock is suitable for the mounting on a PCB. This can be soldered on a board, to create a screw connection. Furthermore, data or power cables can be connected via the terminal block.
Specification:
• Connectors:
  1 x 2 pin terminal block screw terminal
  1 x 2 soldering pin

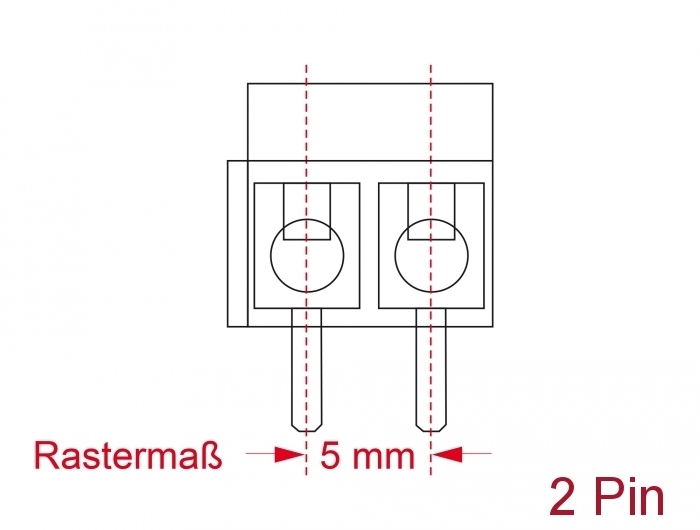

• Pitch: 5.00 mm
• Environmental temperature: -40 °C ~ 105 °C

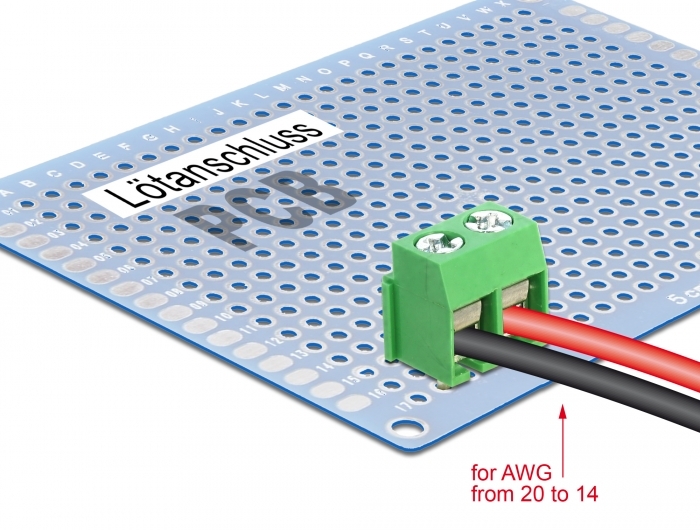

• Useable for a cable gauge from 20 to 14 AWG
• Withstanding voltage: AC 2000 V / 1 min
• Rated voltage according to: UL: 300 V, IEC: 250 V
• Rated current according to: UL: 10 A, IEC: 18 A
• Insulation resistance: 500 MΩ / DC 500 V
• Material: plastic
• Colour: green

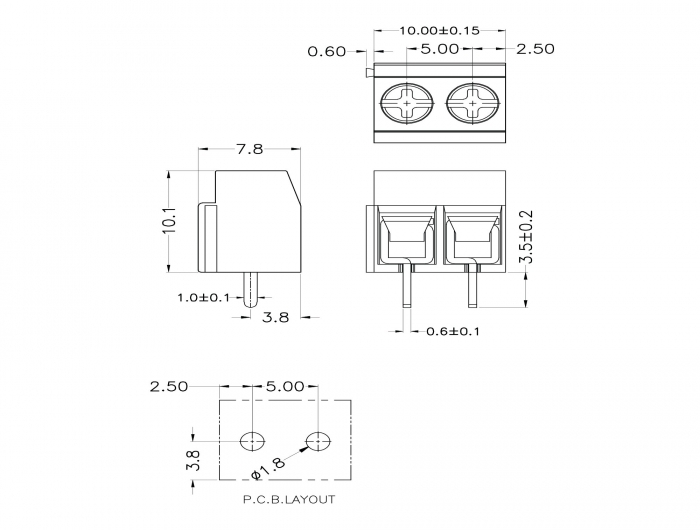

• Dimensions (LxWxH): ca. 10,1 x 10,0 x 7,8 mm
Package content:
• 10 x Terminal block
Data sheet:
http://www.delock.de/produkt/65982/pdf.html?sprache=en
