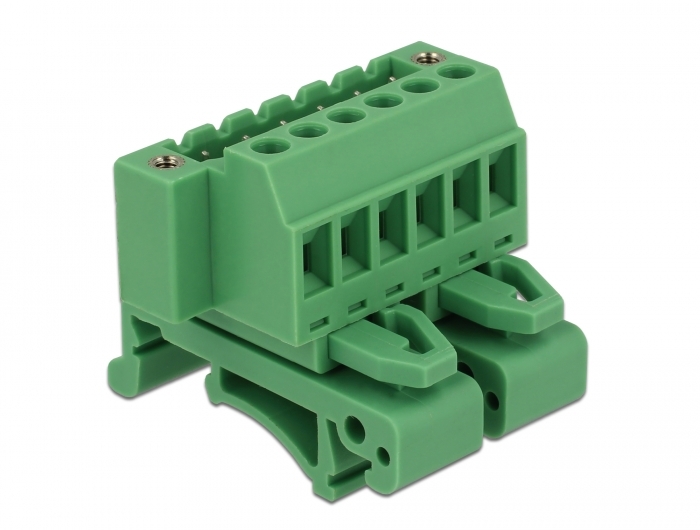

Delock Terminal block set for DIN rail 6 pin with screw lock

DELOCK

65942

New

This terminal block set by Delock is suitable for the mounting on a DIN rail. Thus data or power cables can be connected via the terminal block.
Specification:
• Connectors:
  Terminal block:
  1 x 6 pin terminal block male
  1 x 6 pin terminal block
  Connection terminal:

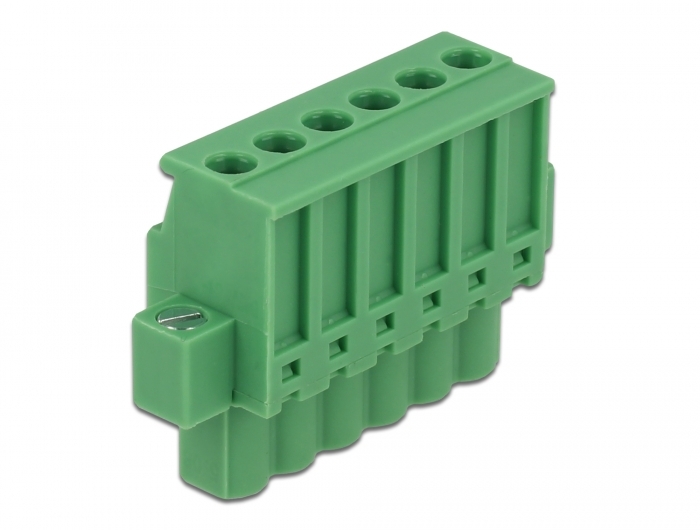

  1 x 6 pin terminal block female
  1 x 6 pin terminal block
• Pitch: 5.08 mm
• Environmental temperature: -40 °C ~ 105 °C
• Useable for a cable gauge range from 24 to 12 AWG

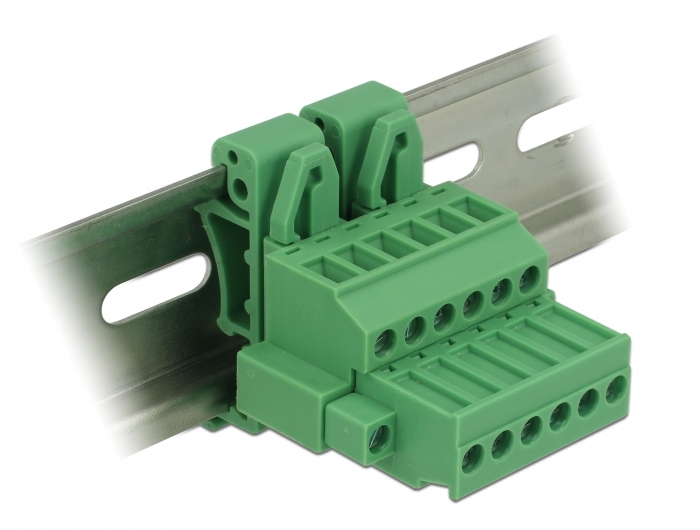

• DIN rail mounting: 35 mm
• Material: plastic
• Colour: green
• Dimensions (LxWxH): ca. 42.50 x 34.90 x 41,50 mm

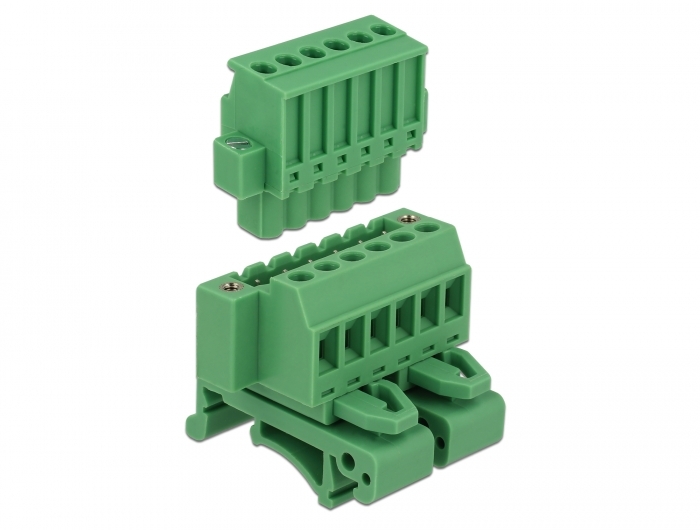

Package content:
• Terminal block
• DIN rail clip
• Connection terminal
Data sheet:
http://www.delock.de/produkt/65942/pdf.html?sprache=en
