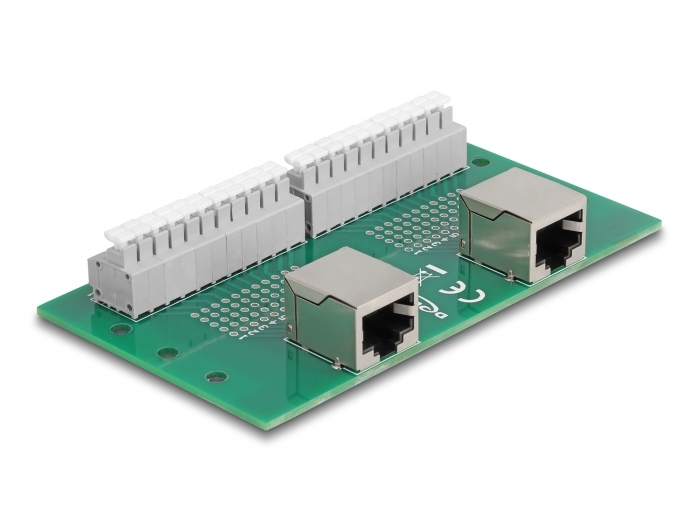

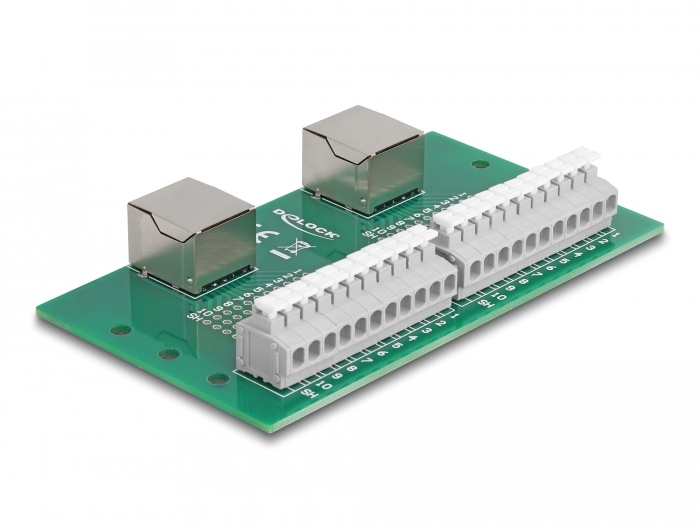

Delock RJ50 2 x female to 2 x Terminal Block with push-button for DIN rail

DELOCK

67014

New

This adapter by Delock can be used to connect various control and measuring devices. Strands with stripped ends can be connected via the terminal block toolfree.

DIN rail mounting

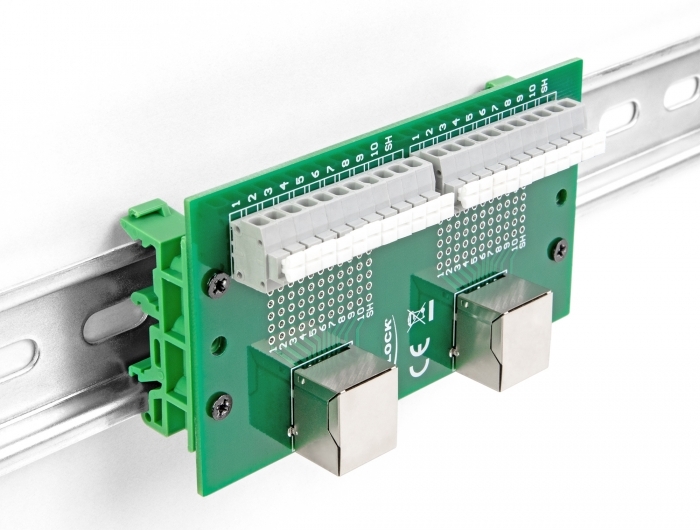

With the clips included in the delivery content, the adapter can be attached to a 15 mm or 35 mm wide DIN rail.
System requirements:
• Two free RJ50 male
• 15 mm or 35 mm DIN rail
Specification:
• Connectors:
  2 x RJ50 jack
  2 x 11 pin terminal block
• Pin assignment: 1:1
• Pitch: 3.81 mm
• Useable for a cable gauge from 24 to 12 AWG
• DIN rail mounting: 15 mm and 35 mm
• Operating temperature: -40 °C ~ 100 °C
• Dimensions (LxWxH): ca. 91 x 60 x 18 mm
Package content:
• Adapter

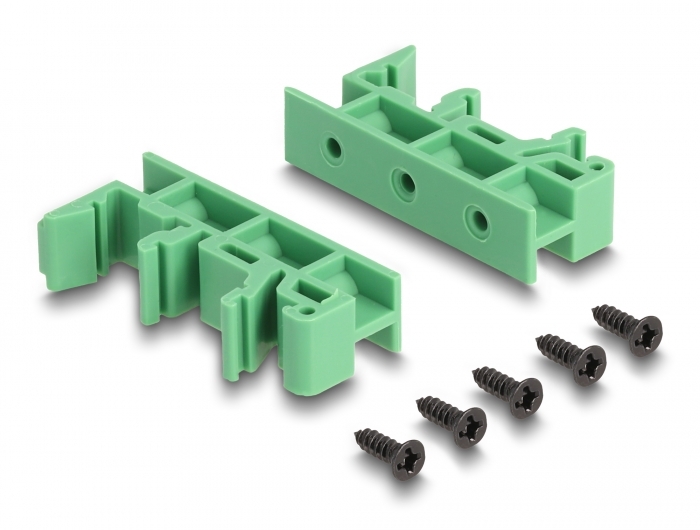

• 2 x DIN rail clip
• 5 x screws
Data sheet:
http://www.delock.de/produkt/67014/pdf.html?sprache=en
