Level One LevelOne NVR-0508 8-Kanal Netzwerk Videorek. PoE H.265/264

Kods NVR-0508

Condition: Jauns

Vairāk informācijas

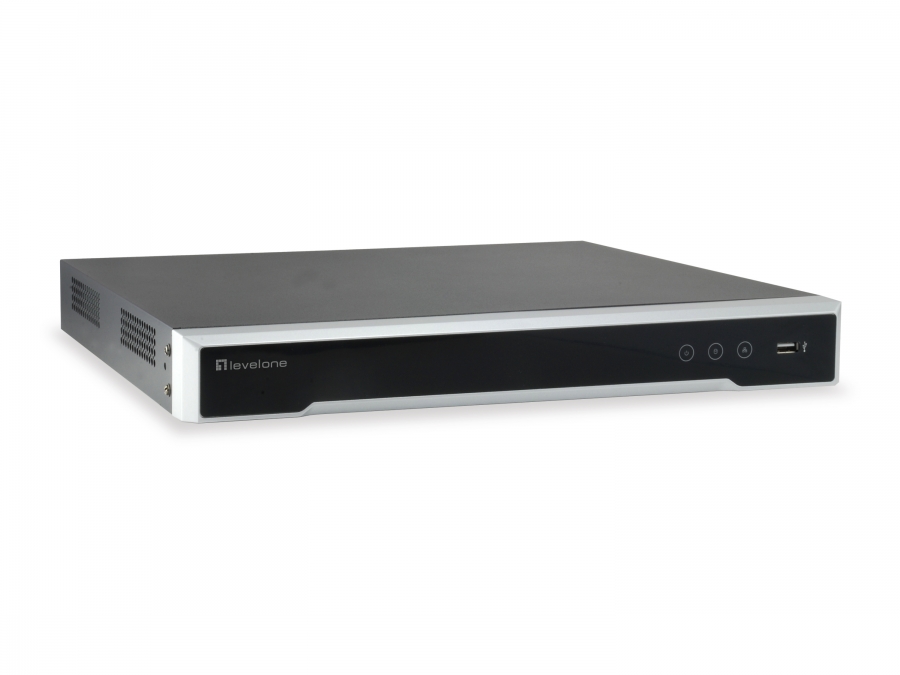

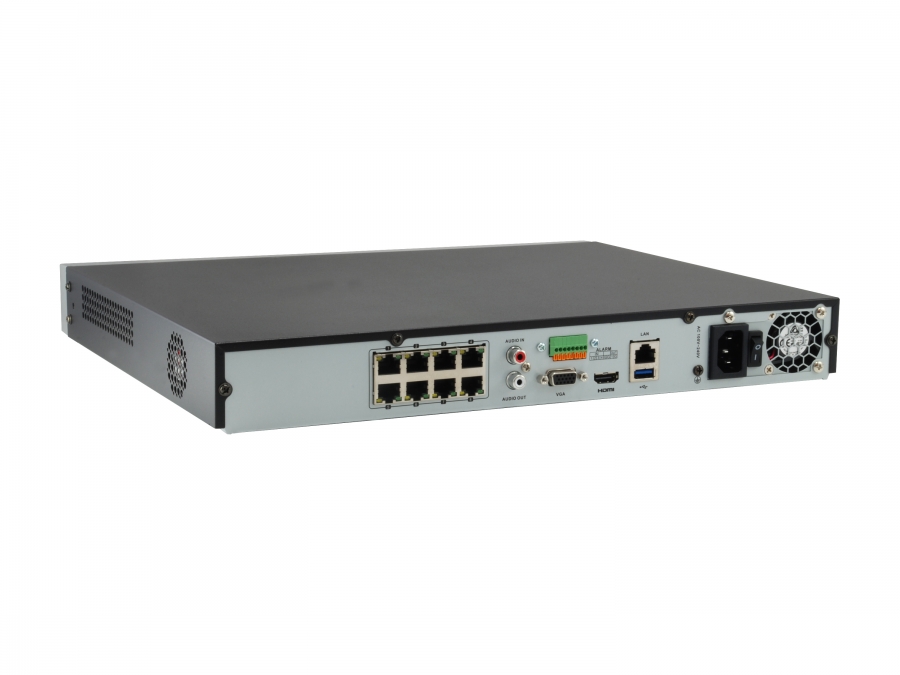

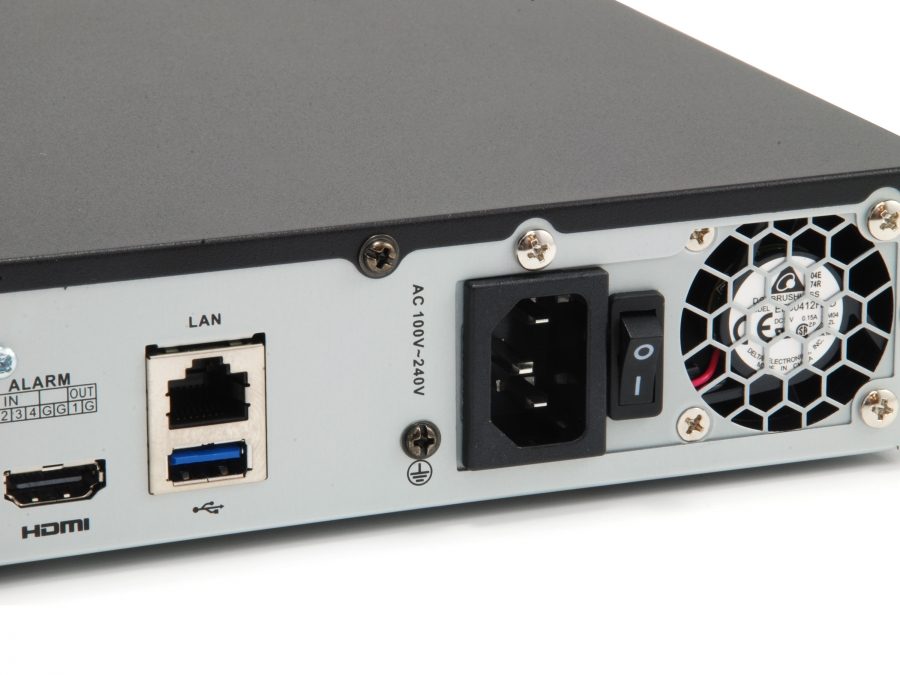

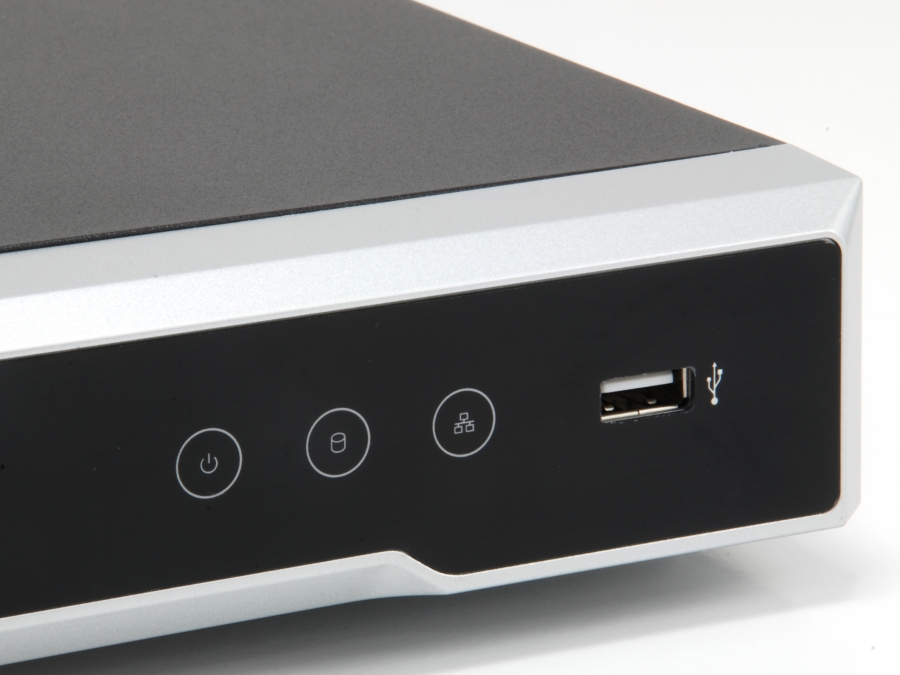

The LevelOne NVR-0508 NVR enables live view, recording and playback for up to 8 IP network cameras at the same time, featuring up to 8-megapixel resolution and H.265/H.264+/H.264/MPEG4 video compression. Operation is easy and intuitive via the web browser interface (IE), enabling remote monitoring and functionality. Mobile device operations are also supported (iOS/Android), with remote viewing via the LevelOne NVR app.The NVR also features built-in HDMI, VGA and USB ports for peripheral devices such as a monitor, mouse or keyboard, allowing users to operate directly from the NVR without the cost of adding a PC to the deployment. 2 HDD bays complete the package, with a disk capacity of up to 6TB making the LevelOne NVR-0508 a powerful, smart and cost-effective solution for managing your security network.An integrated 8-port 802.3at PoE switch enables the NVR to run both power and data on the one cable to power up connected PoE cameras.Central Management System (CMS) software is included for free, with no license fees. The CMS is capable of managing up to 256 NVRs, making it suitable for large scale surveillance applications.

Video input channels	8 channels
Maximum resolution	3840 x 2160 pixels
Video recording modes	720p, 1080p
Number of users	64 user(s)
Video formats supported	H.264, H.264+, H.265, MPEG4
Operating system installed	Embedded LINUX
Throughput data rate	160 Mbit/s
Number of fans	1 fan(s)
Wi-Fi	N
Maximum storage capacity	12 TB
HDD interface	Serial ATA
Number of HDDs supported	2
Ethernet LAN (RJ-45) ports	9
Power over Ethernet (PoE)	Y
Ethernet LAN data rates	10,100,1000 Mbit/s
Power over Ethernet (PoE) ports quantity	8
HDMI output	Y
VGA (D-Sub) output ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Audio RCA inputs	1
Audio RCA outputs	1
Networking standards	IEEE 802.3at
Supported network protocols	TCP,UDP,IPv4,IPv6,Http,Https,SMTP,NTP,SNTP
Rack mounting	Y
LED indicators	Alarm, HDD, Power
On/off switch	Y
Product colour	Black
Compatible products	Onvif camera
Country of origin	China
Certification	CE, FCC, ISO9001, ISO14001, uL
Power consumption (typical)	180 W
AC input voltage	100 - 230 V
Browser supported	Internet Explorer 9+
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90%
Width	315 mm
Depth	52 mm
Height	385 mm
Weight	3 kg
Package width	435 mm
Package depth	450 mm
Package height	387 mm
Package type	Box
Package weight	3.23 kg
Cables included	AC
AC adapter included	Y
CD manual	Y
Master (outer) case width	548 mm
Master (outer) case length	450 mm
Master (outer) case height	412 mm
Master (outer) case gross weight	14.1 kg
Products per master (outer) case	4 pc(s)
