Level One LevelOne NVR-0504 4-Kanal Netzwerk Videorek. PoE H.265/264

Kods NVR-0504

Condition: Jauns

Vairāk informācijas

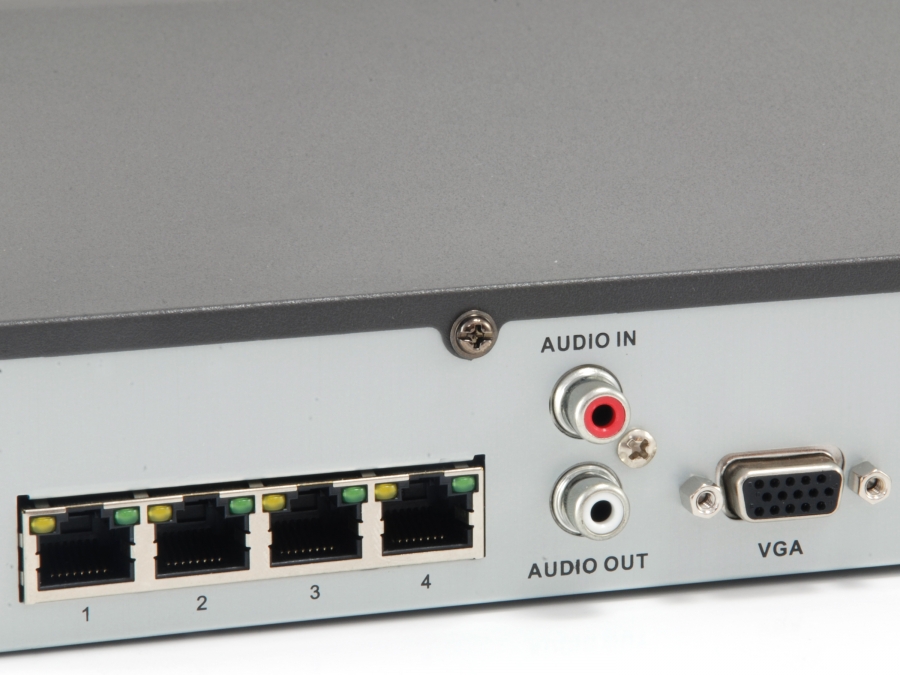

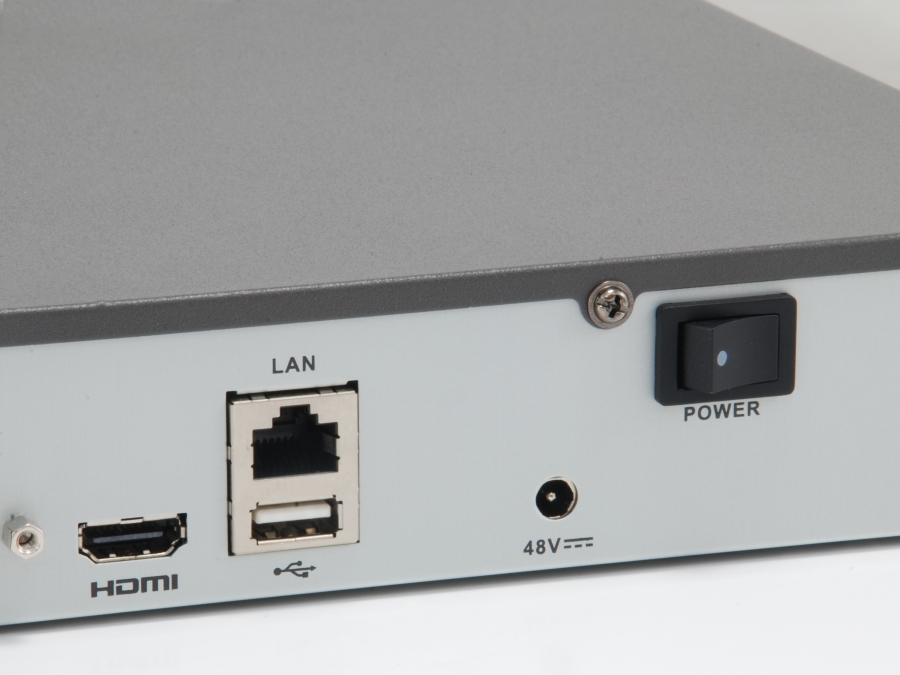

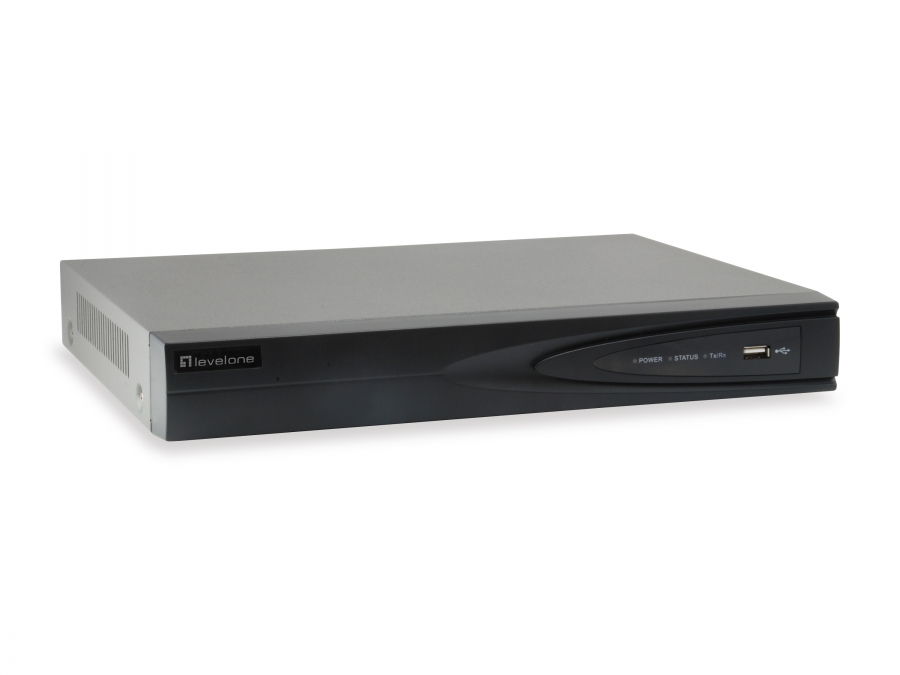

The LevelOne NVR-0504 NVR enables live view, recording and playback for up to 4 IP network cameras at the same time, featuring up to 8-megapixel resolution and H.265/H.264+/H.264 video compression. Operation is easy and intuitive via the web browser interface (IE), enabling remote monitoring and functionality. Mobile device operations are also supported (iOS/Android), with remote viewing via the LevelOne NVR app.The NVR also features built-in HDMI, VGA and USB ports for peripheral devices such as a monitor, mouse or keyboard, allowing users to operate directly from the NVR without the cost of adding a PC to the deployment. One HDD bay completes the package, with a disk capacity of up to 6TB making the LevelOne NVR-0504 a powerful, smart and cost-effective solution for managing your security network.An integrated 4-port 802.3at PoE switch enables the NVR to run both power and data on the one cable to power up connected PoE cameras.Central Management System (CMS) software is included for free, with no license fees. The CMS is capable of managing up to 256 NVRs, making it suitable for large scale surveillance applications.

Video input channels	4 channels
Maximum resolution	3840 x 2160 pixels
Number of users	32 user(s)
Video formats supported	H.264, H.265, MPEG4
Operating system installed	Embedded LINUX
Throughput data rate	80 Mbit/s
Maximum storage capacity	6 TB
Number of HDDs supported	1
HDD size	3.5"
Ethernet LAN (RJ-45) ports	4
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) ports quantity	4
HDMI output	Y
HDMI ports quantity	1
VGA (D-Sub) output ports	1
USB 2.0 ports quantity	2
Audio RCA inputs	1
Audio RCA outputs	1
Networking standards	IEEE 802.3at
Supported network protocols	TCP,UDP,IPv4,IPv6,Http,Https,SMTP,NTP,SNTP

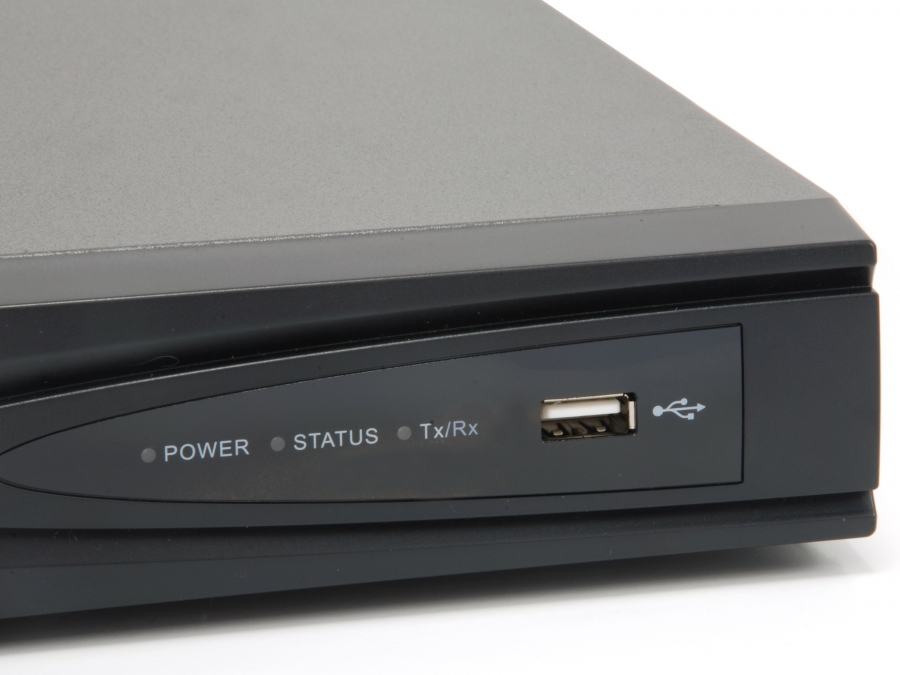

LED indicators	HDD, Power
On/off switch	Y
Product colour	Black
Country of origin	China
Certification	CE, FCC, ISO9001, ISO14001
Power consumption (typical)	65 W
Mobile operating systems supported	Android, iOS
Browser supported	Internet Explorer 9+
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90%
Sustainability certificates	RoHS
Width	240 mm
Depth	48 mm
Height	315 mm
Weight	1 kg
Package width	485 mm
Package depth	290 mm
Package height	85 mm
Package type	Box
Package weight	1.15 kg
Cables included	AC
AC adapter included	Y
CD manual	Y
Master (outer) case width	723 mm
Master (outer) case length	503 mm
Master (outer) case height	313 mm
Master (outer) case gross weight	12.8 kg
Products per master (outer) case	8 pc(s)
