Level One LevelOne WL-Antenne WAN-9180 18dBi 5,0GHz Outdoor

LEVEL ONE

WAN-9180

Jauns

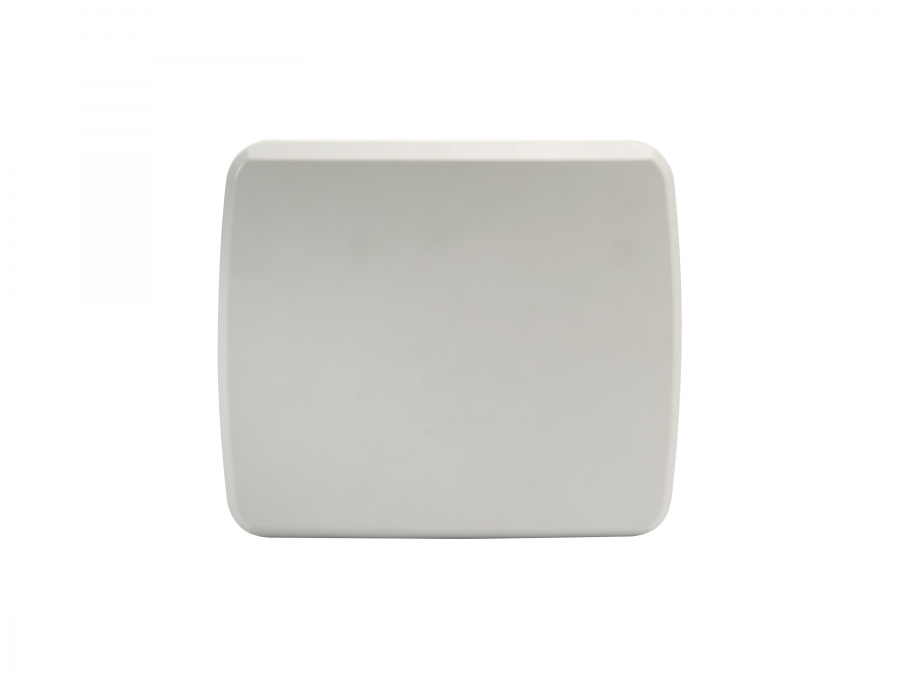

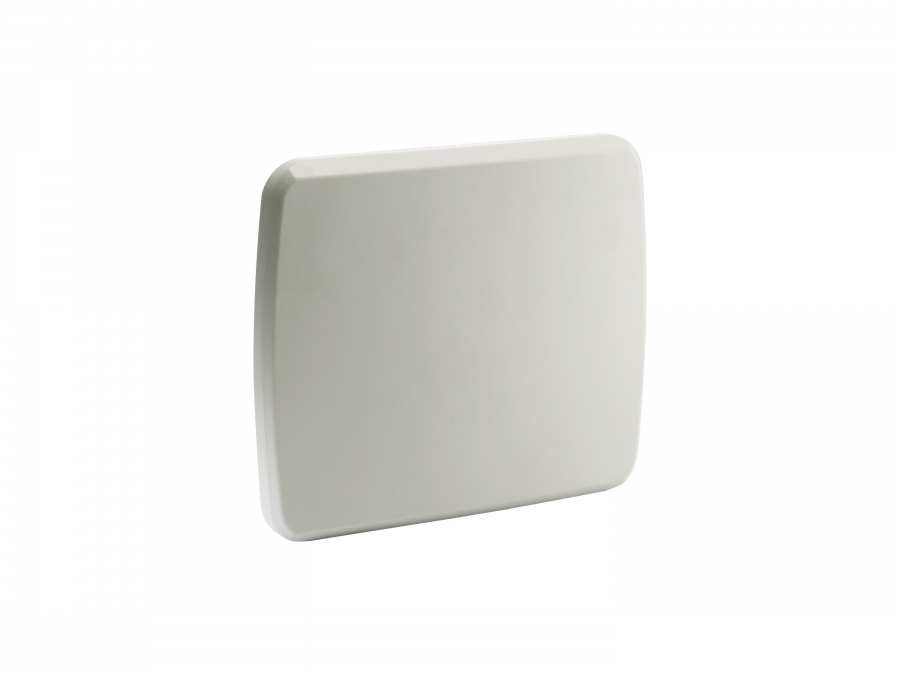

The LevelOne WAN-9180 18dBi Directional Dual-Polarization antenna is designed for outdoor wireless connections. With array pattern located at +45° and -45° polarization, you can improve signal strength in a crowded area with possible signal interference. It improves signal strength and coverage in 5GHz band, towards a concentrated enhanced direction.This panel antenna is easy to mount and install on flat areas such as wall or window. Designed for outdoor elevated installation with high sustainability in strong wind. With IP-67 rating, it is completely protected against dust and humidity ingress.- Operates in 5GHz band, according to IEEE 802.11a/n specifications - Antenna diversity at 18dBi high gain performance - Dual-Polarization to avoid interference - Easy to install on the wall surface - Wideband frequency performance enables future growth and increases flexibility

Antenna gain level (max)18 dBi
Frequency band5.15 - 5.875 GHz
Networking standardsIEEE 802.11a, IEEE 802.11n
Impedance50 Ω
Horizontal beam width15°
Vertical beam width15°
Antenna typeDirectional antenna

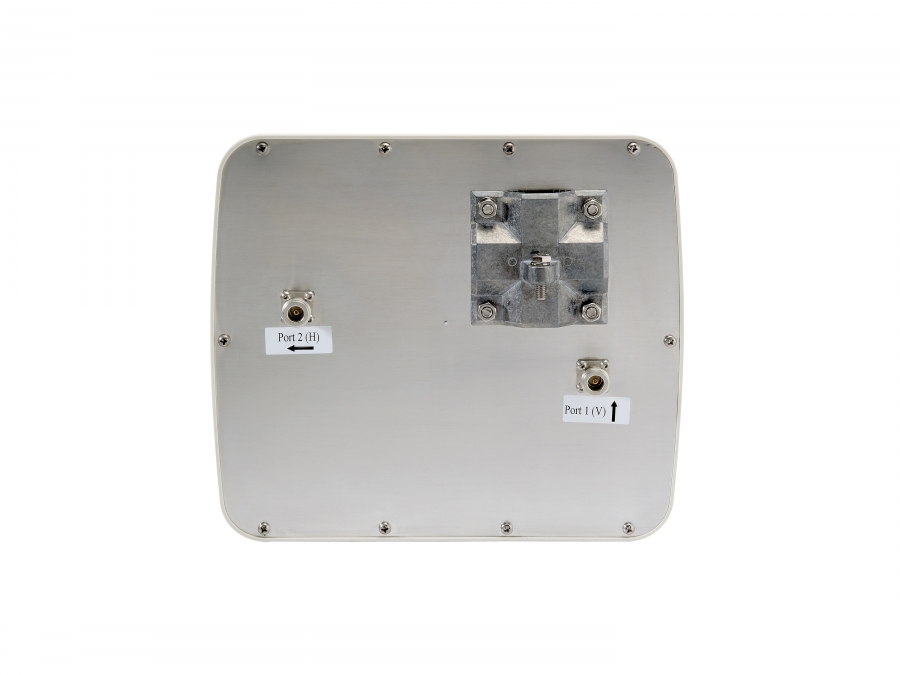

Antenna connector typeN-type
Connector genderFemale
PolarizationDual polarization
Voltage Standing Wave Ratio (VSWR)2.2
WaterproofY
Survival wind speed216 km/h
Power handling10 W

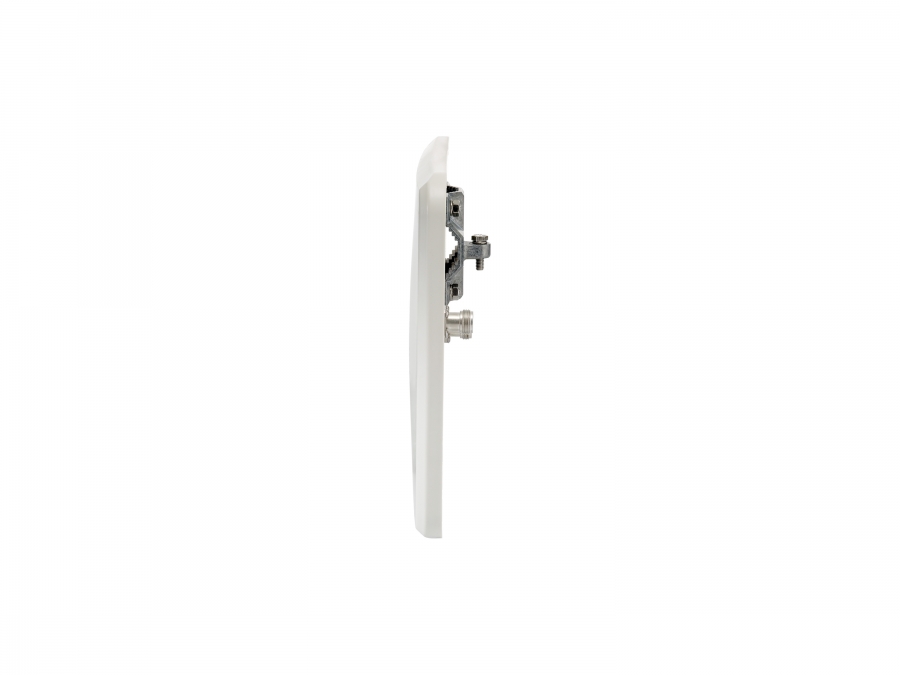

MountingWall
PurposeIndoor & outdoor
Country of originTaiwan
Housing materialAcrylonitrile butadiene styrene (ABS), Aluminium
Product colourGrey
Operating temperature (T-T)-40 - 80 °C
Operating relative humidity (H-H)0 - 95%
Width256 mm
Depth227 mm
Height19 mm
Weight435 g
Package width343 mm
Package depth235 mm
Package height47 mm
Package weight188 g
Quantity per pack1 pc(s)
Mounting kitY
Quick installation guideY
Harmonized System (HS) code85177100
