LEVEL ONE

OAN-2090

Jauns

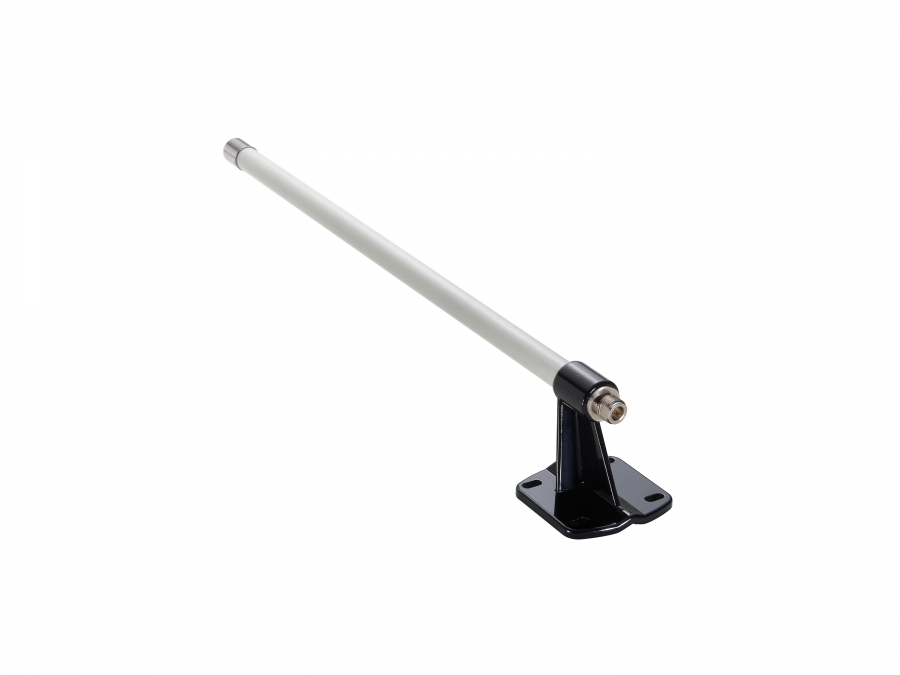

High-quality antenna with kit OAN-2090 is an all-inclusive antenna kit for indoor/outdoor applications. It is a great solution to help improve the distance and performance of wireless local area networks (WLANs).It is durable and reliable, perfectly suited for outdoor deployments in even the most severe weather conditions.Bundled in the package is LevelOne’s ANC-2330. This is a 3-meter N plug to RPSMA plug cable that is included to help with flexible installation. OAN-2090 also includes a surge protector to protect against lightning strikes and a durable mounting kit for secure installation.- IEEE 802.11 b/g/n application in 2.4GHz Frequency Range - Surge protector included to avoid lighting damage - Omni-directional operation provides extended point to multi-point coverage - Standard N-jack connector - 3 meter cable, with standard N-Plug and RPSMA- Plug

Antenna gain level (max)8.5 dBi
Frequency band2.4 - 2.5 GHz
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Impedance50 Ω
Horizontal beam width360°
Vertical beam width15°
Antenna typeOmni-directional antenna
Antenna connector typeN-type
Connector genderFemale
PolarizationVertical polarization
Voltage Standing Wave Ratio (VSWR)1.8:1
Survival wind speed180 km/h
PurposeIndoor & outdoor
Housing materialGlass fibre
Product colourBlack, White
Operating temperature (T-T)-20 - 65 °C
Storage temperature (T-T)-30 - 75 °C
Width70 mm
Depth610 mm
Height53 mm
Weight345 g
Package width89 mm
Package depth650 mm
Package height75 mm
Package weight580 g
Cables includedCoaxial
Mounting kitY
Quick installation guideY
Harmonized System (HS) code85177100
