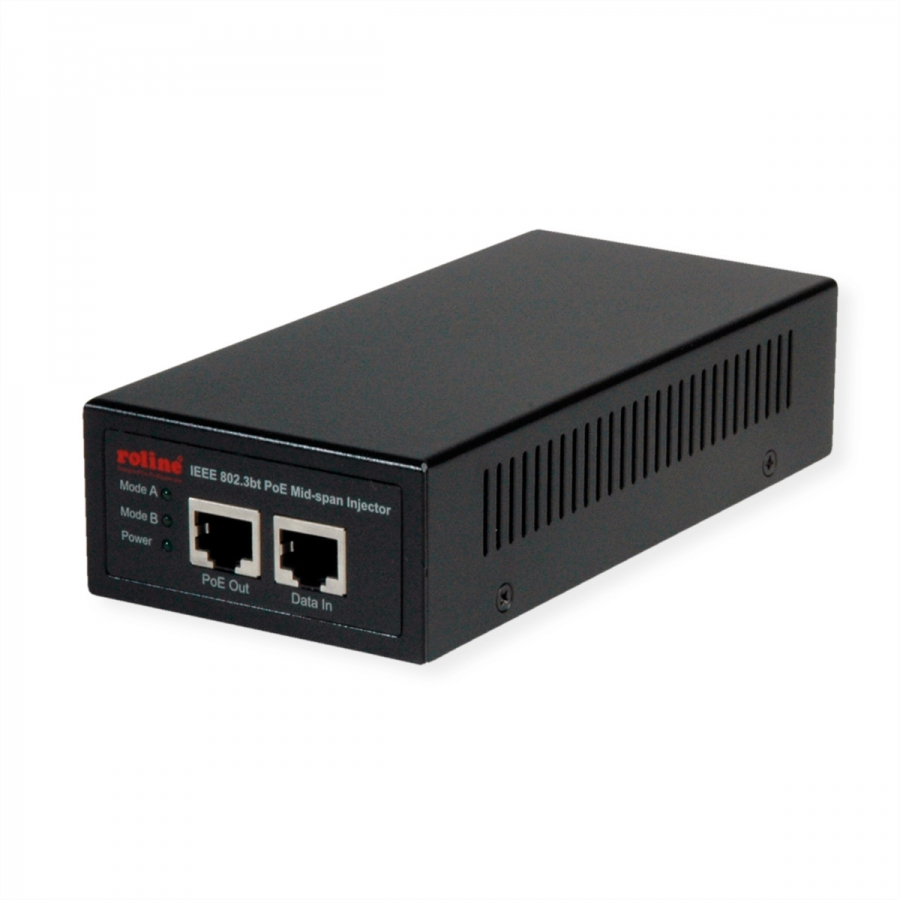

ROLINE Gigabit PoE++ Mid-Span Injector (IEEE 802.3bt), 90W

ROLINE

21.13.1203

Jauns

The ROLINE Gigabit PoE Injector is a so-called PSE, a unit to supply power for e.g. surveillance cameras, and LAN devices such as access points, bridges and routers over Ethernet cable.

A PSE supplies the power together with the data in the network cable.There is no longer need for an additional own power supply of the device.

  • Supply of data and power into the network cables
  • Connectors: 1x RJ-45 port (Data In, Data input), 1x RJ-45 port (Data & Power Out, output data and power)
  • Compatible with 802.3af and 802.3at
  • Power via PoE++: up to 90W
  • LED indicators for Power status, PD mode detection
  • Output voltage: 56V DC
  • Contents: Injector, manual



ManufacturerROLINE
Product groupPoE adapter
Product typeGigabit PoE-Injector
Colourblack
Power over Ethernet (PoE)PoE++
Quantity of PoE ports1
Max. PoE output power per port90 W
Max. PoE output power (total)90 W
Dimensions (HxWxD)76.5 x 159 x 39 mm
Mains connectionCold appliance connection
Height76.5 mm
Width159 mm
Depth39 mm
Weight593.4 g
Height of packaging (single piece)50 mm
Width of packaging (single piece)140 mm
Depth of packaging (single piece)230 mm
Package weight (single piece)0.9 kg
Current catalog editionC23-01.09
