Level One LevelOne Switch 4x FE FSW-0513 1xFE 120W 4xPoE+

Kods FSW-0513

Condition: Jauns

Vairāk informācijas

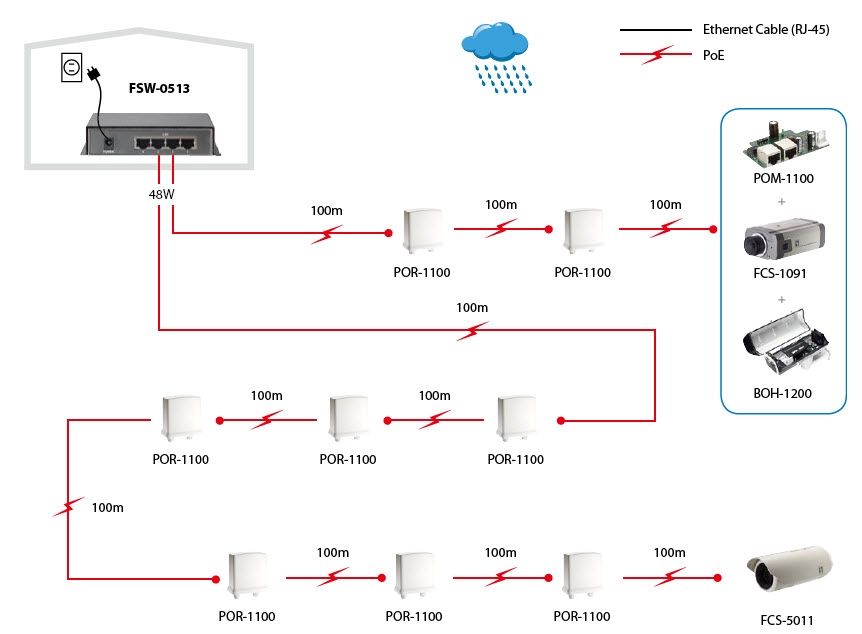

FSW-0513(Z) is a 10/100 Mbps Fast Ethernet Switch with 4 High-Power Power over Ethernet ports and one uplink port. With a total power budget of 120W, FSW-0513(Z) is excellent for deploying network devices that require high-power such as outdoor security dome cameras and access points. And with high-power PoE, the reach of devices can be extended hundreds of meters.With 4 dip switches, each PoE port can be manually set for On-Off control. The internal PoE power supply can send up to 52 Watts to a single port. FSW-0513(Z) is compact in size, making it ideal for desktop users with limited space. You also have option of installing several FSW-0513(Z) in a 19” chassis (POC-6000) for a large-scale rack-mount PoE solution.Power Protection FSW-0513(Z) supports power protections as OVP (Over Voltage Protection), OCP (Over Current Protection), robust short-circuit protection and surge protection. - Provides flexibility of 4 x 10/100BASE-TX PoE ports - IEEE 802.3af PoE compliant to simplify deployment and installation - PoE on/off control per port by dip switches - Auto-detection and protection of non-standard PoE devices - 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX - IEEE 802.3x Flow Control protects against lost packets for reliable data transmission - Total PoE power budget: 120W, up to 52W per port

Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Power connector	DC-in jack
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
10G support	N
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Cable types supported	Cat5
Full duplex	Y
Auto MDI/MDI-X	Y
Auto-negotiation	Y
MAC address table	1024 entries
Switching capacity	1 Gbit/s
Store-and-forward	Y
Packet forwarding rate (100 Mbps)	14800 pps
Packet forwarding rate (10 Mbps)	14880 pps
Rack mounting	N
Stackable	N
Product colour	Black, Grey
LED indicators	Uplink, LAN, PoE, Power
On/off switch	Y
Country of origin	Taiwan
Certification	FCC, CE
Buffer size	48 KB
Output voltage	56 V
Output current	2.15 A
Power consumption (typical)	120 W
Power protection features	Over current, Short circuit
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) ports quantity	1
Power over Ethernet (PoE) power per port	52 W
Total Power over Ethernet (PoE) budget	120 W
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%
Width	120 mm
Depth	90 mm
Height	28 mm
Weight	800 g
Cables included	AC
Manual	Y
AC adapter included	Y
Package width	232 mm
Package depth	148 mm
Package height	80 mm
Harmonized System (HS) code	85176990
