Level One LevelOne Switch 8x GE GEL-1061 2xGSFP 19"

Kods GEL-1061

Condition: Jauns

Vairāk informācijas

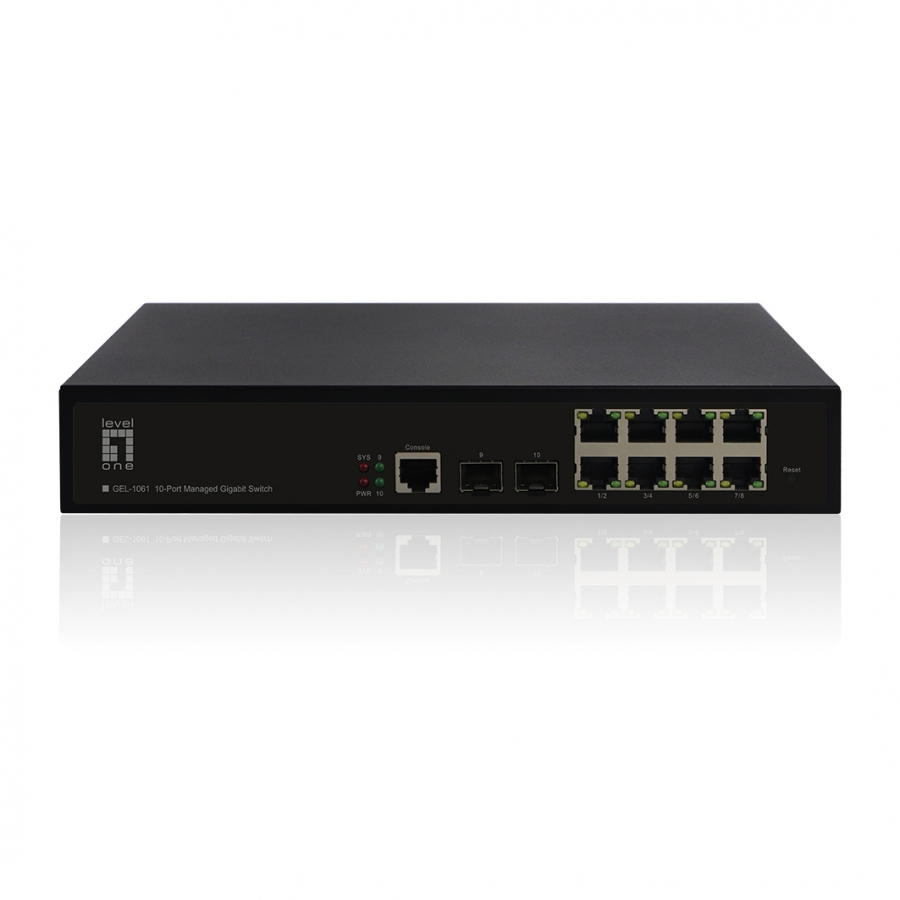

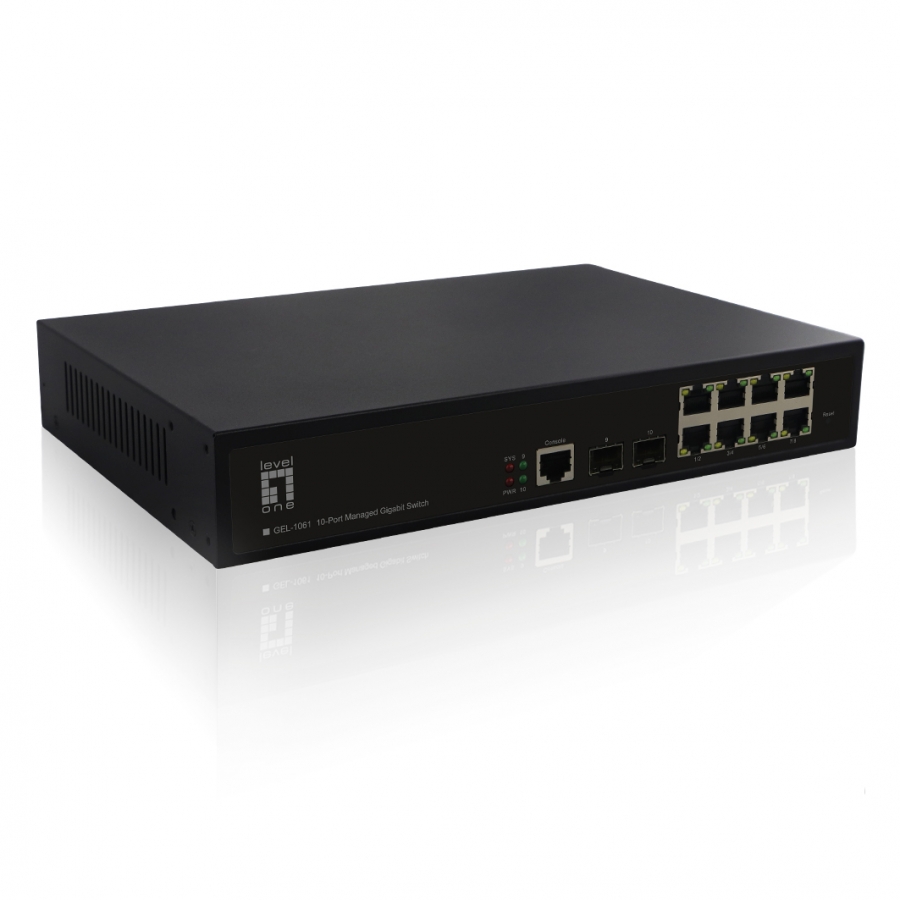

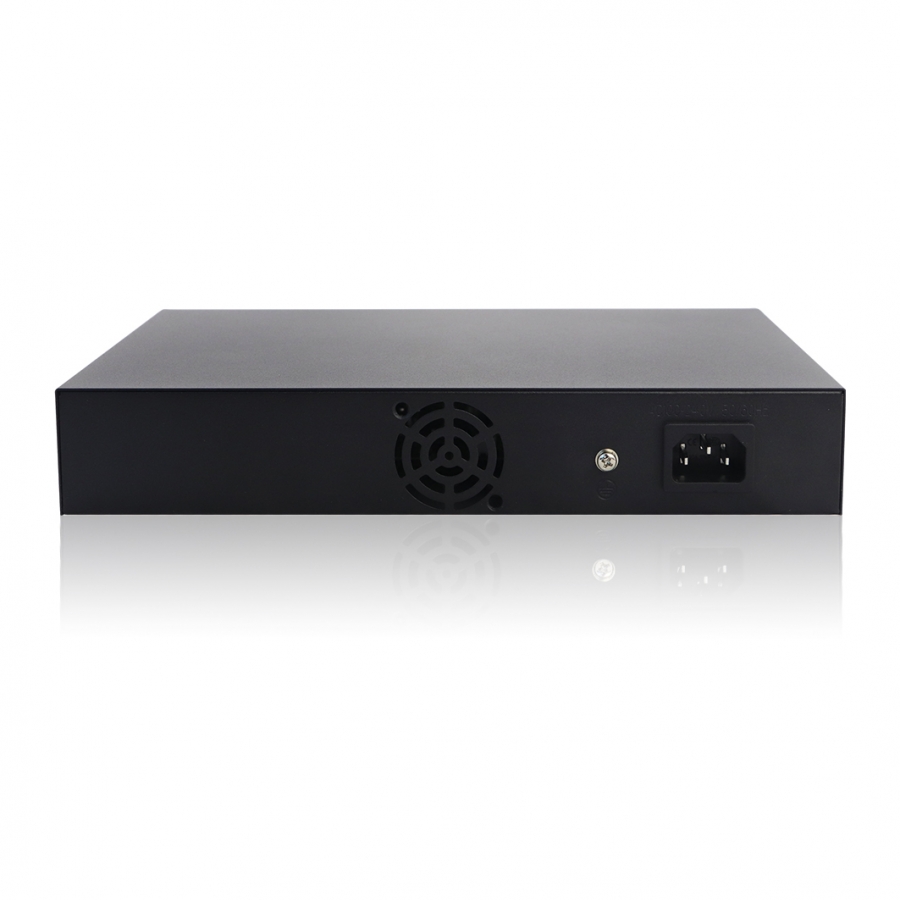

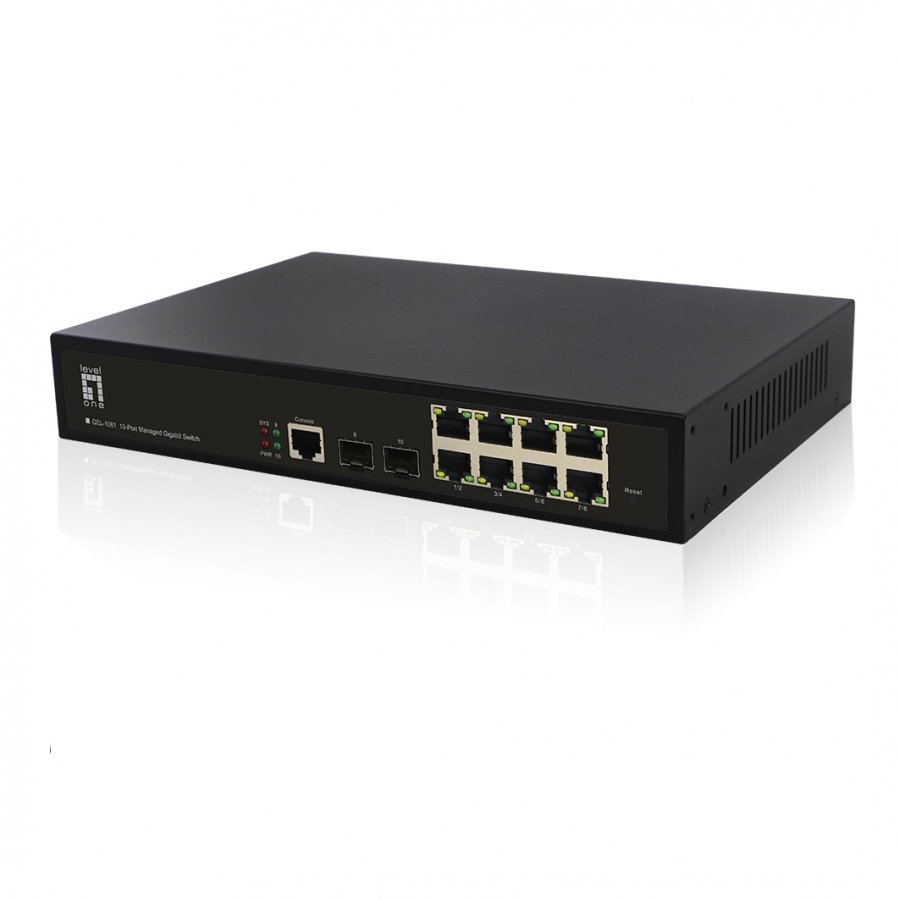

The LevelOne GEL-1061 is an intelligent 10-Port L2 managed gigabit switch with 8 RJ45 ports and 2 SFP fiber slots, designed for enterprise or large workgroups connectivity applications with the non-blocking, wire-speed switching performance and advanced networking management functions.The switch supports a flexible web-based management interface for both IPv4 and IPv6 as well as console, SNMP and Telnet management access. Despite its affordable pricing, the GEL-1061 is equipped with many advanced features such as Internet Group Management Protocol (IGMP) snooping, port-/MAC-/tag-based VLAN, IEEE 802.1d/w/s Spanning Tree, Access Control List (ACL), Link Aggregation Control Protocol (LACP), IEEE 802.1p QoS, Storm Control for protecting against broadcast/multicast/unknown unicast and much more.An ideal network solution for anyone looking for an affordable and efficient way to expand their network.

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Y
Traffic classification	Y
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	2
Fiber optic connector	SFP
Console port	RJ-45
Power connector	AC-in jack
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	N
Port mirroring	Y
Flow control support	Y
Link aggregation	Y
Broadcast storm control	Y
Rate limiting	Y
Spanning tree protocol	Y
Cable length detection	Y
VLAN support	Y
Virtual LAN features	Port-based VLAN, Tagged VLAN
Fiber ethernet cabling technology	100BASE-X, 1000BASE-X
MAC address table	8000 entries
Switching capacity	20 Gbit/s
Throughput	14.9 Mpps
Number of queues	8
Jumbo frames support	Y
Jumbo frames	9000
Packet buffer memory	1 MB
Access Control List (ACL)	Y
IGMP snooping	Y
MAC address filtering	Y
Static port security	Y
Rack mounting	Y
Product colour	Black
Reset button	Y
LED indicators	Activity, Link, Power
Internal memory	128 MB
Flash memory	16 MB
Fanless	N
Minimum system requirements	CE RoHS
Power source	AC
Power supply included	Y
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	15 W
Power over Ethernet (PoE)	N
Operating temperature (T-T)	-10 - 50 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	0 - 95%
Width	270 mm
Depth	181 mm
Height	44 mm
Weight	800 g
Cables included	AC
Quick start guide	Y
Package type	Box
Package width	345 mm
Package depth	255 mm
Package height	82 mm
Package weight	2 kg
Harmonized System (HS) code	85176990
