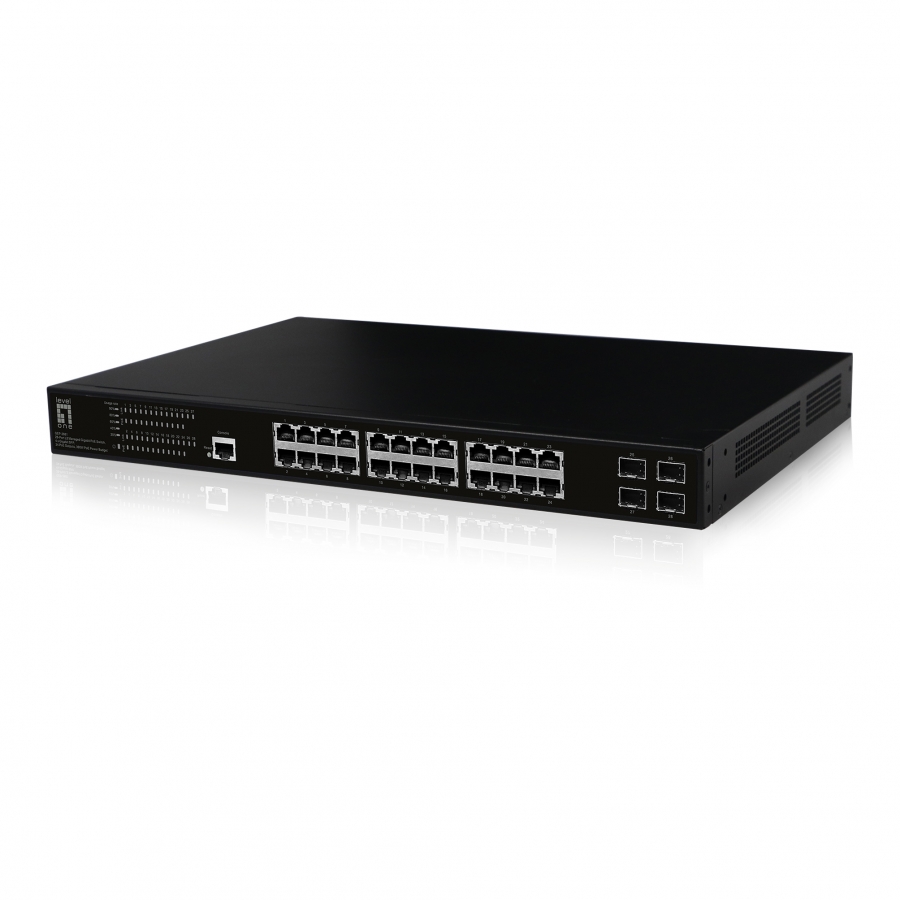

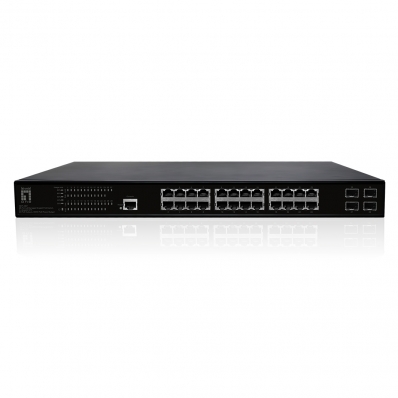

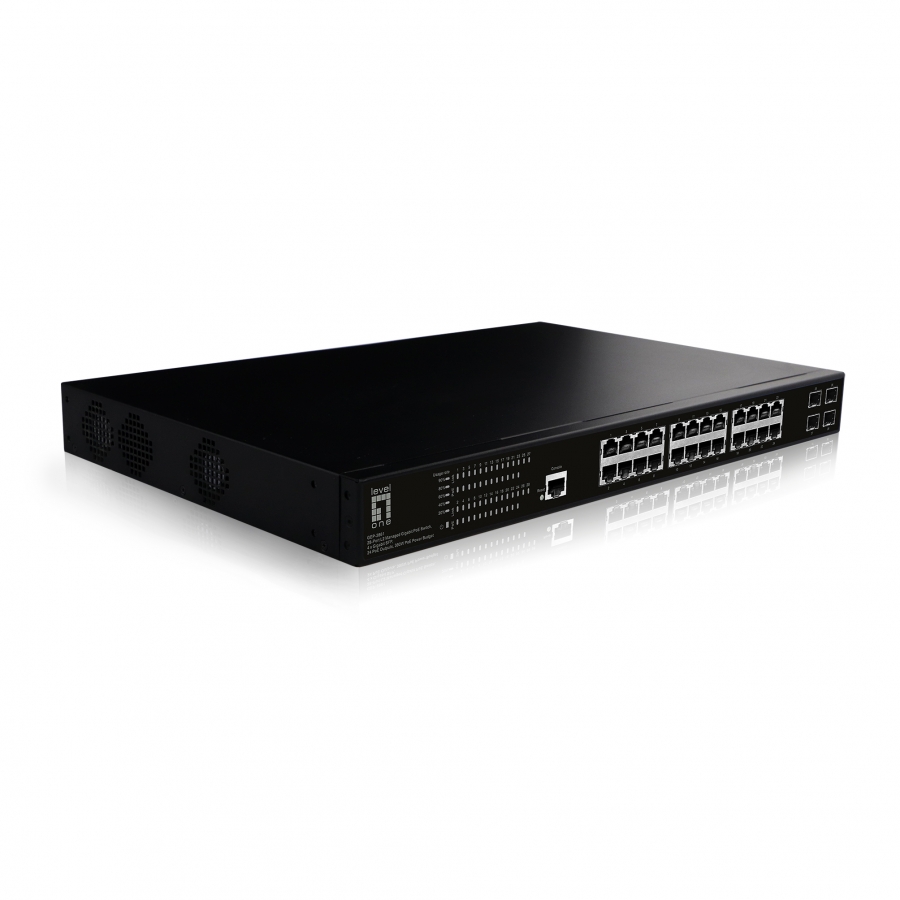

Level One LevelOne Switch 28xPort GEP-2861 4xGSFP 19" 390W 24xPoE+

Kods GEP-2861

Condition: Jauns

Vairāk informācijas

The levelone GEP-2861 is a 28-Port L2 Managed Gigabit PoE Switch that supports up to 24*10/100/1000M PoE ports and 4*1000M SFP ports. 24*10/100/1000M ports support PoE+ and total up to 390W PoE power budget, conforming to IEEE 802.3af/at standard, single port PoE power up to 30W. supports L2 management, such as QoS, VLAN, MSTP, Multi-brocast, ports management and PoE management. It has a high anti-interference ability, the product supports 6KV surge protection, and 6KV contact / 8KV air ESD protection. supports 19" rack mount and desktop installation, reliable and durable, and can be used in security network video monitoring, network engineering and other occasions. GEP-2861 provides high HW performance and environment flexibility for SMBs and Enterprises. GEP-2861 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Y
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	24
SFP module slots quantity	4
Console port	RJ-45
Power connector	AC-in jack
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	N
Copper ethernet cabling technology	10BASE-T, 1000BASE-T, 100BASE-TX
Port mirroring	Y
Broadcast storm control	Y
Ethernet LAN data rates	10,100,1000 Mbit/s
VLAN support	Y
MAC address table	16000 entries
Switching capacity	56 Gbit/s
Jumbo frames support	Y
Jumbo frames	10000
Packet buffer memory	4 MB
Access Control List (ACL)	Y
BPDU filtering/protection	Y
Password protection	Y
Multicast support	Y
Rack mounting	Y
Stackable	N
Form factor	1U
Product colour	Black
LED indicators	Activity, Link, PoE, Speed, System
Country of origin	China
Certification	CE, RoHS
Firmware upgradeable	Y
Fanless	N
Power source	AC
Power supply included	Y
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	390 W
Operating temperature (T-T)	-10 - 50 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Width	442 mm
Depth	285 mm
Height	44 mm
Weight	4 kg
Cables included	AC
Quick start guide	Y
Package type	Box
Rack mount kit	Y
Package width	395 mm
Package depth	90 mm
Package height	530 mm
Package weight	4.8 kg
Harmonized System (HS) code	85176990
