| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |

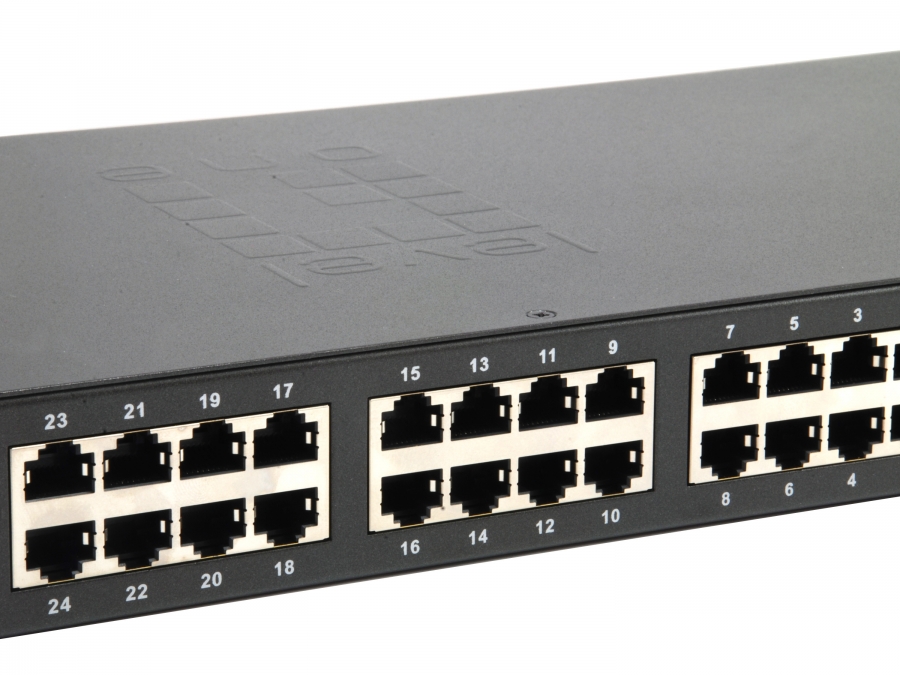

| Fast Ethernet (copper) ports quantity | 24 |

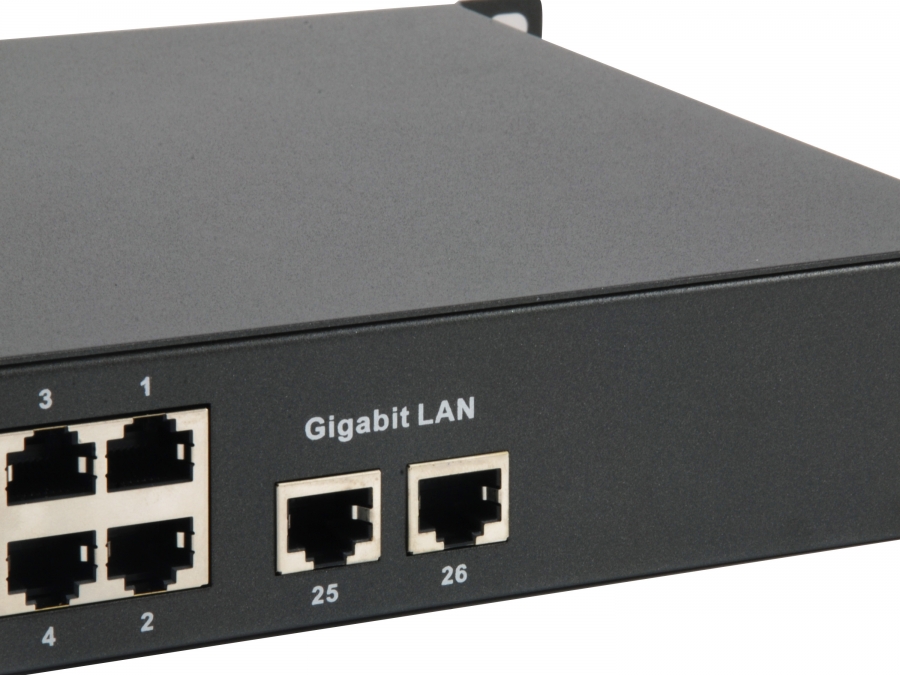

| Gigabit Ethernet (copper) ports quantity | 2 |

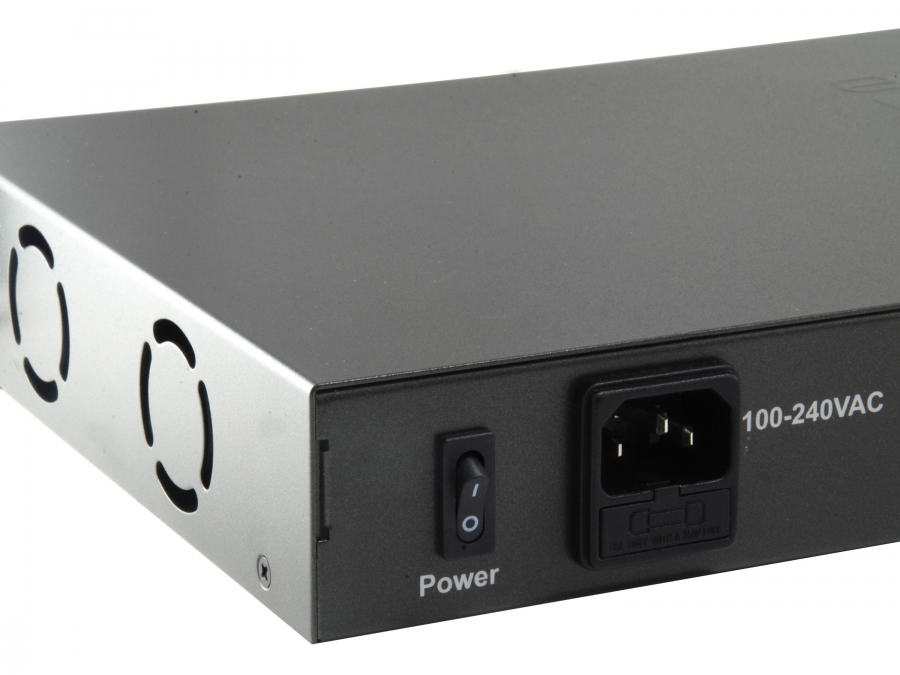

| Power connector | AC-in jack |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6, Cat7 |
| Full duplex | Y |
| Flow control support | Y |
| MAC address table | 4000 entries |
| Switching capacity | 8.8 Gbit/s |
| Jumbo frames support | Y |
| Jumbo frames | 10000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet buffer memory | 0.512 MB |
| Rack mounting | Y |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | LAN, PoE, Power, Uplink |
| On/off switch | Y |
| Country of origin | Taiwan |
| Certification | FCC Class A, CE |
| Mean time between failures (MTBF) | 50000 h |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power protection features | Over current, Over voltage, Overheating |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 250 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Width | 200 mm |
| Depth | 44 mm |
| Height | 440 mm |
| Weight | 2.9 kg |
| Cables included | AC |
| Manual | Y |
| Package width | 260 mm |
| Package depth | 95 mm |
| Package height | 540 mm |
| Package weight | 3.5 kg |
| Master (outer) case width | 510 mm |
| Master (outer) case length | 280 mm |
| Master (outer) case height | 555 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case gross weight | 18 kg |
