| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Full duplex | Y |
| Flow control support | Y |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| MAC address table | 1000 entries |
| Switching capacity | 1.6 Gbit/s |
| Store-and-forward | Y |
| Packet buffer memory | 1 MB |
| Product colour | Black |
| LED indicators | Link, Power, Status |
| Wall mountable | Y |
| DIN rail mounting | Y |
| Country of origin | Taiwan |
| Safety | IEC EN60950-1 |
| Certification | EMI: FCC Part 15 Subpart B Class A CE EN 55022 Class A EMC: EN55022, EN55024 EN50155/EN60068-2-6 EN50155/EN60068-2-27 EN50155/EN60068-2-32 |
| Plug and Play | Y |
| Mean time between failures (MTBF) | 510304 h |
| Redundant power supply (RPS) support | Y |
| Power consumption (typical) | 5.76 W |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) voltage range | 44 - 56 V |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 126 W |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 105 mm |
| Depth | 36.2 mm |
| Height | 142 mm |
| Weight | 525 g |
| Manual | Y |
| Wall mounting kit | Y |

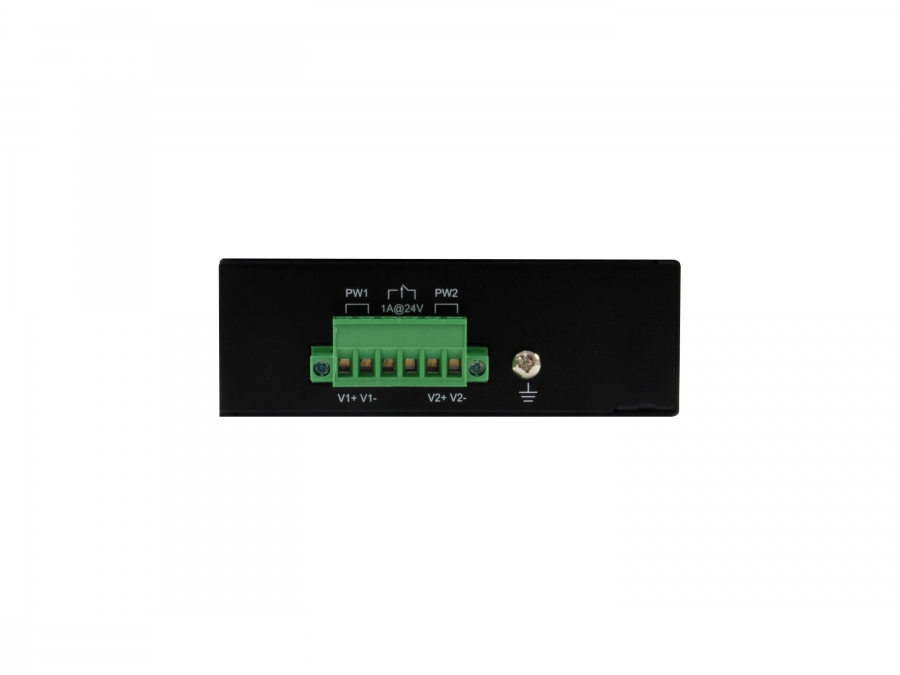

| Terminal block included | Y |
| Package type | Box |
| DIN rail included | Y |
| Package width | 165 mm |
| Package depth | 65 mm |
| Package height | 215 mm |
| Package weight | 730 g |
| Master (outer) case width | 350 mm |
| Master (outer) case length | 240 mm |
| Master (outer) case height | 570 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case gross weight | 12.6 kg |
| Products per master (outer) case | 16 pc(s) |
| Terminal block port | Y |
