| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |

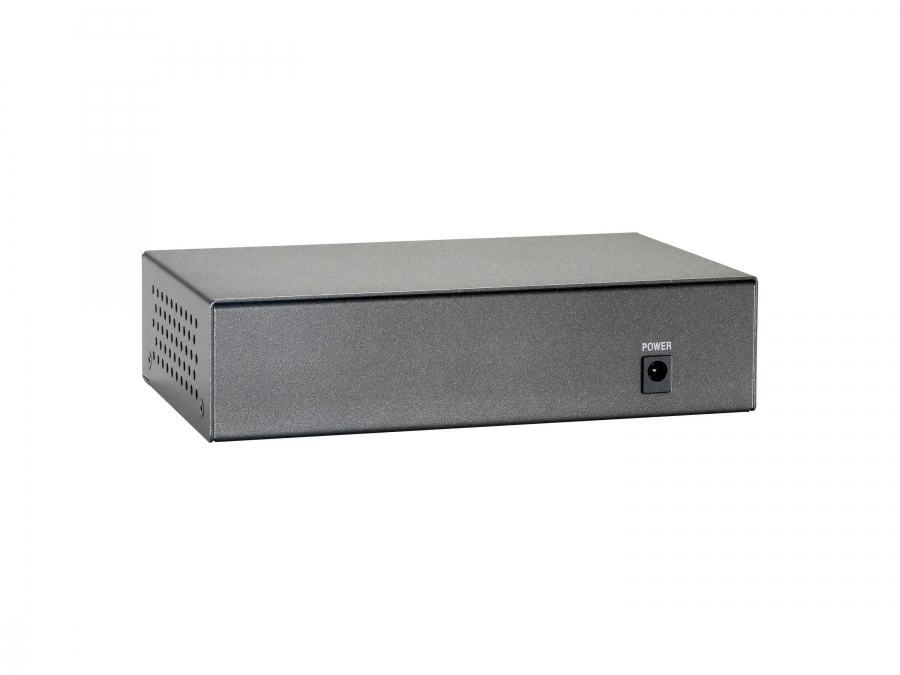

| Power connector | DC-in jack |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Full duplex | Y |
| Flow control support | Y |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| MAC address table | 1000 entries |
| Switching capacity | 1.6 Gbit/s |
| Store-and-forward | Y |
| Packet forwarding rate (100 Mbps) | 148000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Rack mounting | N |
| Product colour | Grey |
| LED indicators | Activity, PoE, Power |
| On/off switch | Y |
| Country of origin | Taiwan |
| Certification | FCC, CE, RoHS |
| Buffer size | 64 KB |
| Plug and Play | Y |
| Input voltage | 56 V |
| Power consumption (typical) | 120 W |
| Power protection features | Over current |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 115 W |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Width | 165 mm |
| Depth | 99 mm |
| Height | 41 mm |
| Weight | 1.4 kg |
| Cables included | AC |
| Manual | Y |
| AC adapter included | Y |
| Package type | Box |
| Package width | 371 mm |
| Package depth | 230 mm |
| Package height | 82 mm |
| Package weight | 1.6 kg |
| Master (outer) case width | 525 mm |
| Master (outer) case length | 246 mm |
| Master (outer) case height | 392 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case gross weight | 10 kg |
| Products per master (outer) case | 6 pc(s) |
