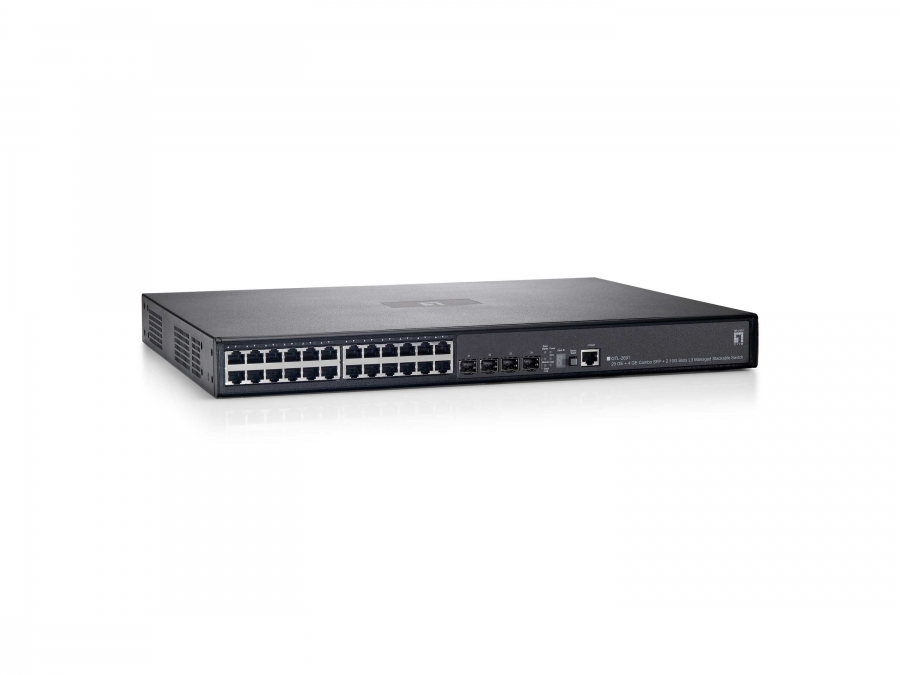

Level One LevelOne Switch 24x GE GTL-2691 2xGE 4xGSFP+19"

Kods GTL-2691

Condition: Jauns

Vairāk informācijas

The LevelOne GEL-2691 is a Layer 3 Managed switch with 24 x 1000Base-T ports associated with 4 x Gigabit SFP (Small Form Factor Pluggable) slots + 2 optional 10 Gigabit Ethernet Slots for SFP/XFP. This switch is also 19-inch rack-mountable and 1 x redundant power supply connector, which provides convenient and flexible installation.The switch provides a flexible, web-based management interface SNMP for both IPv4 and IPv6 as well as layer 3 management features. Despite its affordable pricing, the GEL-2691 is equipped with many advanced features such as unicast routes, multicast routing IGMP V1/V2/V3, IGMP v3 proxy, IP VLANs, VLAN trunk, IEEE 802.1d/w/s Spanning Tree, Access Control List (ACL) of up to 512 entries for easy network security, Link Aggregation Control (LACP), IEEE 802.1p QoS with 8 priority queues much more.An ideal network solution for workgroups and edge deployments, or anyone looking for an affordable and efficient way to expand their network.- 24 Gigabit Ethernet ports with 4 shared SFP and 2 10-Gigabit slots - Multicast routing IGMP V1/V2/V3, MLD - Supports DHCP relay features under Layer 3 protocol - Supports Access Control List (ACL) authentication of up to 256 entries and port-based security with IEEE802.1X - IEEE 802.1d/w/s Spanning Tree Protocol (STP) and port mirroring - IEEE 802.3ad LACP for auto port aggregation - IEEE 802.1p QoS with 8 priority queues - Supports IPv4/IPv6 network operation - Provides QoS control based on IP DSCP for advanced traffic prioritization and bandwidth management

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Y
Web-based management	Y
Traffic classification	Y
ARP inspection	Y
System event log	Y
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	4
SFP/SFP+ slots quantity	2
SFP module slots quantity	4
Console port	RJ-45
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x
10G support	Y
Port mirroring	Y
Full duplex	Y
Flow control support	Y
Rate limiting	Y
Spanning tree protocol	Y
Active link detection	Y
MAC address auto-learning supported	Y
MAC address auto-aging supported	Y
VLAN support	Y
Virtual LAN features	Private VLAN, Port-based VLAN
MAC address table	16000 entries
Switching capacity	128 Gbit/s
Forwarding rate	95.2 Mpps
Store-and-forward	Y
Number of queues	8
Number of static routes	512
Jumbo frames support	Y
Jumbo frames	9000
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (100 Mbps)	148000 pps
Packet forwarding rate (10 Mbps)	14880 pps
Access Control List (ACL)	Y
IGMP snooping	Y
SSH/SSL support	Y
Loop protection	Y
BPDU filtering/protection	Y
Auto-edge port	Y
Authentication	MAC-based authentication
Multicast support	Y
Multicast MAC address table	1024 entries
Management protocols	Telnet, SNMP, SNTP, RMON,
Supported network protocols	IPv6, IPv4, BOOTP
Rack mounting	Y
Stackable	Y
Product colour	Black
LED indicators	Y
Certification	FCC Part 15 Class A, CE, RoHS
Firmware upgradeable	Y
Buffer size	2048 KB
AC input voltage	100 - 240 V
AC input frequency	47/63 Hz
Power consumption (typical)	49.6 W
Power consumption (max)	63.96 W
Power over Ethernet (PoE)	N
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Width	440 mm
Depth	415 mm
Height	44 mm
Weight	5.7 kg
Package type	Box
Package width	530 mm
Package depth	420 mm
Package height	135 mm
Harmonized System (HS) code	85176990
