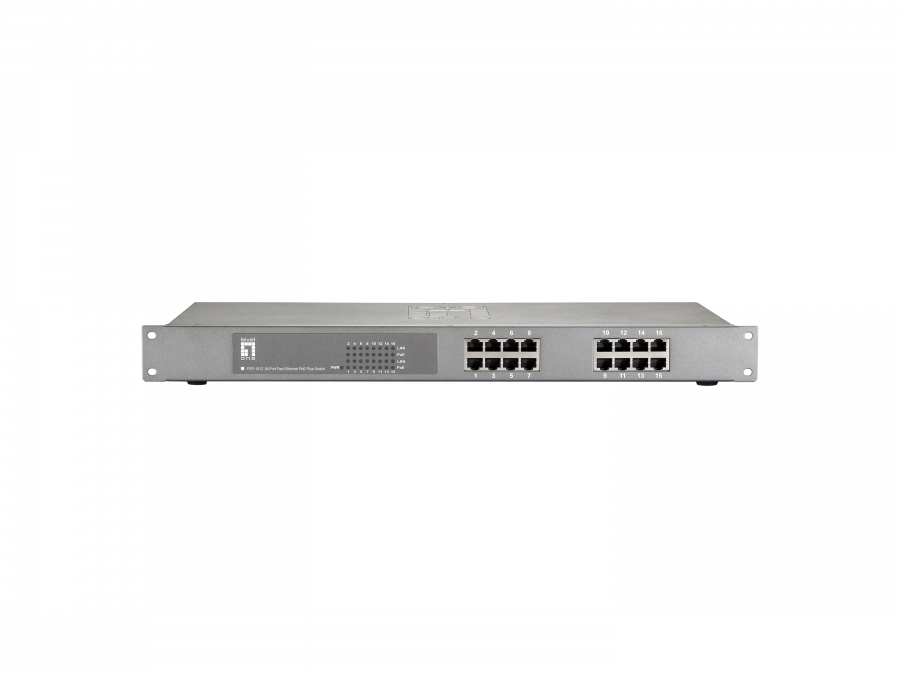

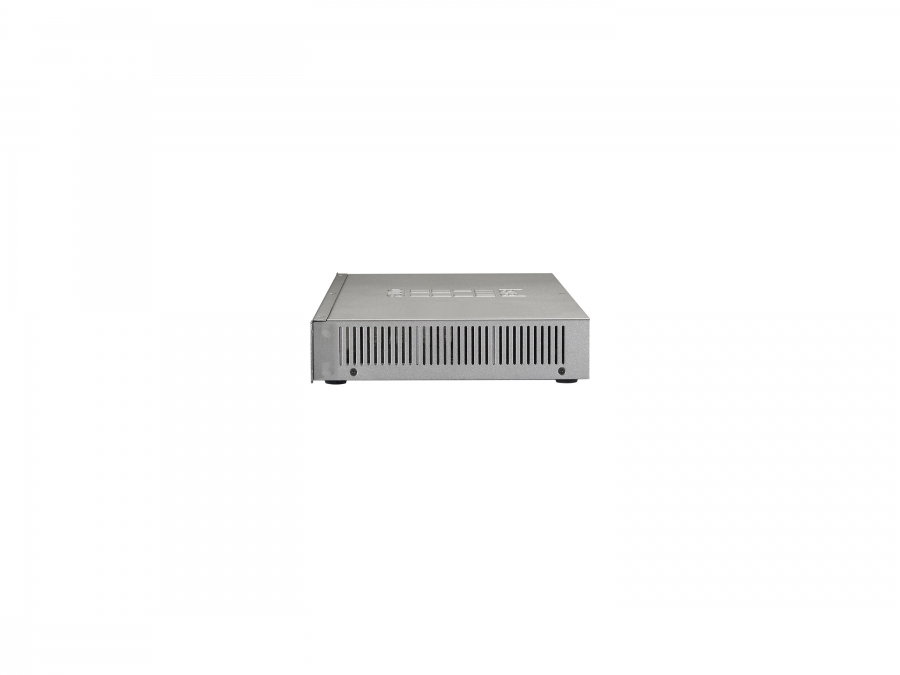

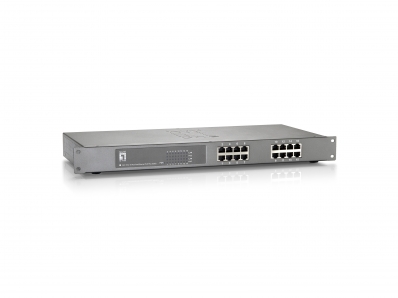

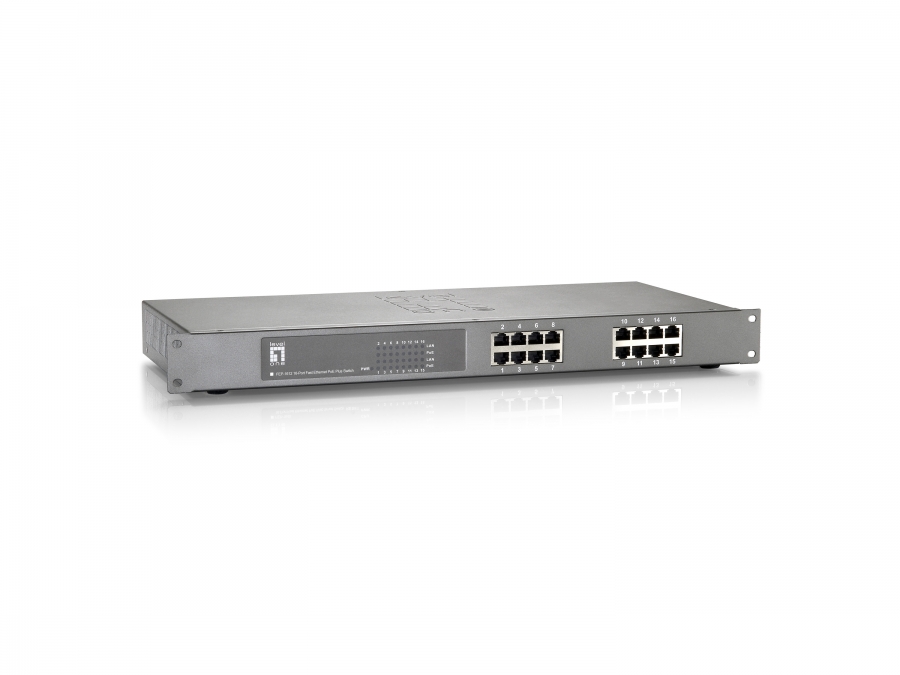

Level One LevelOne Switch 16x FE FEP-1612 19" 480W 16xPoE

LEVEL ONE

FEP-1612

Jauns

LevelOne FEP-1612 features 16 10/100Mbps Fast Ethernet ports with IEEE 802.3at/af PoE interfaces. It supports MDI / MDI-X convertible on 16 10/100Mbps ports and provides PoE inject function on PoE ports which are able to IEEE 802.3af or 802.3at compliant powered devices remotely.The FEP-1612 equipped with the MDI/MDI-X auto detection for easily plug and play connection, regardless of cabling types in straight through or crossover. It also provides a simple, cost-effective, and highly reliable network connection for data and power transmission. Furthermore, it is the ideal device for bridging among Ethernet, Fast Ethernet workgroups and networks. It fits all kind of Ethernet installations such as campus, workgroup, department, enterprise, telecom or industrial applications.The FEP-1612 features non-blocking 3.2Gbps backplane that greatly simplifies the tasks of upgrading your LAN for catering to increase bandwidth demands.- IEEE 802.3af/at PoE compliant to simplify deployment and installation - Auto-detection and protection of non-standard PoE devices - Supports 4K MAC address auto-learning and auto-aging - 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX - 19-inch metal housing - IEEE 802.3x Flow Control protects against lost packets for reliable data transmission - Total PoE power budget: 480W, up to 30W per port

Switch typeUnmanaged
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Networking standardsIEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G supportN
Copper ethernet cabling technology10BASE-T, 100BASE-TX
Cable types supportedCat5
Full duplexY
Auto MDI/MDI-XY
Auto-negotiationY
MAC address table4096 entries
Switching capacity3.2 Gbit/s
Store-and-forwardY
Packet forwarding rate (100 Mbps)148000 pps
Packet forwarding rate (10 Mbps)14880 pps
Rack mountingY
StackableN
Product colourGrey
LED indicatorsActivity, LAN, PoE, Power
Country of originTaiwan
CertificationFCC, CE
Buffer size160 KB

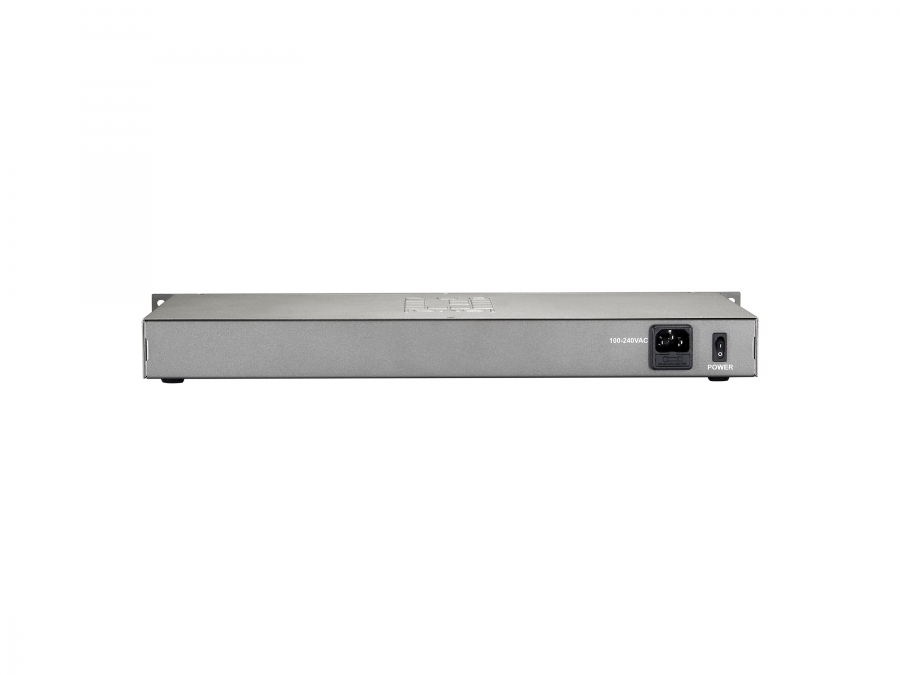

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current5 A
Power consumption (typical)500 W
Power over Ethernet (PoE)Y
Power over Ethernet plus (PoE+) ports quantity16
Total Power over Ethernet (PoE) budget480 W
Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 90%
Width200 mm
Depth480 mm
Height44 mm
Weight2.85 kg
Cables includedAC
Quick start guideY
Package width260 mm
Package depth535 mm
Package height90 mm
Package weight3.7 kg
Harmonized System (HS) code85176990
