Level One LevelOne Switch 8x FE FEP-0800 90W 8xPoE

LEVEL ONE

FEP-0800

Jauns

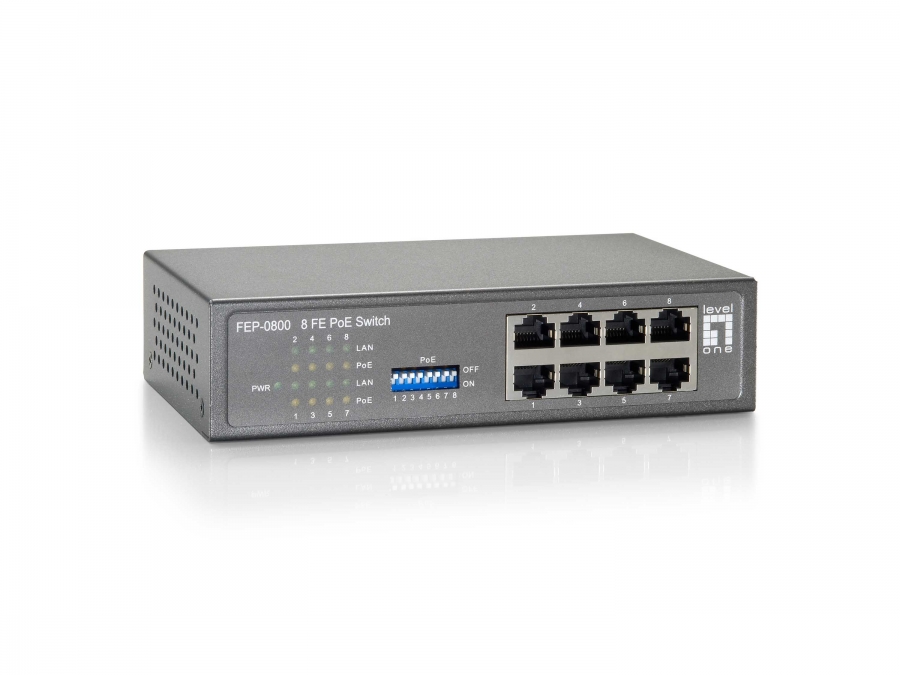

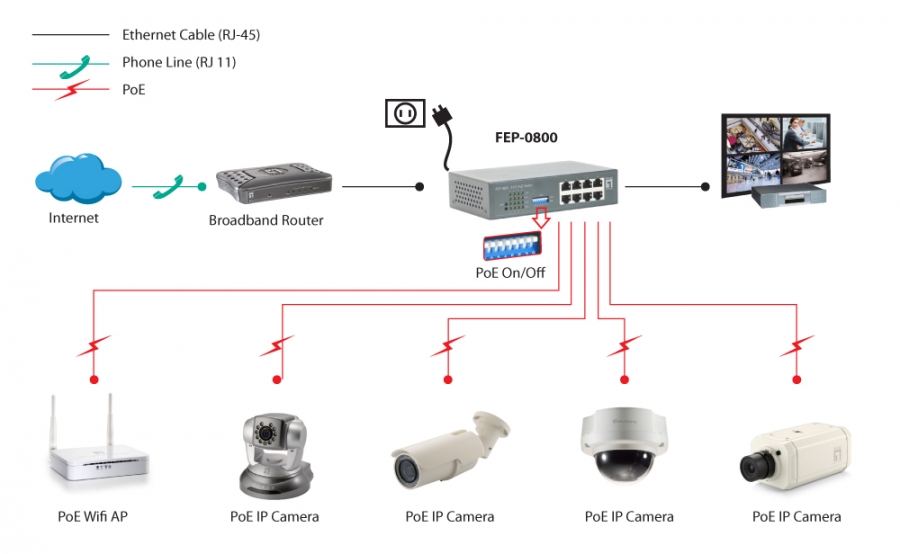

FEP-0800 is a 8-port 10/100Mbps Fast Ethernet Switch with Power over Ethernet (PoE) capability. With 8 dip switches, each PoE port can be manually set for On-Off control. FEP-0800 supports up to 30W on each LAN port when the DIP switch is in the ON position . Using a LevelOne PoE repeater, it is possible to extend the connection a further 100 meters, or even daisy-chain several PoE repeaters together for greater distances. Dual 10/100Mbps ports can connect with other edge switches or NVR as uplink ports.- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission - 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX - PoE on/off control per port by dip switches - Total PoE power budget: 85W, up to 30W per port - Simple Plug and Play installation

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)

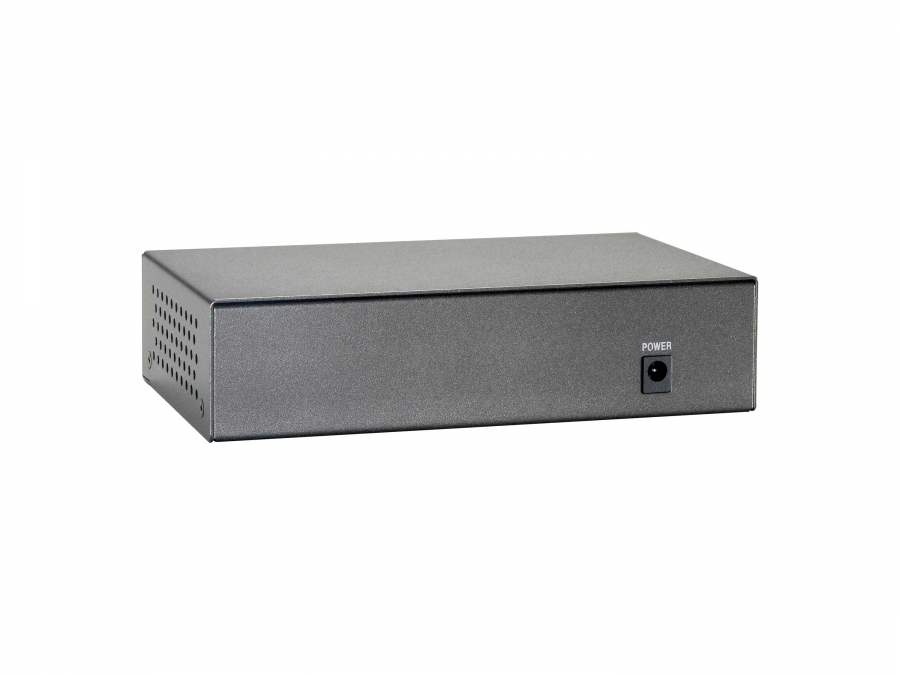

Power connectorDC-in jack
Networking standardsIEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
10G supportN
Copper ethernet cabling technology10BASE-T, 100BASE-TX
Full duplexY
Auto MDI/MDI-XY
Auto-negotiationY
MAC address table1024 entries
Switching capacity1.6 Gbit/s
Store-and-forwardY
Packet forwarding rate (100 Mbps)148000 pps
Packet forwarding rate (10 Mbps)14880 pps
Rack mountingN
StackableN
Product colourBlack, Grey
LED indicatorsActivity, LAN, PoE, Power
On/off switchY
Country of originTaiwan
CertificationFCC, CE, RoHS
Buffer size64 KB
Power supply includedY
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Output voltage56 V
Power consumption (typical)90 W
Power protection featuresOver current, Short circuit
Power over Ethernet (PoE)Y
Power over Ethernet (PoE) ports quantity8
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget85 W
Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 90%
Width165 mm
Depth99 mm
Height41 mm
Weight1.4 kg
ManualY
AC adapter includedY
Package typeBox
Package width371 mm
Package depth230 mm
Package height82 mm
Package weight1.6 kg
Harmonized System (HS) code85176990
