Level One LevelOne Switch 8x GE GTL-2091 12x10GSFP+19"

LEVEL ONE

GTL-2091

Jauns

The GTL-2091 is LevelOne latest generation of 20-Port L3 Managed Gigabit Switch, 8 x Gigabit RJ45, with 12 10G SFP+ port connectivity. High-density SFP ports built into allow users to insert different SFP transceivers providing the necessary fiber connections for creating Area Networks infrastructure. also offers AC dual power failover, allowing for continued operation regardless of a single power source failure.The GTL-2091 offers powerful L3 features(IPv4/v6 static route, RIP v1/v2, OSPF v2/v3, BGP, PIM-DM, PIM-SM ), The switch also supports the most advanced IPv6 management,IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment. ISPs can expand their services for home to business users by providing a more reliable and resilient network , and advanced OAM (Operations, Administration, and Maintenance) functions to ensure service-level agreements. enabling you to scale your operations to meet business growth, operational cost savings, and ease of management.

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportY
Web-based managementY
ARP inspectionY
Configuring Location Settings (CLI)Y
System event logY
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity8
SFP+ module slots quantity12
Console portRJ-45
Power connectorAC-in jack
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
10G supportY
Port mirroringY
Full duplexY
IP routingY
Policy-based routingY
Flow control supportY
Link aggregationY
Broadcast storm controlY
Spanning tree protocolY
Head-of-line (HOL) blockingY
Ethernet LAN data rates10,100,1000 Mbit/s
Network virtualization technologiesQ-in-Q tunneling
Fast leaveY
VLAN supportY
Virtual LAN featuresMAC address-based VLAN, Multicast VLAN, Port-based VLAN, Private VLAN, Voice VLAN
MAC address table32000 entries
Switching capacity256 Gbit/s
Store-and-forwardY
Number of queues8
Static routeY
Number of IP interfaces256
Jumbo frames supportY
Jumbo frames9000
Packet forwarding rate (1 Gbps)13690474 pps
Packet forwarding rate (100 Mbps)1369047 pps
Packet forwarding rate (10 Mbps)136904 pps
Packet buffer memory3 MB
DHCP featuresDHCP client, DHCP server
Access Control List (ACL)Y
IGMP snoopingY
IGMP proxyY
IP-MAC-Port bindingY
AuthenticationGuest VLAN
Password protectionY
DoS attack preventionY
Authentication typeAAA, RADIUS
Queue scheduling algorithmsDeficit Round Robin (DRR), Weighted Round Robin (WRR)
Multicast supportY
Number of multicast groups filtered256
GARP VLAN Registration Protocol (GVRP)Y
Rack mountingY
Product colourGrey
Housing materialMetal
Reset buttonY
LED indicatorsActivity, Link, Power, System
Country of originChina
SafetyFCC Part 15 Subpart B
CertificationCE
Internal memory512 MB
Flash memory16 MB
Maximum data transfer rate10000 Mbit/s
TelnetY
Dying GaspY
Mean time between failures (MTBF)185680 h

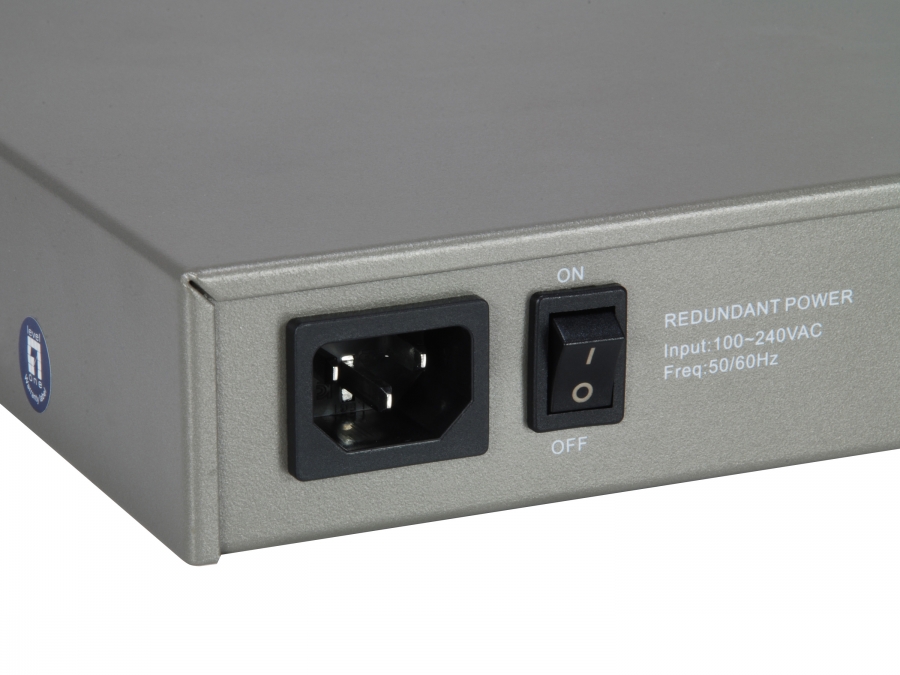

Redundant power supply (RPS) supportY

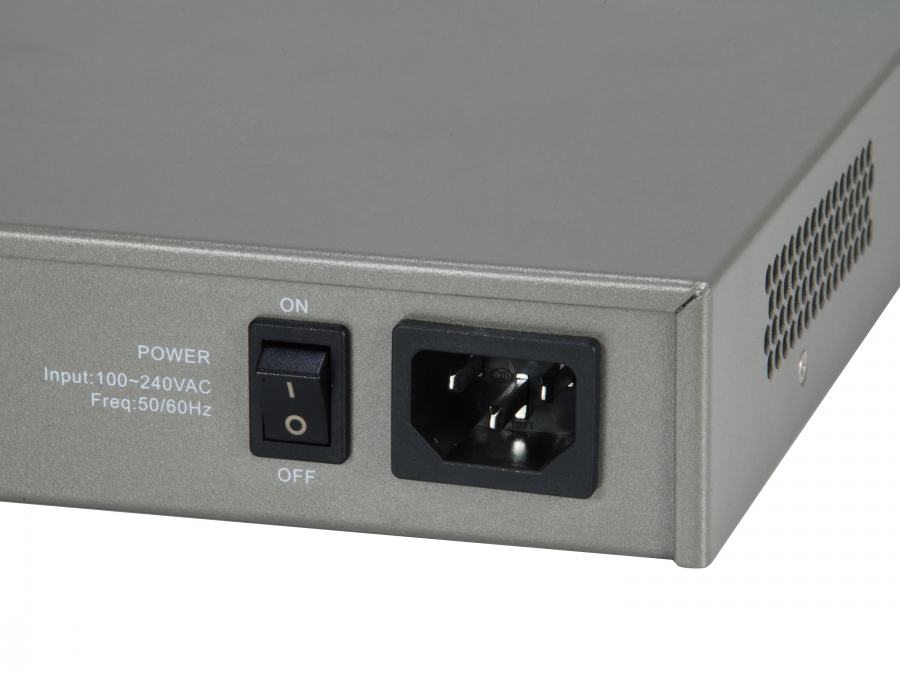

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)50 W
Power over Ethernet (PoE)N
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 90 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 95%
Heat dissipation170.65 BTU/h
Width440 mm
Depth315 mm
Height44 mm
Weight3.6 kg
Cables includedAC
Quick start guideY
Package typeBox
Rack mount kitY
Rubber feetY
Resource CDY
Package width576 mm
Package depth448 mm
Package height94 mm
Package weight5.3 kg
Sustainability certificatesRoHS
Harmonized System (HS) code85176990
Ethernet LANY
