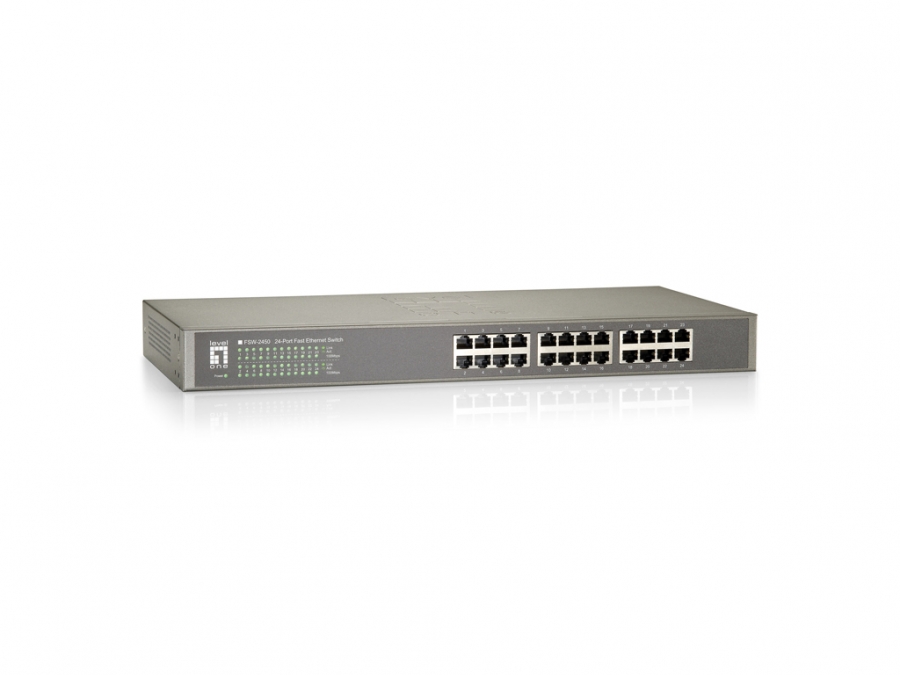

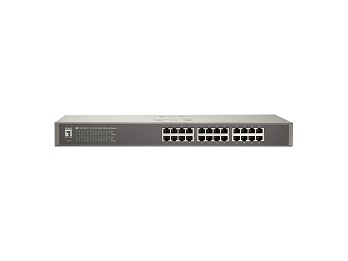

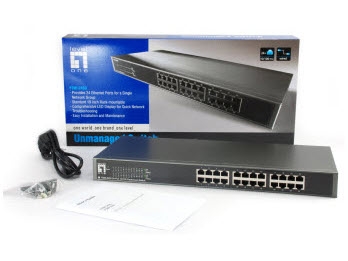

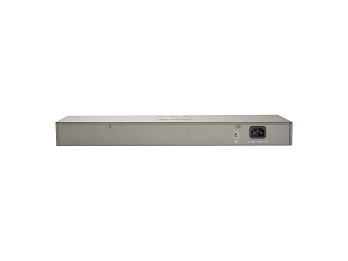

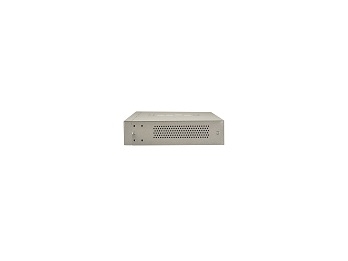

Level One LevelOne Switch 24x FE FSW-2450 19"

Kods FSW-2450

Condition: Jauns

Vairāk informācijas

Product Overview The FSW-2450 switch provides an ideal solution for small businesses that demand a reliable network switch that provides a high bandwidth interface between file servers and workgroups, departments and offices.Advanced Networking Features The LevelOne FSW-2450 is a wire-speed, nonblocking 24 port Fast Ethernet Unmanaged Switch with an internal power supply. It provides a network with an 8K MAC address table, 4.8Gbps backplane throughput, asymmetrical flow-control support for full-duplex network connectivity, auto-negotiation and Auto-MDIX.The 24-port Fast Ethernet Switch utilizes packet store-and forwarding switching for error-free data transmissions and IEEE802.3x backpressure flow control to control data flow between the sending and receiving nodes as well as to prevent any data packet loss.Compact Design The FSW-2450 is a compact designed network switch. Users can place the switch on any desktop area or mount it in a 19-inch server rack or cabinet by using the included rack-mounting accessory kit.Quick Configuration and Easy Maintenance The LevelOne FSW-2450 does not require any software configuration. It is Plug-and-Play enabled for quick set-up and immediate use within the Local Area Network. The 24 port Fast Ethernet Switch is equipped with a full range of LEDs for instant error detection, networking monitoring and network troubleshooting.

Switch type	Unmanaged
Quality of Service (QoS) support	Y
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Power connector	DC-in jack
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3z
10G support	N
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Cable types supported	Cat5
Full duplex	Y
Flow control support	Y
Rate limiting	Y
Auto MDI/MDI-X	Y
Auto-negotiation	Y
MAC address auto-learning supported	Y
MAC address table	8192 entries
Switching capacity	4.8 Gbit/s
Store-and-forward	Y
Packet buffer memory	0.16 MB
Switching protocols	CSMA, CD
Rack mounting	Y
Product colour	Black
LED indicators	Activity, Link, Power
Country of origin	China
Certification	FCC Class A, CE, RoHS
Maximum cable length	100 m
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	10 W
Power over Ethernet (PoE)	N
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Width	140 mm
Depth	440 mm
Height	44 mm
Weight	1.45 kg
Cables included	AC
Quick start guide	Y
Rack mount kit	Y
Package width	224 mm
Package depth	486 mm
Package height	77 mm
Package weight	2.13 kg
Master (outer) case width	405 mm
Master (outer) case length	500 mm
Master (outer) case height	240 mm
Harmonized System (HS) code	85176990
Master (outer) case gross weight	11.6 kg
