Level One LevelOne Switch 8x GE IGP-0802 200W 8xPoE

Kods IGP-0802

Condition: Jauns

Vairāk informācijas

The LevelOne IGP-0802 is 10/100/1000M industrial 8 port high power POE switch is equipped with 8 port 30Watts PSE. It is designed for 48-56VDC input sources, especially for IP surveillance, traffic monitoring and for a broad range of applications. It can be used as a stand-alone device for buses, trucks, and other vehicles for Surveillance purposes. It is being rigorously tested for your Security, Transportation and Telco application.

Key Features
- PoE ports can support the IEEE 802.3at standard and power up 30W devices
- 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
- 40°C to 75°C operating temperature range
- Provides DIN-rail, wall or desktop mounting
- IP30 metal case

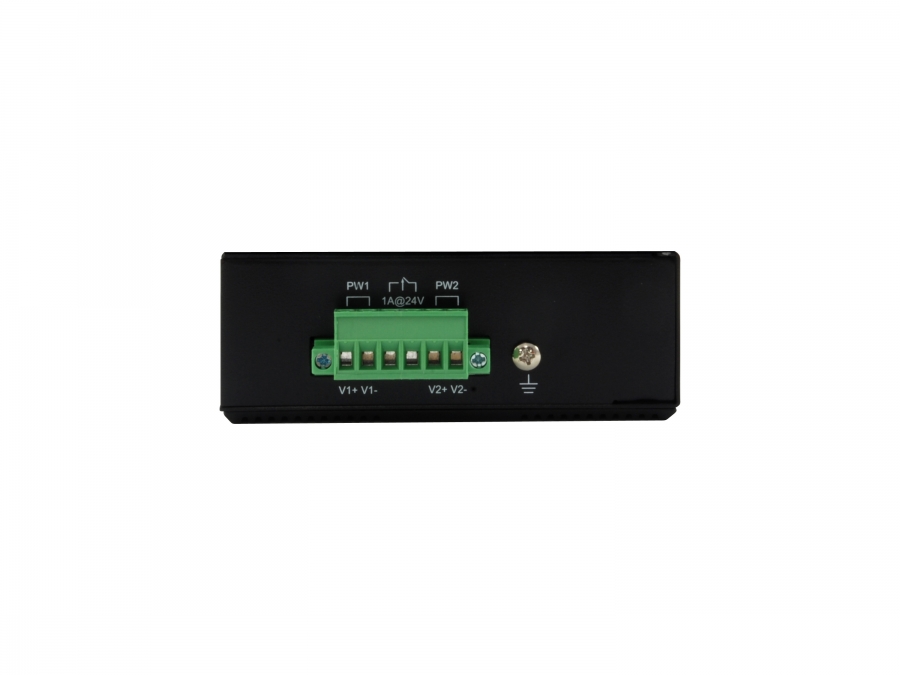

- Redundant power inputs with Terminal Block

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex	Jā
Auto MDI/MDI-X	Jā
MAC address table	8000 entries
Switching capacity	16 Gbit/s
Store-and-forward	Jā
Jumbo frames support	Jā
Jumbo frames	9000
Product colour	Black
Housing material	Metal
LED indicators	PoE, Power
International Protection (IP) code	IP30
Wall mountable	Jā
DIN rail mounting	Jā
Country of origin	Taiwan
Safety	EN60950-1, EN60068
Certification	FCC,CE,VCCI
Plug and Play	Jā
Mean time between failures (MTBF)	510304 h
Redundant power supply (RPS) support	Jā
DC input voltage	48 - 56 V
Power over Ethernet (PoE)	Jā
Power over Ethernet plus (PoE+) ports quantity	8
Power over Ethernet (PoE) voltage range	48 - 56 V
Power over Ethernet (PoE) power per port	36 W
Total Power over Ethernet (PoE) budget	200 W
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95%
Width	105 mm
Depth	36.2 mm
Height	142 mm
Weight	525 g
Manual	Jā
Wall mounting kit	Jā
Terminal block included	Jā
Package type	Box
Package width	165 mm
Package depth	65 mm
Package height	215 mm
Package weight	730 g
Master (outer) case width	350 mm
Master (outer) case length	240 mm
Master (outer) case height	570 mm
Harmonized System (HS) code	85176990
Master (outer) case gross weight	12.6 kg
Products per master (outer) case	16 pc(s)
Terminal block port	Jā
