Delock HDMI Ethernet Extender Set by TCPIP

DELOCK

65494

Jauns

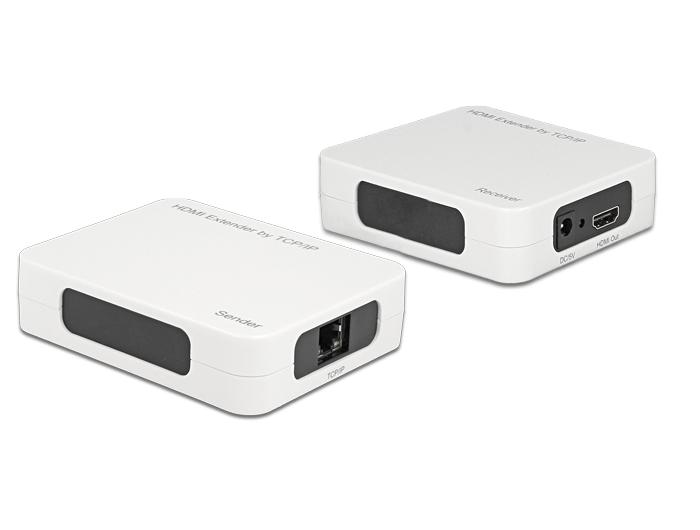

This Delock HDMI Extender Set allows HDMI signals to be transmitted over a TCP/IP network. The transmitter and receiver can be connected with a network cable of up to 100 meters. Alternatively both devices can be connected via a switch, the distance between the HDMI source and the display device can then be 200 m.

More details

Description:
This Delock HDMI Extender Set allows HDMI signals to be transmitted over a TCP/IP network. The transmitter and receiver can be connected with a network cable of up to 100 meters. Alternatively both devices can be connected via a switch, the distance between the HDMI source and the display device can then be 200 m.

Specification:
• Connectors (Sender and Receiver):
1 x RJ45 female
1 x HDMI-A female

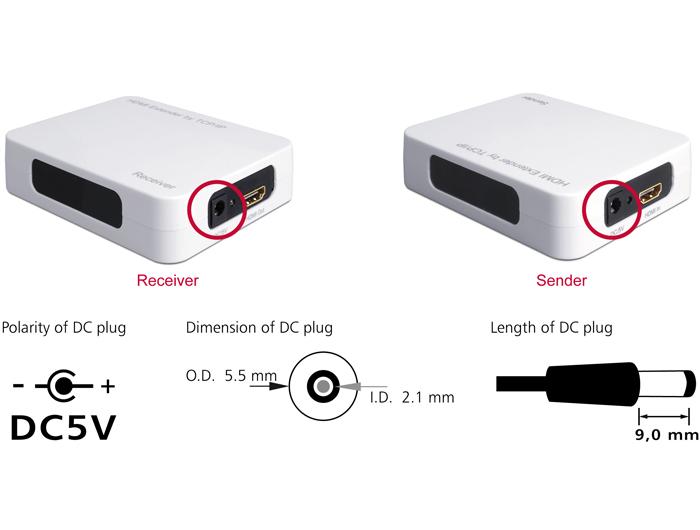

1 x DC Power 5 V
• Following TCP/IP standard (Broadcasting)
• M-JPEG encoding / decoding up to 1080p / 60 Hz
• Supported resolutions:
480i / 480p / 576i / 576p / 720p / 1080i / 1080p
• Supports EDID und HDCP
• Video bandwidth up to 165 MHz / 1.65 Gb/s
• Optional: simultaneous operation of multiple receivers
• Power consumption: max. 2.5 W
• Dimensions (LxWxH): ca. 103 x 84 x 25 mm

System requirements:
• One HMDI cable to the HDMI source and display
• One Cat.5e or Cat.6 network cable
• Switch with VLAN or IGMP Snooping

Package content:
• HDMI Extender TCP/IP (Sender)
• HDMI Extender TCP/IP (Receiver)

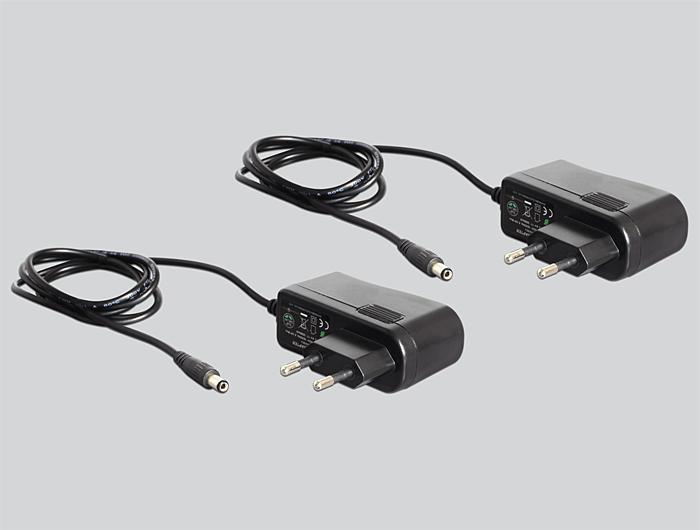

• 2 x power supply
• User manual
