Delock Converter HDMI 3G-SDI

DELOCK

93238

Jauns

This Delock converter can be used to convert an HDMI signal to an HD- or 3G-SDI signal. You can connect e. g. a camera with HDMI output to an HD-SDI recorder. The SDI signal is transmitted via a conventional 75 Ohm coaxial cable with BNC connectors.

More details

Description:
This Delock converter can be used to convert an HDMI signal to an HD- or 3G-SDI signal. You can connect e. g. a camera with HDMI output to an HD-SDI recorder. The SDI signal is transmitted via a conventional 75 Ohm coaxial cable with BNC connectors.

Specification:
• Connector:

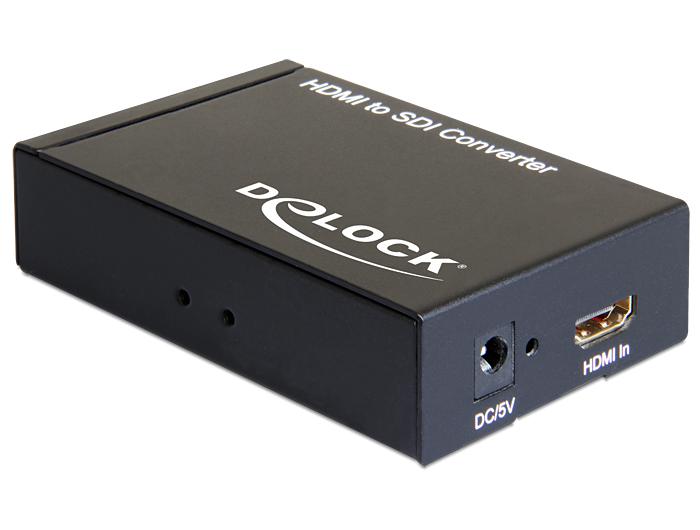

Input: 1 x HDMI-A female

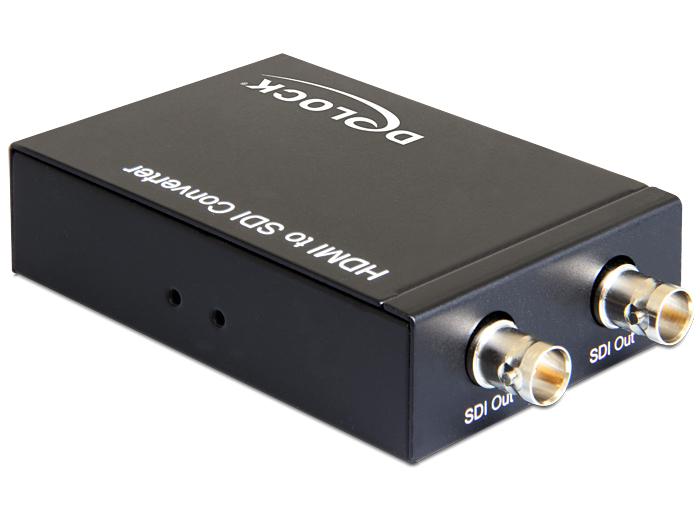

Output: 2 x BNC female (2 x SDI, parallel)
• Chipset: GV7600
• Supports 3G-SDI Level A
• Supported resolution:
SD 480i, 525i and 625i
HD 720p 24, 25, 30, 50 and 60 Hz
HD 1080i 50, 60 Hz
HD 1080p 24, 25, 30, 50 and 60 Hz
• Supported data rate: 270 Mb/s ~ 2.97 Gb/s
• Supports 8 channels of 48 kHz PCM audio
• Robust metal housing
• Power consumption: max. 4 W
• Dimensions (LxWxH): ca. 100 x 70 x 25 mm

System requirements:

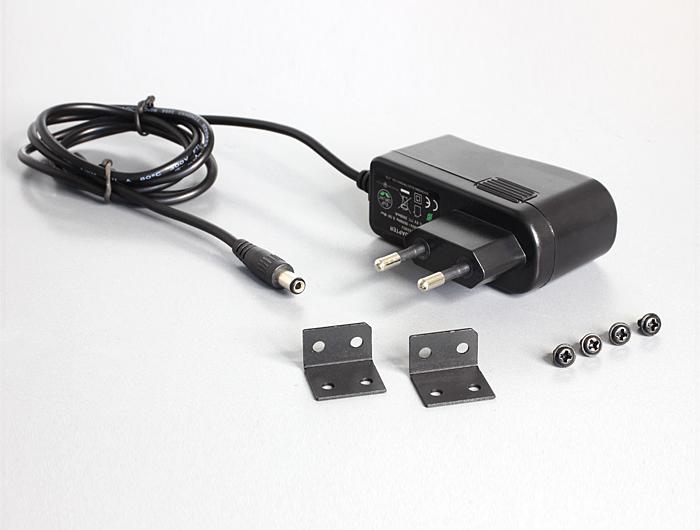

Package content:
• HDMI > 3G-SDI Converter
• Mounting brackets and screws

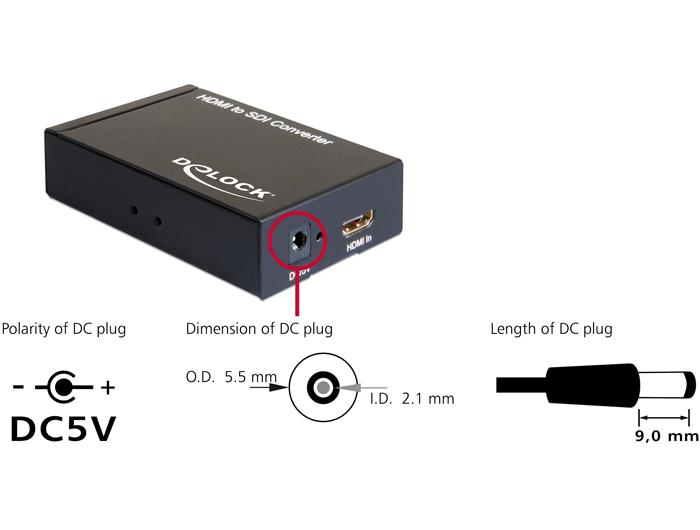

• Power supply
