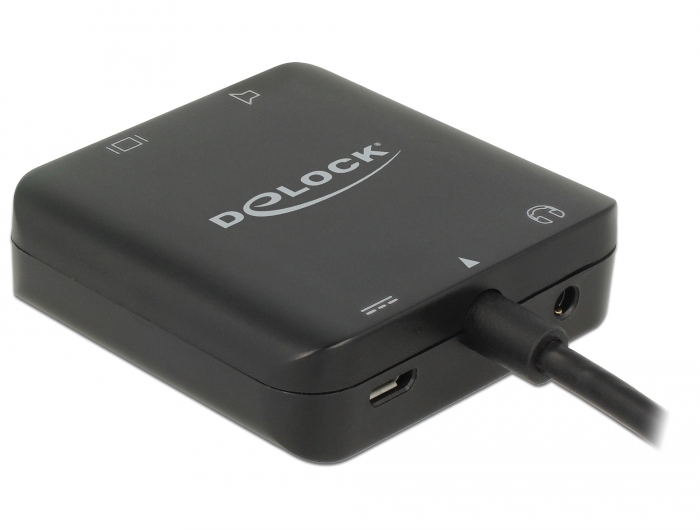

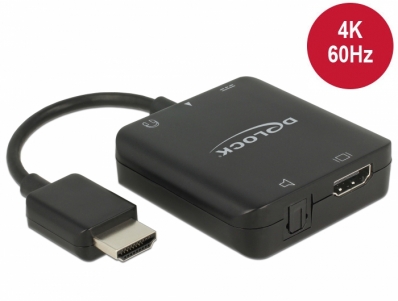

Delock HDMI Audio Extractor 4K 60 Hz compact

DELOCK

63276

Jauns

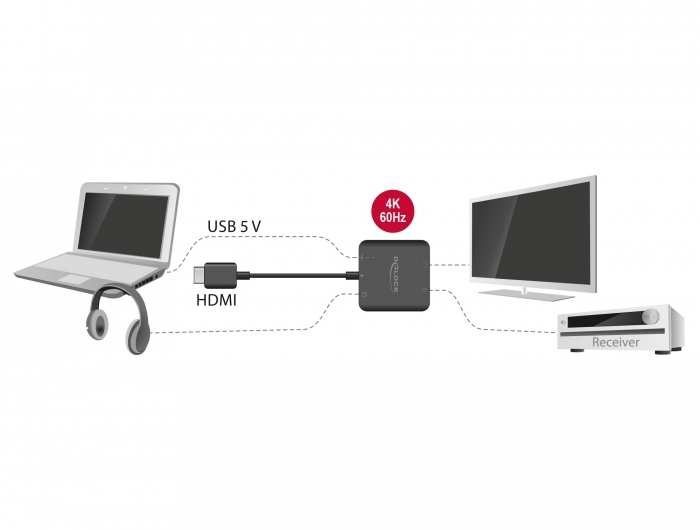

This adapter by Delock can be used to extract the audio signal from an HDMI transmission. While the video signal is displayed on a TV or monitor, the audio signal can be sent digital (S/PDIF) or analogue (stereo) to other devices, such as headphones or a surround receiver.
System requirements:
• A free HDMI-A female
• A free USB Type-A female port
Specification:
• Connectors:
  Input:
    1 x HDMI-A 19 pin male
    1 x USB Type Micro-B female (5 V power supply)
  Output:
    1 x HDMI-A 19 pin female
    1 x 3.5 mm 3 pin stereo jack female (audio)
    1 x TOSLINK female S/PDIF
• High Speed HDMI, 3D and HDCP 1.4 / HDCP 2.2
• Automatic switching to stereo (2.0) when using the stereo jack and
  automatic muting of the digital output
• Resolution up to 3840 x 2160 @ 60 Hz
• Video bandwidth up to 600 MHz / 6 Gbps, max. 18 Gb/s
• Supports all common 2.0 and 5.1 audio formats: LPCM, Dolby Digital,
  DTS Audio
• Supported sample rates: 16 / 20 / 24 bit, 32 / 44.1 / 48 / 88.2 / 96 kHz
  (depending on the system and the connected devices)
• HDMI audio routed to the output (pass-through)
• Power consumption: max. 2 W
Package content:
• HDMI Audio Extractor

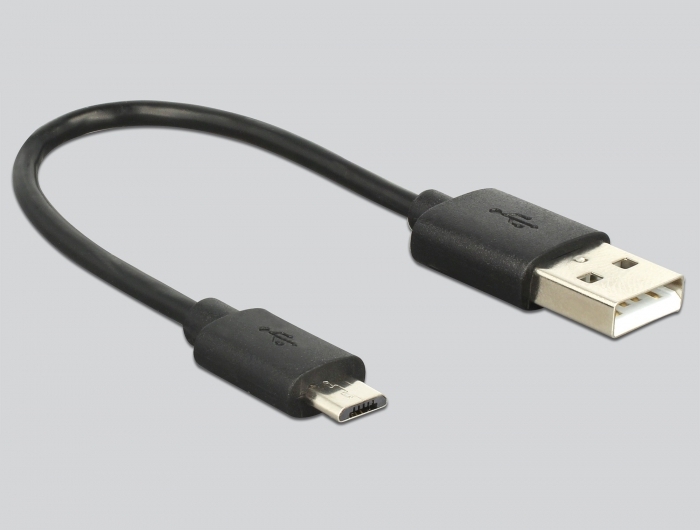

• USB Type-A to Type Micro-B cable, length ca. 30 cm
• User manual
Data sheet:
http://www.delock.de/produkt/63276/pdf.html?sprache=en
