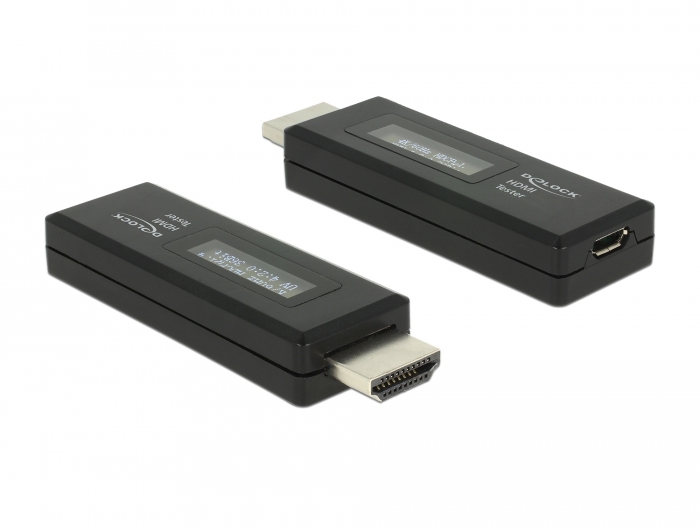

Delock HDMI Tester for EDID information with OLED display

DELOCK

63327

Jauns

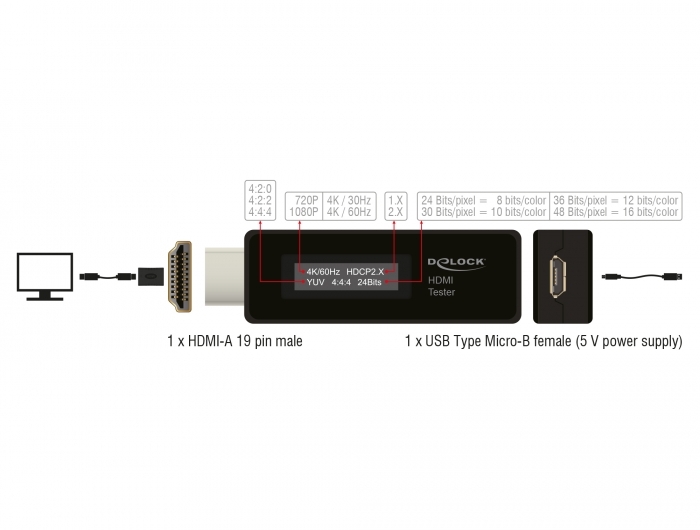

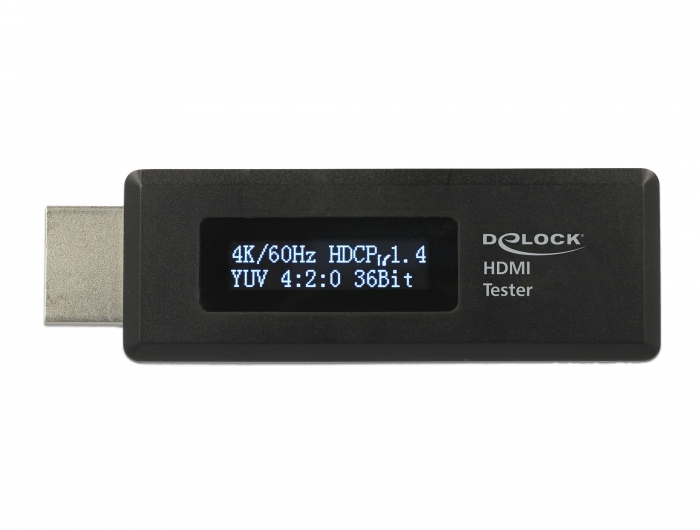

This HDMI tester with OLED display by Delock is used to read the EDID data stored in the monitor. The OLED display shows the maximum resolution, the refresh rate, the HDCP status and the color depth of the connected device.
System requirements:
• Power source with a free USB Type-A female port
Specification:
• Connectors:
  1 x HDMI-A 19 pin male
  1 x USB Type Micro-B female (5 V power supply)
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected
  hardware)
• Double row OLED display
• Plastic housing
• Colour: black
• Dimensions incl. connector (LxWxH): ca. 70.5 x 22.0 x 11.0 mm
Package content:
• HDMI EDID Tester
• USB Type-A to Type Micro-B cable, length ca. 80 cm
• HDMI extension cable, length ca. 22 cm
• HDMI coupler
• User manual
Data sheet:
http://www.delock.de/produkt/63327/pdf.html?sprache=en
