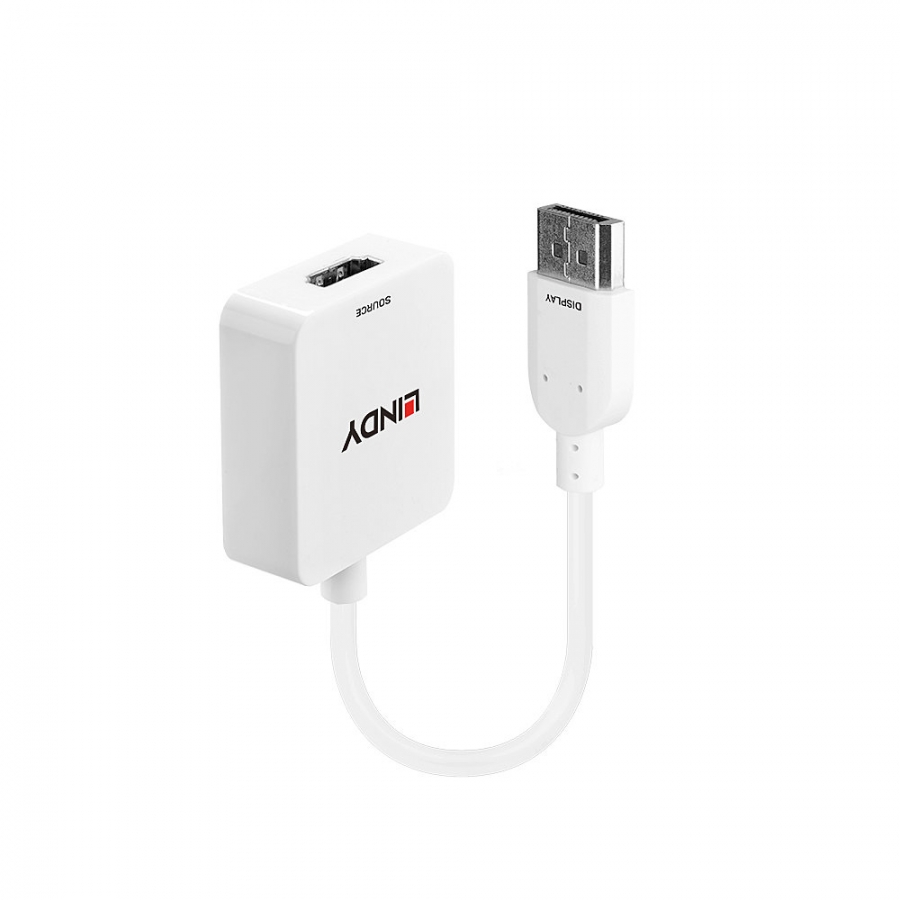

HDMI to DisplayPort Converter

Lindy

LIN38146

Jauns

Specifications

  • AV Interface: HDMI to DisplayPort
  • Interface Standard: HDMI 1.4 / DisplayPort 1.1
  • Supported Bandwidth: 10.2Gbps
  • Maximum Input Resolution: 3840x2160@30Hz 4:4:4 8bit
  • Maximum  Output Resolution: 3840x2160@30Hz 4:4:4 8bit
  • Chipset: STDP2600
  • HDCP Support: HDCP 1.3
  • Supported Audio: Supports 7.1 LPCM digital audio up to 192kHz 24bit
  • Separate Audio Ports: -
  • Special Features: -



Connectors

  • Input: HDMI Type A Female
  • Output: DisplayPort Male



Physical properties

  • Dimensions (approx.) WxDxH:
    • 40x45x15mm (1.57x1.77x0.59in)
    • 20.5x16.5x3.5mm (0.81x0.65x0.14in) / DP
  • Cable Length: 150mm (5.91in)
  • Housing Material: PVC
  • Jacket Material: PVC
  • Jacket Diameter: 5mm (0.2in)
  • Minimum Bend Radius: 50mm (1.97in)
  • Net Weight: 0.028kg (0.06lb)
  • Operating Temperature: -20°C - 85°C (-4°F - 185°F)
  • Storage Temperature: -20°C - 85°C (-4°F - 185°F)
  • Humidity: 20 - 95% RH (non-condensing)
  • Colour: White



Miscellaneous

  • Packaging Type: Polybag
  • Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
  • Gross Weight: 0.032kg (0.07lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH



Package Contents

  • HDMI to DisplayPort Converter



Purchasing Information

  • No.: 38146
  • EAN: 4002888381468
