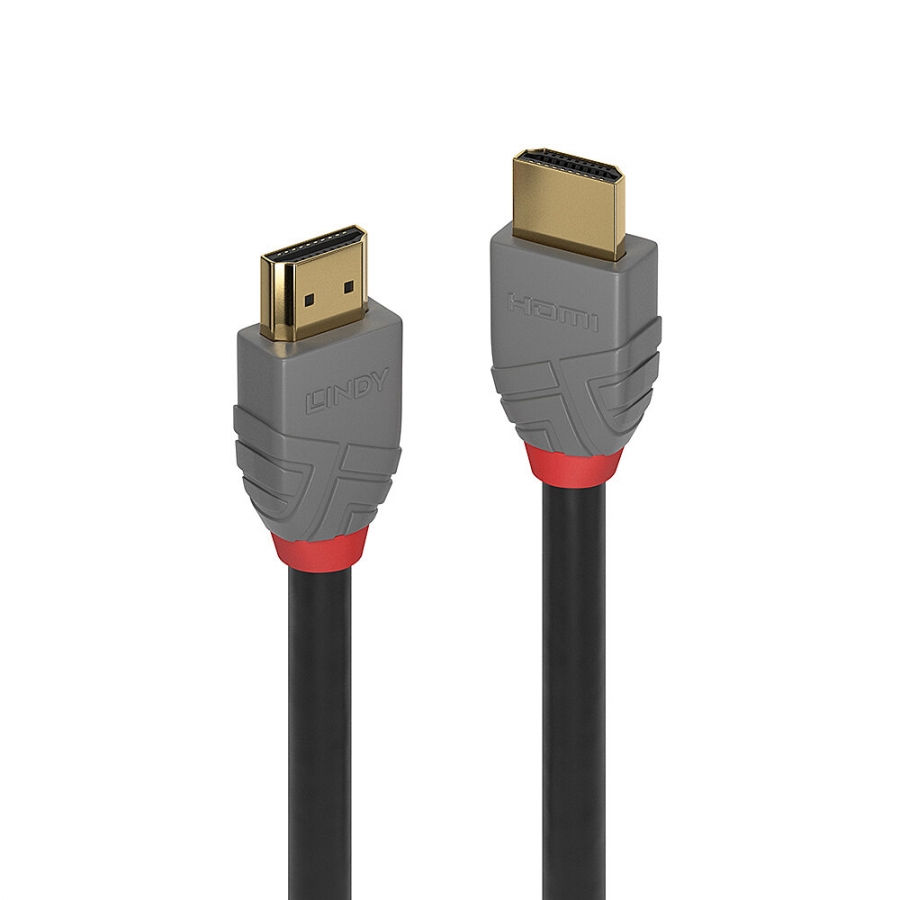

Lindy 2m Ultra High Speed HDMI Cable, Anthra Line

Lindy

LIN36953

Jauns

Connectors

  • Connector A: HDMI Type A Male
  • Connector B: HDMI Type A Male
  • Housing Material: PVC
  • Connector Plating: 24K Gold 15µm
  • Pin Construction: Phosphor Copper
  • Pin Plating: 24K Gold 3µm
  • Dimensions (approx.) WxDxH: 20x34.2x10.9mm (0.79x1.35x0.43in)



Cable Construction

  • Length: 2m (6.56ft)
  • Standard: Certified Ultra High Speed HDMI
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 7.3mm (0.29in)
  • Jacket Material: PVC
  • Conductor Material: Copper
  • Conductor Gauge: 30AWG
  • Shielding: Aluminium Magnesium Alloy Braid, 85%



Specifications

  • Supported Bandwidth: 48Gbps
  • Maximum Resolution: 10240x4320@120Hz 4:2:0 12bit
  • Nominal Attenuation:

≤ −5 dB from 0 GHz to 1 GHz

−6.5 dB @ 2 GHz

−9.2dB @ 3 GHz

−16.5 dB @ 6 GHz

−29 dB @ 12 GHz

  • Minimum Bend Radius: 80mm (3.15in)
  • Operating Temperature: 0°C - 50°C (32°F - 122°F)
  • Storage Temperature: 0°C - 50°C (32°F - 122°F)
  • ATC Approved: Yes



Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Certificated: RoHS, REACH, UL, ATC



Purchasing Information

  • No.: 36953
  • EAN: 4002888369534



This product is also available in other lengths:

  • 36951 - 0.5m (1.64ft)
  • 36952 - 1m (3.28ft)
  • 36953 - 2m (6.56ft)
  • 36954 - 3m (9.84ft)
